Bosch NTV-3503-F02L
POSMarket SKU: Z15360
IP turret indoor EVA camera with tamper and motion detection, 5MP 1080p resolution, 100deg; or 120° lens also with built-in IR illuminator.
Product Overview

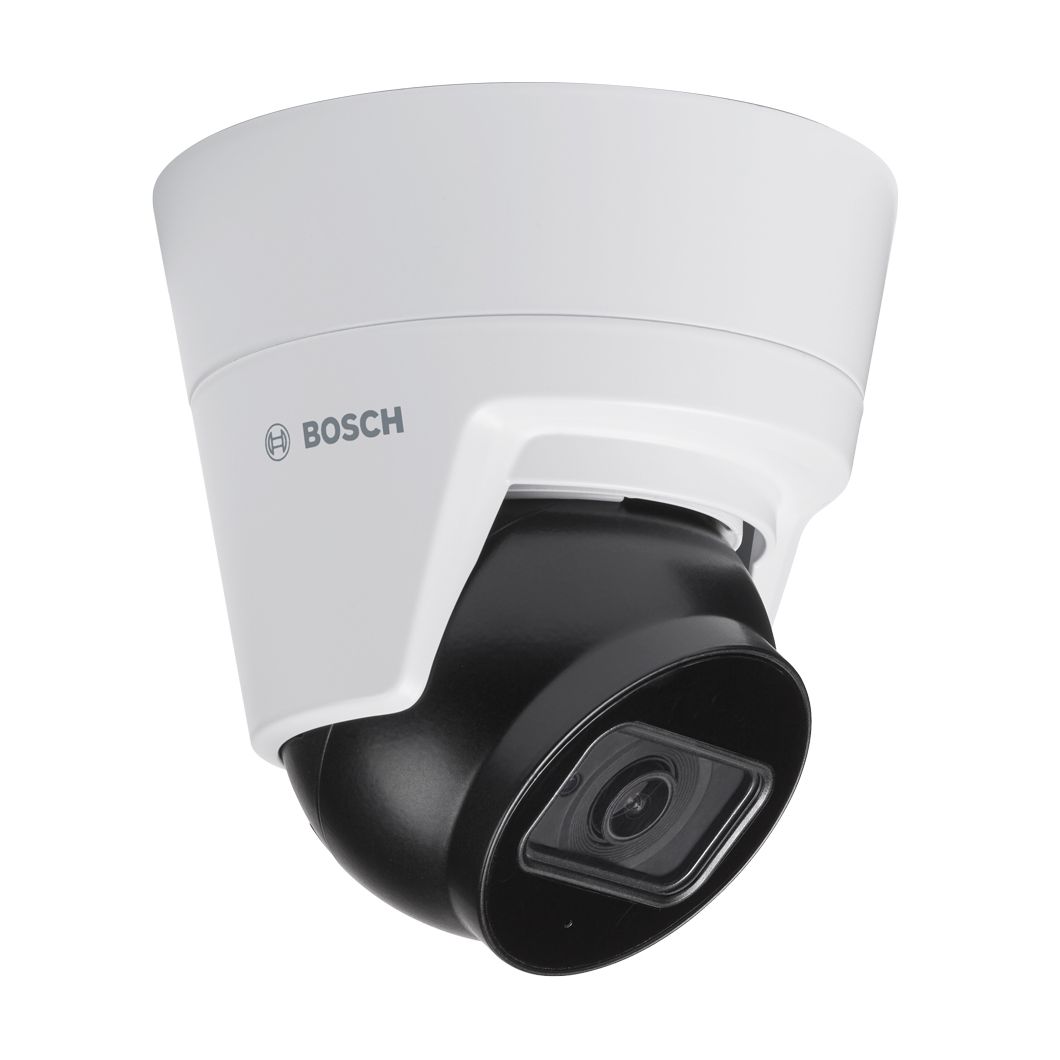

The Flexidome 5MP indoor turret camera is with 2.3 mm/ 2.8 mm fixed lens. Incorporating DORI technology, the turret can detect, observe, recognise and identify objects and with its small formfactor can be discreetly placed in many indoor applications offering a seamless installation. The 3000i range also includes built-in essential video analytics (EVA) technology to trigger relevant alerts and allows users to quickly retrieve data. This range is also compatible with Bosch's Forensic Search feature at no additional cost, making it one of the most affordable, high analytic cameras on the market. The camera's compact and minimalist design combined with the ample mounting accessories available, offers a highly flexible and simple installation for users.
FEATURES
- 1080p and 5MP resolutions
- Built-in Essential Video Analytics to trigger relevant alerts and quickly retrieve data
- Fully configurable H.265 multi-streaming
- High Dynamic Range (120 dB) for challenging bright and dark scenes
- Built-in IR illuminator with 15 m (49 ft) viewing distance
Product Specifications
| FLEXIDOME IP turret 3000i IR | |
| NTV-3503-F02L | |
| General | |
| Built-in IR (ft) | 49 ft |
| Built-in IR (m) | 15 m |
| Ethernet type | 10/100BASE-T |
| Field of View wide | 94 - 118 ° |
| Frame rate (fps) | 1 - 25 fps |
| Impact protection (EN 50102) | IK08 |
| Internal storage | Memory card micro SD |
| IP rating | IP42 |
| Lens focal length (mm) | 2.30 - 2.80 mm |
| Minimum illumination in color (lx) | 0.50 lx |
| Minimum illumination in monochrome (lx) | 0.08 lx |
| Operating temperature | -20 - 50 °C |
| Operating temperature | -4 - 122 °F |
| Pre-record interval (s) | 1 - 5 s |
| Sensor type | 1/2.9 inch CMOS |
| Video compression | H.264 (ISO/IEC 14496-10) |
| Mechanical | |
| Dimensions | (Ø x H) 122 x 129 mm (4.8 x 5.1 in) |
| Weight | (approx.) 576 g (1.3 lbs) |
| Mounting | Surface mount |
| Color | White (RAL9003) |
| 3-axis adjustment (pan/tilt/rotation) | Pan: 0°to 350° Tilt: 0°to 78° Roll: 0°to 360° |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| NTV-3503-F02L | 5MP Indoor Turret 3000i Camera, EVA Forensic Search, 120 Deg, IK08, 15m IR, 2.3mm | $619.31 | Add to Cart |
Product Accessories
| Filename | Size | ||
|---|---|---|---|
 |
FLEXIDOME IP turret 3000i IR Datasheet.pdf | 3MB | Download |
|
FLEXIDOME IP turret 3000i IR Quick Instalaltion Giude.pdf | 782KB | Download |
|
FLEXIDOME IP turret 3000i IR User Manual.pdf | 536KB | Download |
