Dahua IPC-HDW2831T-ZS-S2

$300.70 (incl. GST)

POSMarket SKU: Z18279

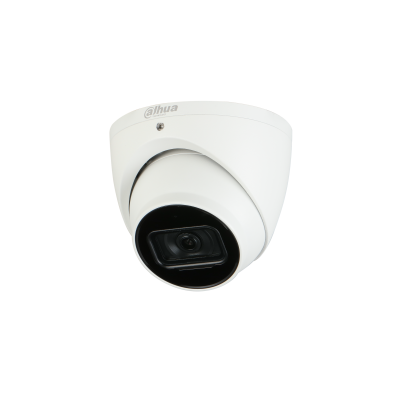

DH-IPC-HDW2831TP-ZS-S2: 8MP Lite IR Vari-focal Eyeball Network Camera,PAL

8MP Lite IR Vari-focal Eyeball Nework Camera

Product Rating
Product Overview
With upgraded H.265 encoding technology, Dahua Lite series network camera has efficient video encoding capacity, which saves bandwidth and storage space. This camera adopts the latest starlight technology and displays better color image in the condition of low illumination. It supports SD card storage, dust-proof function, waterproof function and vandal-proof function, complying with the standards of IP67 and IK10 (Supported by some select models).

Features

Smart Codec
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

WDR
With advanced Wide Dynamic Range (WDR) technology, Dahua network camera provides clear details in the environment of strong brightness contrast. The bright and dark area can get clear video even in high brightness environment or with backlight shadow.

Starlight
Dahua Starlight technology mainly applies to the environment of low illuminance, and it can provide clear colorful video. Even in the environment of ultra-low illuminance, the technology can guarantee the good image effect.

IVS
With advanced video algorithm, Dahua IVS technology supports intelligent functions, such as tripwire and intrusion.
Protection (IP67, wide voltage)

IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes.

Wide voltage: The camera allows +/-30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Product Specifications
IPC-HDW2831T-ZS-S2
Camera
Image Sensor 1/2.7" 8Megapixel progressive CMOS
Effective Pixels 3840 (H) x 2160 (V)
ROM 128 MB
RAM 256 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s - 1/100,000 s
Min. Illumination 0.008 Lux@F1.5
IR Distance 40 m (131.23 ft)
IR On/Off Control Auto/Manual
IR LEDs Number 2
Pan/Tilt/Rotation Range Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°
Lens
Lens Type Motorized vari-focal
Mount Type φ14
Focal Length 2.7 mm - 13.5 mm
Max. Aperture F1.5
Field of View Pan: 113°–31°; Tilt: 58°–17°; Diagonal: 138°–36°
Iris Type Fixed
Close Focus Distance 0.8 m–0.8 m (2.62 ft–2.62 ft)
Smart Event
General IVS Analytics Tripwire; intrusion
Video
Video Compression H.265; H.264; H.264B; MJPEG
Smart Codec Yes
Video Frame Rate Main stream: 3840 x 2160 (1 fps - 15 fps) 2688 x 1520 (1 fps - 25/30 fps)

Sub stream: 704 x 576 (1 fps - 25 fps) 704 x 480 (1 fps - 30 fps)
Stream Capability 2 streams
Resolution 3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2592 × 1944 (2592 × 1944); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 Kbps - 8192 Kbps
H.265: 12 Kbps - 8192 Kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart IR Yes
Image Rotation 0°/90°/180°/270° (Supports 90°/270° with 2688 ×1520 resolution and lower.)
MirrorYes
Privacy Masking 4 areas
Network
Network RJ-45 (10/100 Base-T)
Protocol IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host 20
Edge Storage Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS
Browser IE
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Phone IOS; Android
Certifications CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power
Power Supply 12V DC/PoE (802.3af)
Power Consumption < 7.6W
Environment
Operating Conditions –30°C to +60°C (–22°F to +140°F)/less than ≤ 95% RH
Storage Temperature –40°C to +60°C (–40°F to +140°F)
Protection IP67
Structure
Casing Metal
Dimensions 108.3 mm× Φ122 mm (4.26″ × Φ1.80″)
Net Weight 0.69 kg (1.52 lb)
Gross Weight 0.88 kg (1.94 lb)
ModelDescriptionPriceStock
DH-IPC-HDW2831TP-ZS-S2 8MP Lite IR Vari-focal Eyeball Network Camera,PAL $300.70
Call
Add to Cart
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document IPCHDW2831TZSS2 Datasheet.pdf 453KB Download
PDF Document Eyeball Network Camera Quick Start Guide.pdf 800KB Download
