Dahua IPC-HDW3641TMP-AS-0280B

from $158.81 (incl. GST)

POSMarket SKU: Z18284

This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

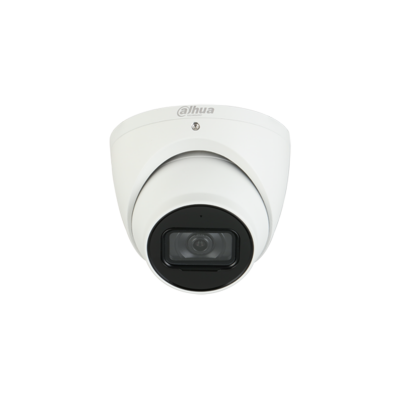

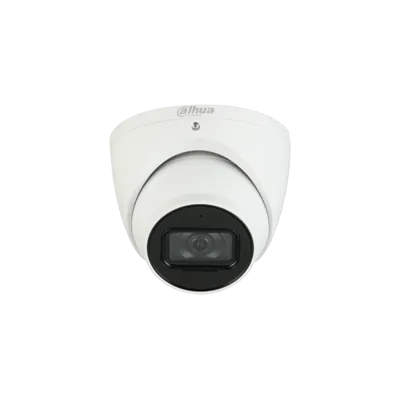

6MP IR Fixed focal Eyeball WizSense Network Camera

Product Rating
Product Overview
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

With advanced deep learning algorithm, Dahua WizSense 3 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.

The Dahua 6MP SMD enabled Wizsense Network Turret comes with the new Wizsense technology. Wizsense is a deep learning algorithm which recognises humans and vehicles with high accuracy. Combine this with a great nighttime image and you get a great camera.

Features
  • 1/2.7" progressive scan CMOS, low illuminance, high image definition
  • Outputs max. 3072 × 1728 @20 fps,and supports 4MP(2688 x 1520)@30fps
  • H.265 codec, high compression rate, low bit rate
  • Built-in IR LED, max. IR distance: 50 m
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent detection: Tripwire, intrusion
  • Supports max. 256 G Micro SD card, built-in Mic
  • 12V DC/PoE power supply
  • IP67 protection
  • SMD Plus
Product Specifications
IPC-HDW3641TM-AS
Camera
Image Sensor 1/2.7" 6MP progressive scan CMOS
Max. Resolution 3072(H) x 1728(V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3 s - 1/100000 s
Min. Illumination 0.005 Lux @F1.6
S/N Ratio ＞56 dB
Illumination Distance 50 m (164.0 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (IR LED)
Pan/Tilt/Rotation Range Pan:0° – 360°; Tilt: 0° – 78°; Rotation: 0° – 360°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture F1.6
Field of View 2.8 mm: Horizontal 99° × Vertical 53° × Diagonal 115°
3.6mm: Horizontal 80° × Vertical 43° × Diagonal 94°
Iris Type Auto
Close Focus Distance 2.8 mm: 0.9 m (3.0 ft)
3.6 mm: 1.6 m (5.3 ft)
Professional, intelligent
IVS (Perimeter Protection) Tripwire; intrusion (Recognition of human and vehicle)
Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video Compression H.265, H.264, H.264B, H.264H, MJPEG (only supported by sub stream)
Smart Codec Smart H.265+/ Smart H.264+
Video Frame Rate Main stream (3072 × 1728@1–20 fps/ 2688 × 1520@1–25/30 fps)

Sub stream (704 × 576@1–25 fps/ 704 × 480@1–30 fps)

Third stream (1920 × 1080@1–25/30 fps)
Stream Capability 3 streams
Resolution 3072 × 1728; 2592 × 1944; 2688 × 1520; 2560 × 1440; 2304 ×1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); <br>VGA (640 × 480); CIF (354 × 288/354 ×240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 Kbps - 8192 Kbps
H.265: 19 Kbps - 8192 Kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation Yes
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support with 1080p resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; G.726; AAC; G.723
Alarm Event No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; intensity change; tripwire; intrusion; SMD
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Protocol IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Interoperability ONVIF (Profile S/Profile G/Profile T), CGI, Milstone, Genetec, P2P
User/Host 20 Users
Storage FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS
Browser IE: IE8 and later
Chrome
Firefox
Management Software Smart PSS, DSS, DMSS
Mobile Phone IOS; Android
Certification EN 55032
EN 61000-3-2
EN 61000-3-3
EN 55024
EN 50130-4
EN55035
Power
Power Supply 12V DC (+/- 30%), PoE (802.3af)
Power Consumption <7.2W
Environment
Operating Conditions -40°C to +60°C (-40°F to +140°F)/less than 95%
Storage Conditions -40° C to +60° C (-40° F to +140° F)
Protection Grade IP67
Structure
Casing Metal
Dimensions Φ106 mm × 93.6 mm (4.17” × 3.69”)
Net Weight 0.55 kg (1.21 lb)
Gross Weight 0.71 kg (1.57 lb)
ModelDescriptionPriceStock
DH-IPC-HDW3641TMP-AS-BLK 6MP IR Fixed focal Eyeball WizSense Network Camera (Black) $174.47
Call
 Add to Cart
DH-IPC-HDW3641TMP-AS-0280B 6MP IR Fixed focal Eyeball WizSense Network Camera $158.81
Call
 Add to Cart
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document IPCHDW3641TMAS Datasheet.pdf 416KB Download
PDF Document Eyeball Network Camera Quick Start Guide.pdf 983KB Download
