POSMarket SKU: Z18212

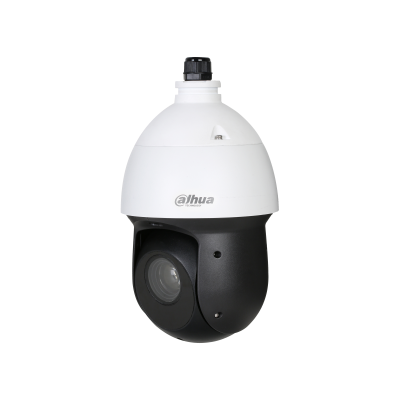

2MP 25x Starlight IR WizSense Network PTZ Camera
| SD49225XA-HNR | |
| Camera | |
| Image Sensor | 1/2.8" STARVISâ„¢ CMOS |
| Pixel | 2MP |
| Max. Resolution | 1920 (H) × 1080 (V) |
| ROM | 4GB |
| RAM | 1GB |
| Electronic Shutter Speed | 1/1 s - 1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination | Color: 0.005Lux@F1.6 B/W: 0.0005Lux@F1.6 0Lux@F1.6 (IR light on) |
| Illumination Distance | 100 m (328.08 ft) |
| Illuminator On/Off Control | Zoom Prio/Manual/SmartIR |
| Illuminator Number | 6 |
| Lens | |
| Focal Length | 4.8 mm - 120 mm |
| Max. Aperture | F1.6 - F4.4 |
| Field of View | H: 62.8°–2.6°; V: 33.2°–1.7°; D: 67.3°–3.9° |
| Optical Zoom | 25x |
| Focus Control | Auto/Semi-Auto/Manual |
| Close Focus Distance | 0.1 m–1.5 m (0.33 ft–4.92 ft) |
| Iris Control | Auto/Manual |
| DORI Distance Detect Observe Recognize Identify | 1613 m (5291.99 ft) 646 m (2119.42 ft) 323 m (1059.71 ft) 161 m (528.22 ft) |
| PTZ | |
| Pan/Tilt Range | Pan: 0°–360° (endless) Tilt: -15°–90° (auto flip 180°) |
| Manual Control Speed | Pan: 0.1°–200°/s Tilt: 0.1°–120°/s |
| Preset Speed | Pan: 240°/s Tilt: 200°/s |
| Presets | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Speed Adjustment | Support |
| Power-off Memory | Support |
| Idle Motion | Preset/Tour/Pattern/Scanning |
| Protocol | DH-SD Pelco-P/D (auto recognition) |
| General Intelligence | |
| Event Trigger | Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly |
| IVS | Object Abandoned/Missing |
| Artificial Intelligence | |
| Perimeter Protection | Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc. |
| SMD PLUS | Support |
| Face Detection | Support |
| Smart Capture | Support human, motor vehicle and non-motor vehicle image capture. |
| Video Compression | H.265+/H.265/H.264+/H.264/MJPEG (sub stream) |
| Streaming Capability | 3 streams |
| Resolution | 1080P(1920 × 1080); 1.3 M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
| Frame Rate | Main stream: 1080P/1.3 M/720P (1 – 50/60fps) Sub stream 1: D1/CIF (1–25/30fps) Sub stream 2: 1080P/1.3M/720P/D1/CIF (1 – 25/30fps) |
| Bit Rate Control | Variable/Constant |
| Bit Rate | H.265/H.264: 3 kbps – 20480 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Support |
| WDR | 120 dB |
| HLC | Support |
| White Balance | Auto/Indoor/Outdoor/Track/Manual/Sodium lamp/Natural light/Street lamp |
| Gain Control | Auto/Manual |
| Noise Reduction | Ultra DNR (2D/3D) |
| Motion Detection | Support |
| Region of Interest (RoI) | Support |
| Image Stabilization | Electronic |
| Defog | Electronic |
| Digital Zoom | 16x |
| Flip | 180° |
| Privacy Masking | Up to 24 areas, and up to 8 areas in the same view |
| Audio Compression | G.711a; G.711Mu; AAC; G.722.1; G.726; MPEG2-Layer2; G.729 |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | IPv4; IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMPv1/v2c/v3(MIB-2); ARP; RTCP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x |
| Interoperability | ONVIF Profile S&G&T; CGI |
| Streaming Method | Unicast/Multicast |
| User/Host | 19 |
| Storage | NAS; Local PC; Micro SD card (256G) |
| Browser | IE7 and newer versions Chrome 45 and newer versions Firefox 52 and earlier versions Safari (no version restrictions) |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | IOS/Android |
| Port | |
| Audio Input | 1 |
| Audio Output | 1 |
| Alarm I/O | 2/1 |
| Power | |
| Power Supply | DC 12V/3A PoE+ (802.3at) |
| Power Consumption | 13W 22W (IR on) |
| Environment | |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Operating Humidity | ≤95% |
| Protection | IP66; TVS 6000V lightning proof; Surge protection |
| Structure | |
| Dimensions | Φ160 mm × 295 mm (6.30" × 11.61") |
| Net Weight | 3 kg (6.61 lb) |
| Gross Weight | 4.8kg (10.58lb) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| DH-SD49225XA-HNR | 2MP 25x Starlight IR WizSense Network PTZCamera, WDR, PAL | $574.75 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
Network Speed Dome PTZ Camera Installation Manual.pdf | 579KB | Download |
|
SD49225XAHNR Installation Guide.pdf | 1MB | Download |
|
DHSD49225XAHNR Datasheet.pdf | 871KB | Download |
