Video | |
Imaging Device | 1/1.7" 12M CMOS |
Resolution | Double panorama: 2560x1280, 1920x960, 1280x640, 704x352, 640x320 Single panorama: 2560x640, 1920x480, 1280x320, 704x176, 640x160 Quad view: 2944x2208, 2560x1920, 2048x1536, 1600x1200, 1280x960, 1024x768, 800x600, 704x576, 640x480 |
Max. Framerate | H.265/H.264: Max. 20fps@4000x3000, 20fps@2992x2992(60Hz/50Hz) MJPEG: Max. 15fps(60Hz/50Hz) |
Min. Illumination | Color: 0.3Lux(F2.2, 1/30sec) BW : 0Lux(IR LED on) |
Video Out | CVBS : 1.0 Vp-p /75Ω composite, 714x480(N), 702x576(P), for Installation |
Lens | |
Focal Length (Zoom Ratio) | 2.1mm fixed focal |
Max. Aperture Ratio | F2.2 |
Angular Field of View | H: 180° / V: 180° / D: 180° |
Min. Object Distance | 0.5m(1.64ft) |
Focus Control | Simple focus |
Operational | |
Camera Title | Displayed up to 60 characters |
Day & Night | Auto(ICR) |
Backlight Compensation | BLC, WDR |
Wide Dynamic Range | 120dB |
Digital Noise Reduction | SSNR |
Defog | Support |
Motion Detection | 8ea, 8point polygonal zones |
Privacy Masking | 8ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White |
Gain Control | Low / Middle / High |
White Balance | ATW / AWC / Manual / Indoor / Outdoor |
Electronic Shutter Speed | Minimum / Maximum / Anti flicker |
Video Rotation | Flip, Mirror |
Analytics | Defocus detection, Motion detection, Appear/Disappear, Enter/Exit, Tampering, Virtual line, Audio detection |
Business Intelligence | People counting, Heatmap |
Alarm I/O | Input 1ea / Output 1ea |
Alarm Triggers | Analytics, Network disconnect, Alarm input |
Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output |
Audio In | Selectable(mic in/line in/built-in mic) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
Audio Out | Line out, Max.output level: 1Vrms |
IR Viewable Length | 15m(49.21ft) |
Model | Description | Price | Stock | |
---|---|---|---|---|

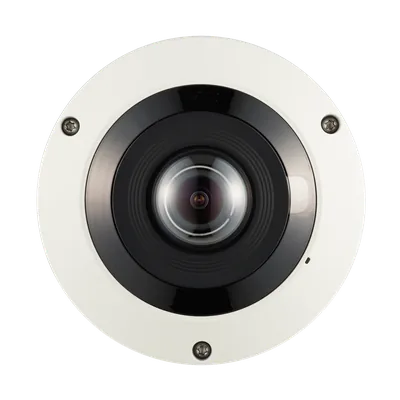

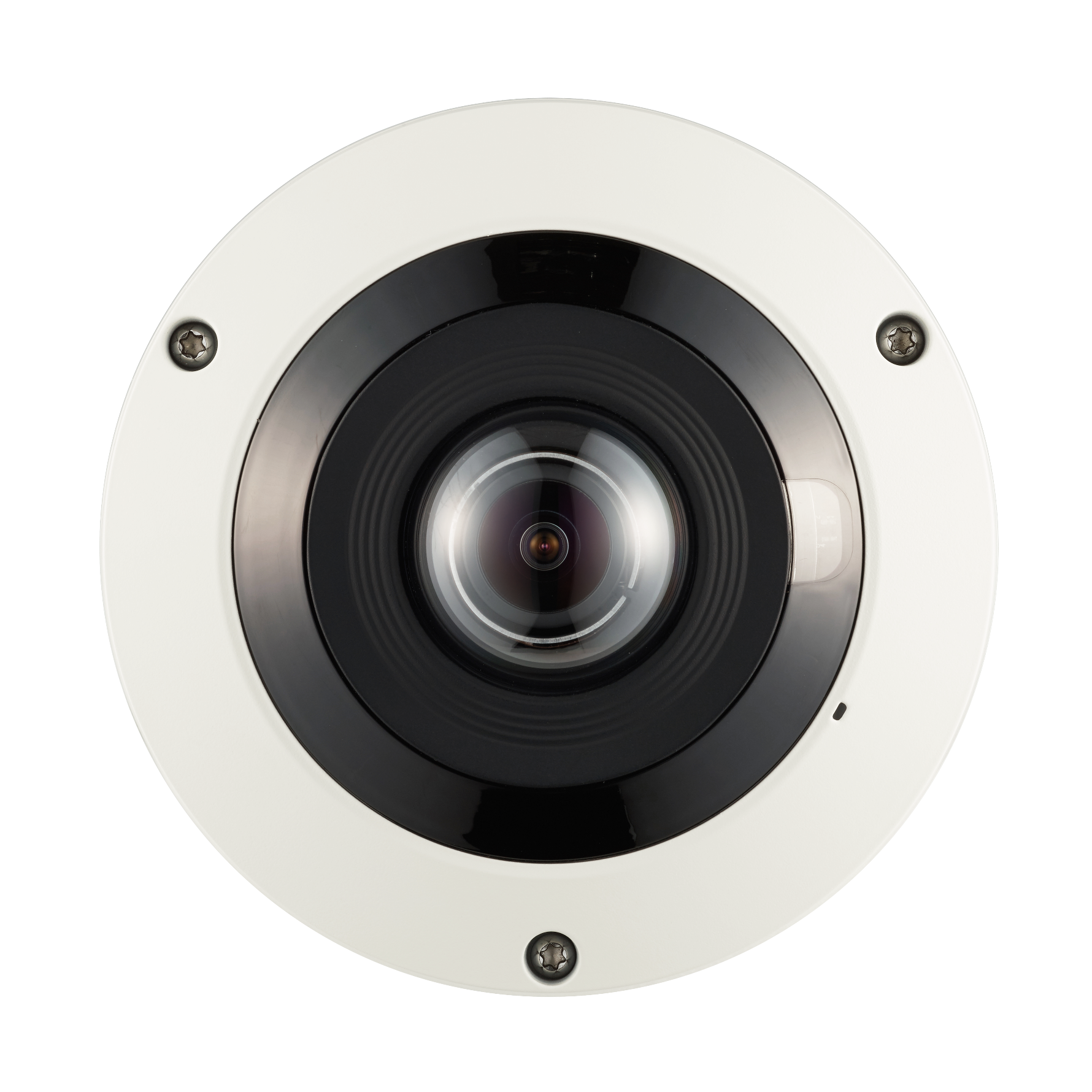

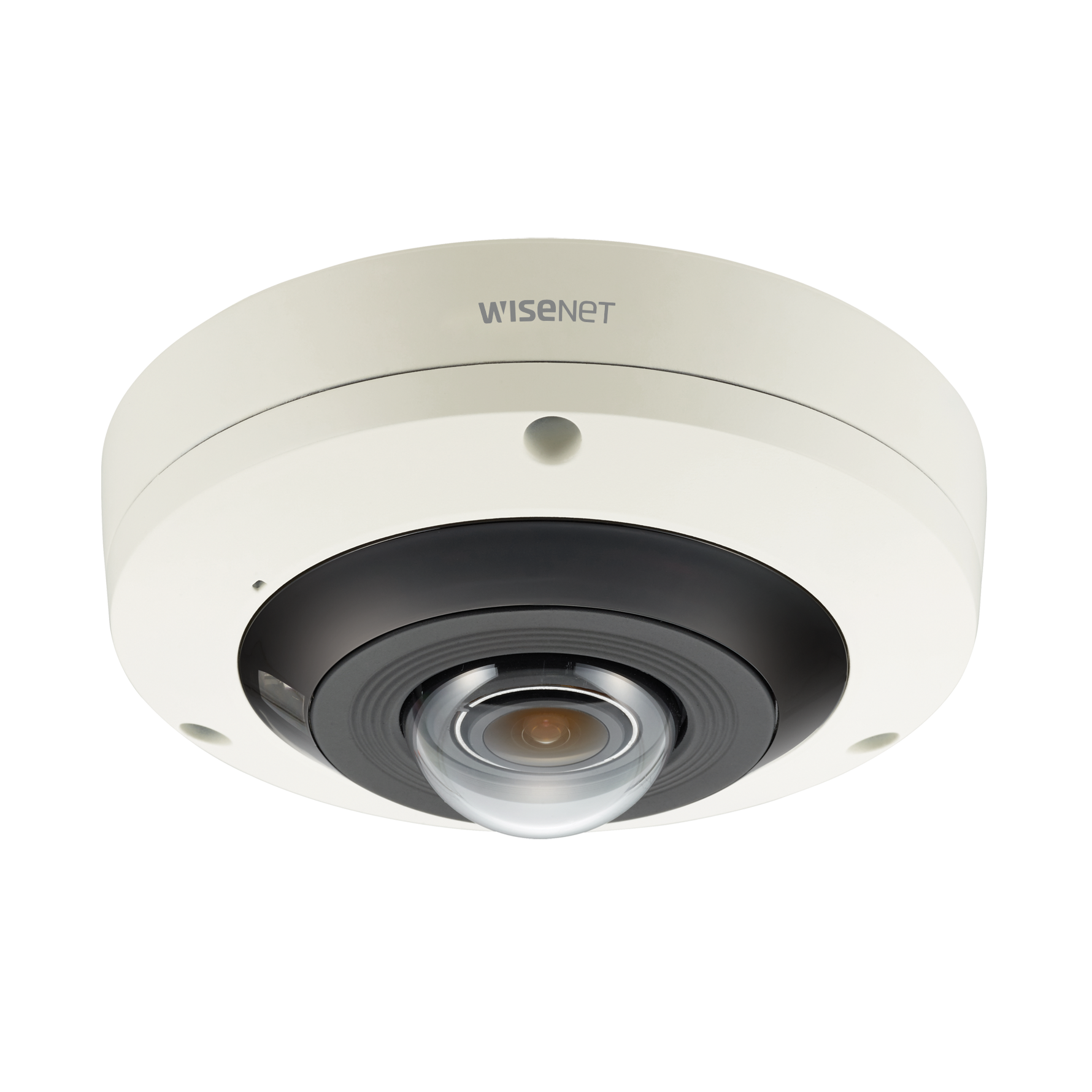

PNF-9010R | Hanwha Wisenet 4K Indoor Fisheye Camera, H.265, 30fps, 120dB WDR, 30m IR, 2.1mm | $1,062.60 | Add to Cart |
Filename | Size | ||
---|---|---|---|
![]() |
DataSheet_PNF9010R_EN.pdf | 1MB | Download |
![]() |
Quick Guide_PNF9010R,PNF9010RV,PNF9010RVM_180502_EN.pdf | 5MB | Download |
