Hanwha QND-8020R
$393.25 (incl. GST)
POSMarket SKU: Z14629
QND-8020R: Hanwha Wisenet NEW-Q 5MP Indoor Dome Camera, H.265, 120dB WDR, 20m IR, 4mm

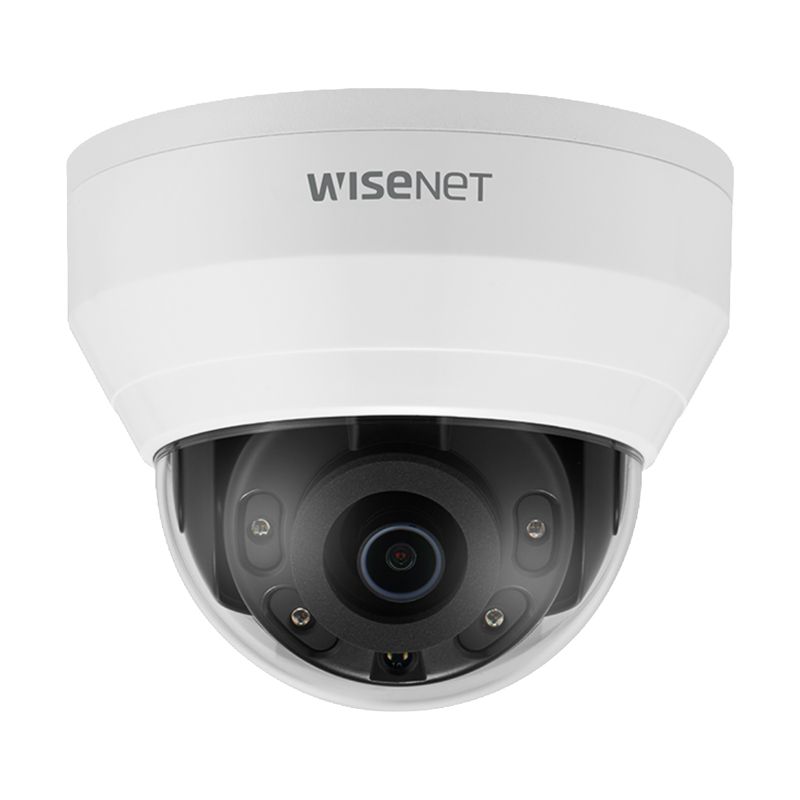

Hanwha Wisenet NEW-Q 5MP Indoor Dome Camera
Product Overview
The Hanwha's QND-8020R or HAN-QND-8020R 5MP Q series cameras deliver sharp and clear image quality with all essential features to create a safe and secure environment at an affordable price. They are ideal in securing small to medium-sized applications such as retail, banking and offices. The advanced compression technology of WiseStream that is incorporated into the Hanwha HAN-QND-8020R can reduce bandwidth by up to 50 percent and when combined with H.265, the bandwidth efficiency can be improved by up to 75 percent compared to the current H.264 technology. Defocus detection helps to recognise images that are out of focus and significantly improves efficiency. The Hanwha HAN-QND-8020R offers a seamless solution for small to medium-sized applications and ultimately minimises time and costs for installation.
FEATURES
FEATURES
- Max. 5Megapixel (2592 x 1944) resolution
- 4mm fixed lens
- 0.15Lux (Color), 0Lux (B/W, IR LED on)
- Max. 30fps@5MP (H.265 / H.264)
- H.265, H.264, MJPEG codec support, Multiple streaming
- Day & Night, WDR (120dB)
- Tampering, Motion detection, Defocus detection
- Micro SD / SDHC / SDXC memory slot (Max. 128GB)
- Hallway view, WiseStream II support
- IR Viewable length 20m, PoE
Product Specifications
| Video | |
| Imaging Device | 1/2.8" 5MP CMOS |
| Effective Pixels | 2592(H)x1944(V) |
| Min. Illumination Color: | 0.15Lux(F1.6, 1/30sec) BW: 0Lux(IR LED on) |
| Video Out CVBS: | 1.0 Vp-p / 75Ωcomposite, 720x480(N), 720x576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 4.0mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View H: | 79.8°/ V: 58.1°/ D: 105.9° |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0Ëš~350Ëš / 0Ëš~67Ëš / 0Ëš~355Ëš |
| Operational | |
| IR Viewable Length | 20m(65.62ft) |
| Camera Title Displayed | up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90Ëš/270Ëš) |
| Analytics | Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line |
| Alarm I/O Input | 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| QND-8020R | Hanwha Wisenet NEW-Q 5MP Indoor Dome Camera, H.265, 120dB WDR, 20m IR, 4mm | $393.25 | Add to Cart |
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
| Filename | Size | ||
|---|---|---|---|
 |
HANQND8020R Datasheet.pdf | 909KB | Download |
