Hanwha SNB-6004
$562.10 (incl. GST)
POSMarket SKU: Z14670
SNB-6004: Hanwha Wisenet 2MP Indoor Box Camera, H.264, 60fps, 120dB WDR, P-Iris, No Lens

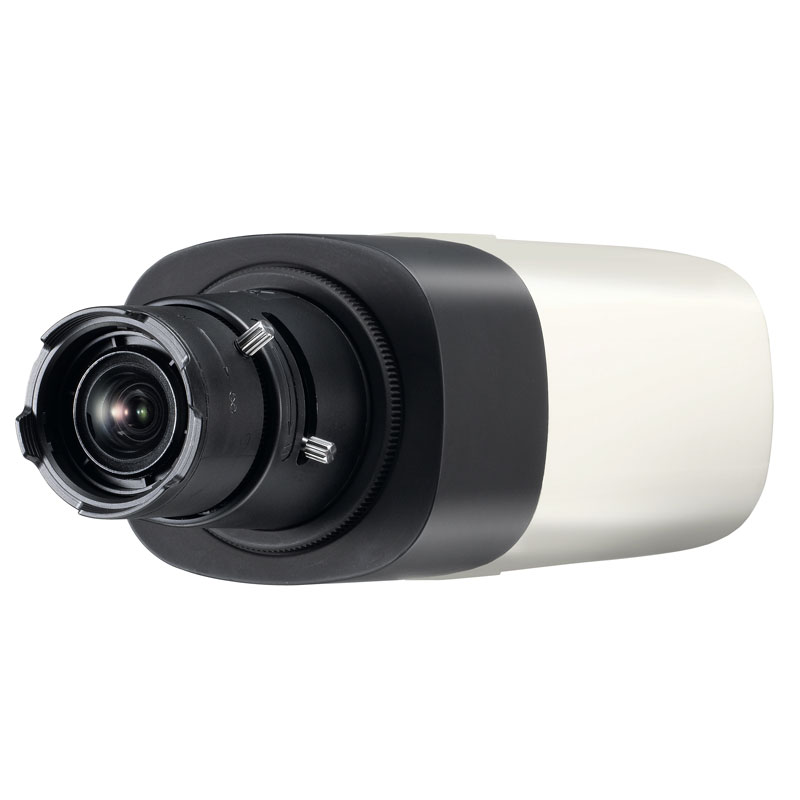

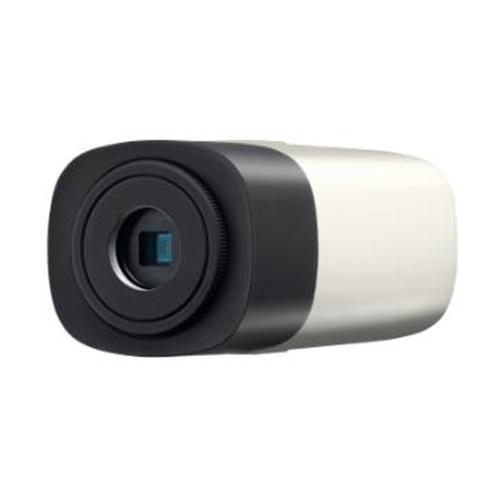

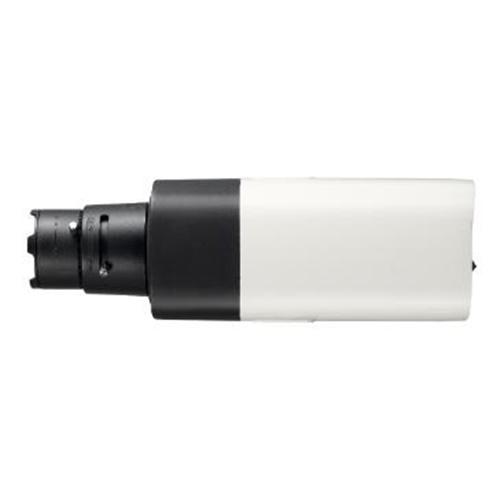

Hanwha Wisenet 2MP Indoor Box Camera
Product Overview
The hanhwa SNB-6004 2MP Bullet Camera (No Lens) from has a 2MP 1/2.8" progressive-scan CMOS sensor to capture 1920 x 1080 resolution video at up to 60 fps with a lens attached (available separately). This WiseNetIII camera features 120dB Wide Dynamic Range for low-light performance. It compresses video using H.264 and MJPEG codecs to ensure high-quality recording and playback. A built-in microSD slot supports up to a 64GB microSD card (available separately) for edge storage. PoE technology helps eliminate the need for additional cable runs by running a connection to an NVR and power in one Ethernet cable.
FEATURES
FEATURES
- Max. 2MP resolution (1920 x 1080)
- Full HD (1080p) resolution
- Max. 60fps at all resolutions
- SSLE (Samsung super light enhancer): 0.1Lux
- Enhanced WDR (120dB)
- 30fps at 2MP WDR
- H.264 & MJPEG dual codec
- SD / SDHC / SDXC memory slot
- Multi-crop streaming
- PoE, UPnP, bi-directional audio support
Product Specifications
| VIDEO | |
| Imaging Device | 1/2.8" 2.38M CMOS |
| Total Pixels | 1,952(H) x 1,116(V) |
| Effective Pixels | 1,944(H) x 1,104(V) |
| Scanning System | Progressive |
| Min. Illumination | Color : 0.1Lux (F1.2, 50IRE), 0.001Lux (2sec, 50IRE), 0.03Lux (F1.2, 30IRE) B/W : 0.01Lux (F1.2, 50IRE), 0.002Lux (F1.2, 30IRE) |
| S / N Ratio | 50dB |
| Video Output | CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for Installation DIP Connector Type |
| LENS | |
| Focus Control | Simple focus / Manual, Remote control Via network, Button Control (Manual, Simple focus, Day & Night) |
| Lens Type | Manual / DC Auto Iris, P-Iris |
| Mount Type | C / CS |
| OPERATIONAL | |
| Camera Title | Off / On (Displayed up to 45 Characters) |
| Day & Night | Auto (ICR) / Color / B/W / External / Schedule |
| Backlight Compensation | Off / BLC |
| Wide Dynamic Range | 120dB |
| Contrast Enhancement | SSDR (Off / On) |
| Digital Noise Reduction | SSNRIII (2D + 3D Noise filter) (Off / On) |
| Digital Image Stabilization | Off / On |
| Defog | Off / Auto / Manual |
| Motion Detection | Off / On (4ea 4 points polygonal zones) |
| Privacy Masking | Off / On (32 zones with 4 points of polygonal) |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti Flicker (2 ~ 1/12,000sec) |
| Flip / Mirror | Off / On Intelligent video analytics Tampering, Virtual line, Enter / Exit, (Dis) Appear, Audio detection, Face detection Alarm I/O Input 1ea / Output 1ea Remote Control Interface RS-485 |
| RS-485 Protocol | Samsung-T/E, Pelco-P/D, Sungjin, Panasonic, Honeywell, AD, Vicon, GE, Bosch |
| Alarm Triggers | Motion detection, Tampering, Audio detection, Face Detecton, Video analytics, Alarm input, Network disconnection |
| Alarm Events | File Upload Via FTP and E-mail, Notification via e-mail, |
| Local Storage | (SD / SDHC / SDXC) or NAS Recording at Event (Alarm Triggers), External output |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| SNB-6004 | Hanwha Wisenet 2MP Indoor Box Camera, H.264, 60fps, 120dB WDR, P-Iris, No Lens | $562.10 | Add to Cart |
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
| Filename | Size | ||
|---|---|---|---|
 |
Quick Guide_SNB6003,SNB6004,SND6083,SND6084_180802_EN.pdf | 3MB | Download |
|
SNB6004 Datasheet.pdf | 565KB | Download |
Product Videos
SNB 6004 WDR - Samsung Techwin America
