POSMarket SKU: Z14600
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

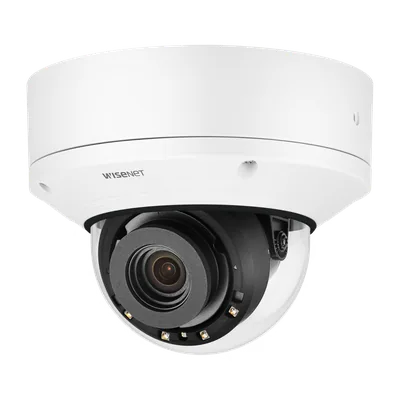

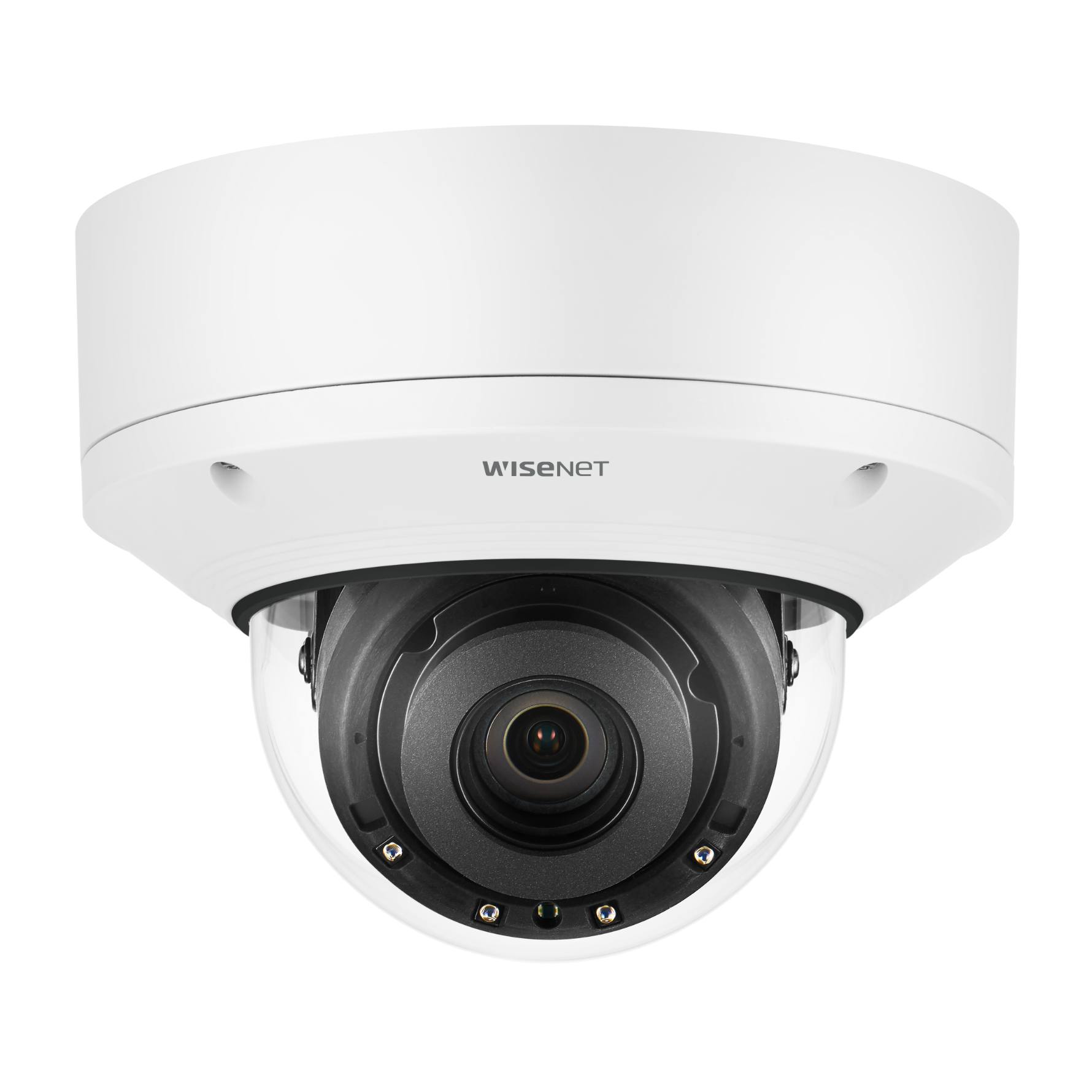

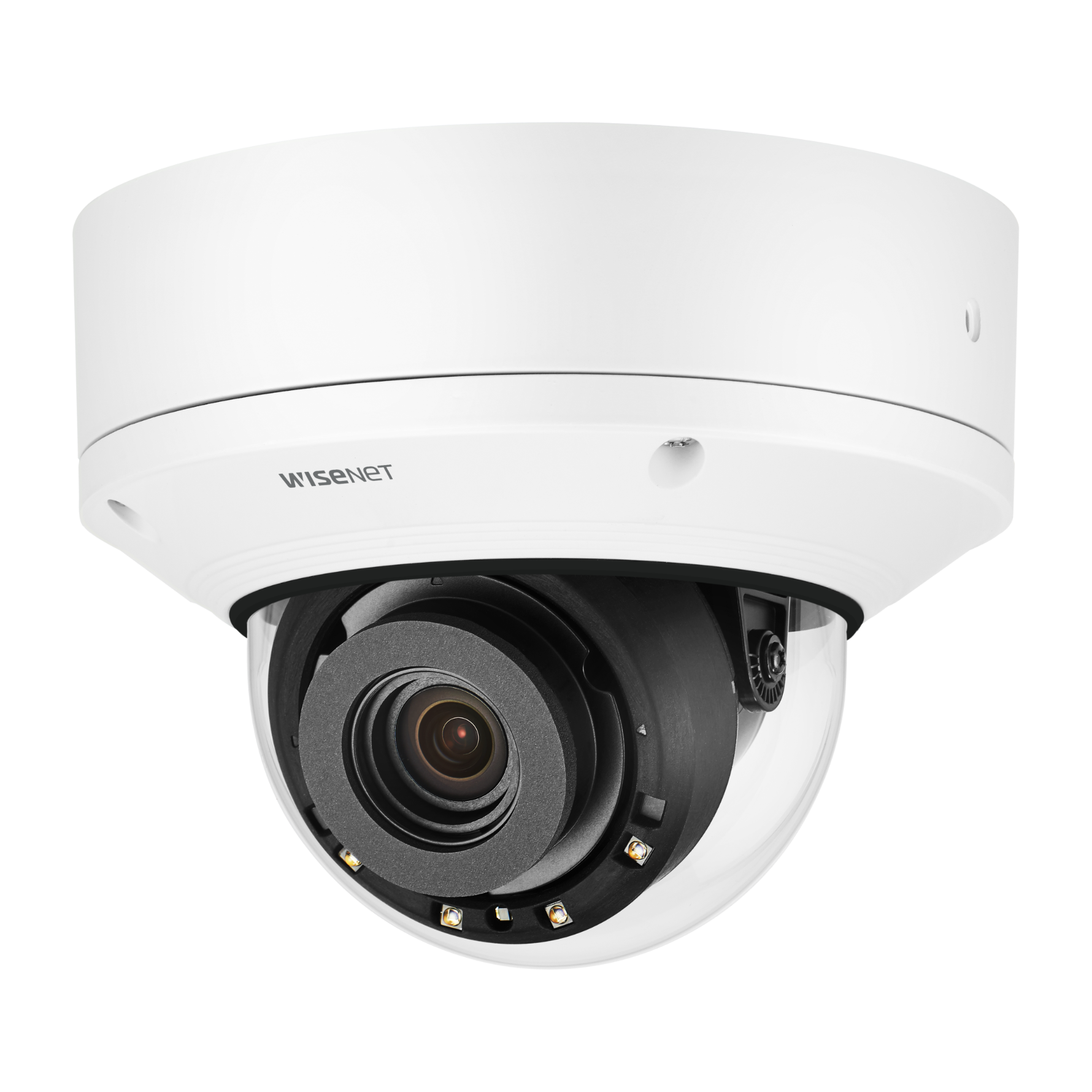

Hanwha Wisenet X Plus 5MP Indoor Dome Camera
Video | |
Imaging Device | 1/1.8" 6MP CMOS |
Effective Pixels | 2616(H)x1976(V) |
Min. Illumination | Color: 0.07Lux(F1.3, 1/30sec) |
Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation |
Lens | |
Focal Length (Zoom Ratio) | 3.9~9.4mm(2.4x) motorized varifocal |
Max. Aperture Ratio | F1.3 |
Angular Field of View | H: 92.1Ëš(Wide)~38.7Ëš(Tele) / V: 67.2Ëš(Wide)~29.0Ëš(Tele) / D: 119.9Ëš(Wide)~48.6Ëš(Tele) |
Min. Object Distance | 0.5m(1.64ft) |
Focus Control | Simple focus |
Lens Type | DC auto iris, P iris |
Pan / Tilt / Rotate | |
Pan / Tilt / Rotate Range | 0Ëš~360Ëš / -45Ëš~85Ëš / 0Ëš~355Ëš |
Operational | |
IR Viewable Length | 50m(164.04ft) |
Camera Title Displayed | up to 85 characters |
Day & Night | Auto(ICR) |
Backlight Compensation | BLC, HLC, WDR, SSDR |
Wide Dynamic Range | 120dB |
Digital Noise Reduction | SSNRâ…¤ |
Digital Image | Stabilization Support(built-in gyro sensor) |
Defog | Support |
Motion Detection | 8ea, 8point polygonal zones |
Privacy Masking | 32ea, rectangular zones |
Gain Control | Low / Middle / High |
White Balance | ATW / AWC / Manual / Indoor / Outdoor |
LDC | Support |
Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
Video Rotation | Flip, Mirror, Hallway view(90Ëš/270Ëš) |
Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection |
Business Intelligence | People counting, Queue management, Heatmap |
Alarm I/O | Input 1ea / Output 1ea |
Alarm Triggers | Analytics, Network disconnect, Alarm input |
Alarm Events | File upload via FTP and e-mail |
Audio In | Selectable(Mic in/Line in/Built-in Mic) |
Audio Out | Line out, Max. output level: 1Vrms |
Network | |
Ethernet | RJ-45(10/100BASE-T) |
Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
Resolution | 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) |
Smart Codec | Manual (5ea area), WiseStreamâ…¡ |
Bitrate Control H.264/H.265: | CBR or VBR |
Streaming | Unicast(20 users) / Multicast |
Audio Compression | G.711 u-law /G.726 Selectable |
Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
Security | HTTPS(SSL) Login Authentication Device Certificate(Hanwha Techwin Root CA) Edge Storage Micro SD/SDHC/SDXC 2slot 512GB |
Electrical | |
Input Voltage | PoE+(IEEE802.3at, Class4) |
Power Consumption | Max 25.5 W (Main CAM + Extension CAM) |
Model | Description | Price | Stock | |
---|---|---|---|---|
XND-8081REV | *SpOrd* Hanwha 5MP Indoor PoE Extender Dome Camera, 120dB WDR, 50m IR, 3.9 - 9.4mm | $1,389.85 | Add to Cart | |
XND-8081RV | *SpOrd* Hanwha Wisenet X Plus 5MP Indoor Dome Camera, H.265, 50m IR, WDR, 3.6-9.4mm | $1,350.39 | Add to Cart |
Filename | Size | ||
---|---|---|---|
![]() |
DataSheet_XND8081REV_EN.pdf | 1MB | Download |
![]() |
DataSheet_XND8081RV_EN.pdf | 1MB | Download |
