Hanwha XND-C7083RV

$1,048.16 (incl. GST)

POSMarket SKU: Z14752

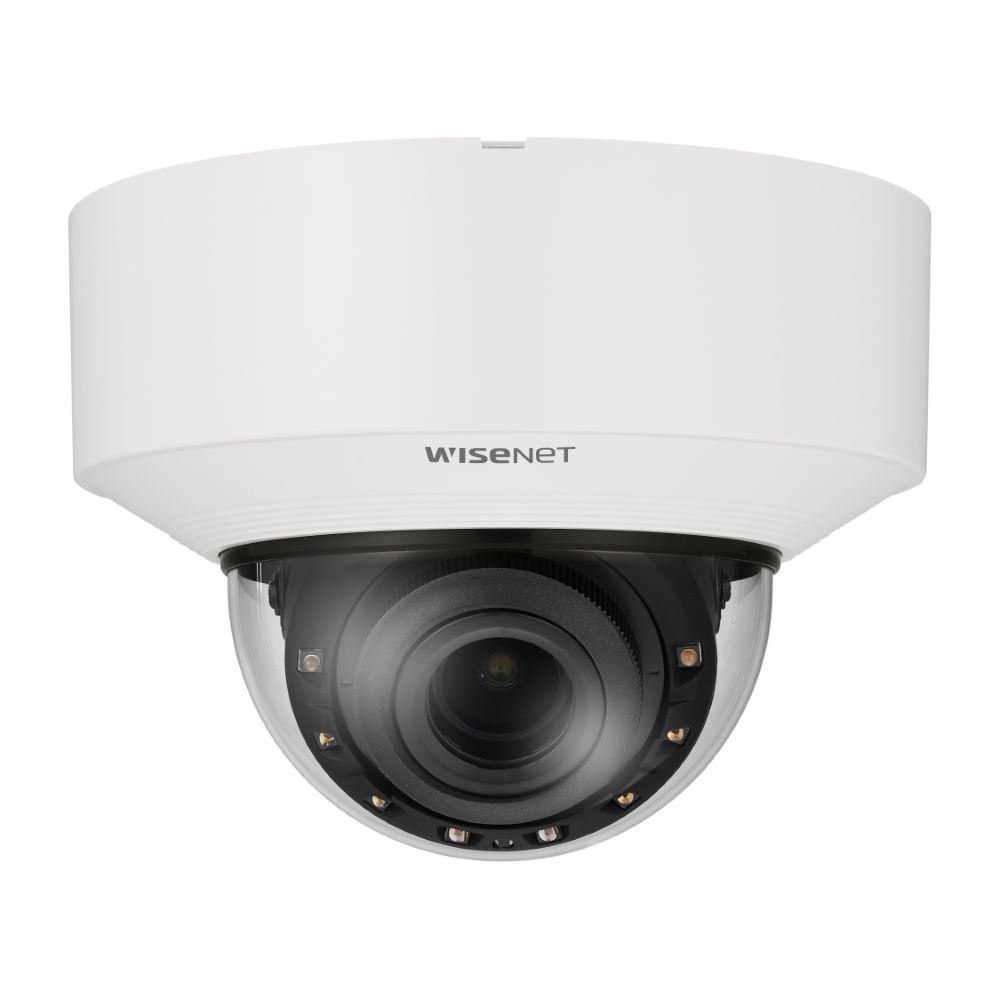

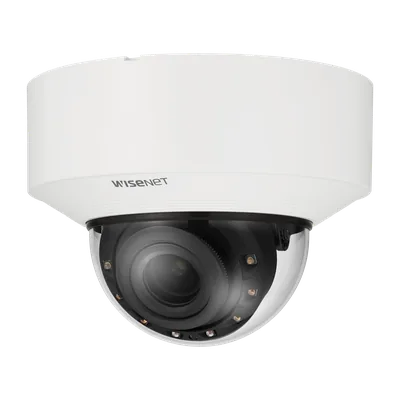

XND-C7083RV: Hanwha Wisenet 4MP Indoor Dome Camera, H.265, 60fps, 40m IR, 2.8-10mm

Hanwha Wisenet 4MP AI Indoor Dome Camera, 60fps

Product Rating
Product Overview
The Hanwha Techwin's XND-C7083RV or called HAN-XND-C7083RV is an X-Core Indoor Dome Camera that has on board analytics and AI assisted video processing, WiseNR II & WiseStream III. These AI-based analytics provide highly accurate detection of person, face or vehicle, people counting, queue management and heat mapping detailing in store patterns of human behaviour. Also combining virtual line crossing, loitering detection, camera tampering and motion detection, these powerful analytics make the X-Core the perfect 'smart' camera for most installations. Edge based analytics improve operator efficiency for both real-time event notification and post-event search.

FEATURES
  • 4MP resolution
  • AI-based analytics for object detection which can obtain highly accurate people counts, queue management data and heat maps showing detailed patterns of behaviour for businesses
  • AI-based image enhancements, bandwidth reduction with WiseStream III and object detection including person, face and vehicle
  • WiseNR II and WiseStream III (based on AI engines)
  • Extreme WDR and WiseIR
  • Business intelligence
  • Intelligent Video Analytic (IVA) - virtual line/area, enter/exit, loitering, direction
  • Analytics events: defocus, motion, tampering, audio and shock detection, sound classification and appear/disappear
  • Next level cybersecurity: Cybersecurity Assurance Program (UL CAP)
Product Specifications
Video
Imaging Device 1/2.8" progressive CMOS
Resolution 2592x1520, 2560x1440, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)(WDR off)
Max. 30fps/25fps(60Hz/50Hz)(WDR on)

MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.038Lux(F1.4, 1/30sec, 30IRE)
B/W : 0.0038Lux(F1.4, 1/30sec, 30IRE), 0Lux(IR LED on), 30/25fps

Color: 0.076Lux(F1.4, 1/60sec, 30IRE)
B/W : 0.0076Lux(F1.4, 1/60sec, 30IRE), 0Lux(IR LED on), 60/50fps
Video Out USB: Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio) 2.8~10mm(3.6x) motorized varifocal
Max. Aperture Ratio F1.4(Wide) ~ F3.0(Tele)
Angular Field of View H: 109.7°(Wide) ~ 30.4°(Tele)
V:60.8°(Wide) ~ 17.8°(Tele)
D: 131.3°(Wide) ~ 35.3°(Tele)
Min. Object Distance 0.5m(1.64ft)
Focus Control Simple focus, Manual
Lens Type DC auto iris with hall sensor (IR corrected)
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0°~360° / -45°~75° / 0°~355°
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range extremeWDR (120dB)
Digital Noise Reduction WiseNRâ…¡(Based on AI engine), SSNRâ…¤
Digital Image Stabilization Support(built-in gyro sensor)
Defog Support
Motion Detection 8ea, 8point Polygonal zones
Privacy Masking 32ea, Quadrangle zones
- Color : Gray, Green, Red, Blue, Black, White
- Mosaic
Gain Control Support
White Balance ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor
LDC Support (Fill/stretch mode)
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec) prefer shutter control(Based on AI engine)
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics - Analytics events based on AI engine :
Object detection (Person/Face/Vehicle(car/bus/truck/motorcycle/bicycle)/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, direction, Appear/Disappear, intrusion)

- Analytics events :
Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection
Business Intelligence Based on AI engine : People counting, Queue management, Heatmap
Alarm I/O 2 configurable I/O ports
Alarm Triggers Analytics, Network disconnect, Alarm input, App event, Time schedule
Alarm Events When alarm trigger occurred
- File upload(image) : e-mail/FTP
- Notification : e-mail
- Recording : SD/SDHC/SDXC or NAS recording at event triggers
- Alarm output
- Handover(PTZ preset, Send message by HTTP/HTTPS/TCP)
- Audio clip playback
Audio In Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
IR Viewable Length WiseIR 40m(131.23ft)
ModelDescriptionPriceStock
XND-C7083RV Hanwha Wisenet 4MP Indoor Dome Camera, H.265, 60fps, 40m IR, 2.8-10mm $1,048.16
Call
 Add to Cart
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document XNDC7083RV Datasheet.pdf 521KB Download
