Video | |
Imaging Device | 1/2.8" 2MP CMOS |
Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: | Max. 30fps/25fps(60Hz/50Hz) |
Min. Illumination | Color: 0.02Lux(F1.6, 1/30sec) BW: 0Lux(IR LED) |
Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation |
Lens | |
Focal Length (Zoom Ratio) | 4.75~261.4mm(55x) zoom |
Max. Aperture Ratio | F1.6(Wide)~F6.5(Tele) |
Angular Field of View | H: 58.6°(Wide)~1.23°(Tele) / V: 34.8°(Wide)~0.71°(Tele) |
Min. Object Distance | 5m(16.40ft) |
Focus Control | Oneshot AF |
Lens Type | DC auto iris |
Pan / Tilt / Rotate | |
Pan Range | 360° Endless |
Pan Speed | Preset: 400°/sec, Manual: 0.024°/sec~250°/sec |
Tilt Range | 95°(-5°~90°) |
Tilt Speed | Preset: 250°/sec, Manual: 0.024°/sec~250°/sec |
Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule |
Preset Accuracy | ±0.2° |
Operational | |
Camera Title | Displayed up to 85 characters |
Day & Night | Auto(ICR) |
Backlight Compensation | BLC, HLC, WDR, SSDR |
Wide Dynamic Range | 120dB |
Digital Noise Reduction | SSNRâ…¤ |
Digital Image Stabilization | Support(built-in gyro sensor) |
Defog | Support |
Motion Detection | 8ea, polygonal zones Support |
Privacy Masking | 24ea, rectangular zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
Gain Control | Low / Middle / High |
White Balance | ATW / AWC / Manual / Indoor / Outdoor |
Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
Video Rotation | Flip, Mirror |
Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection |
Serial Interface | RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) |
Alarm I/O | Input 4ea / Output 2ea |
Alarm Triggers | Analytics, Network disconnect, Alarm input |
Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output PTZ Preset |
Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
Audio Out | Line out, Max.output level: 1Vrms |
IR Viewable Length | 500m(1,640.42ft) |
Auto Tracking | Support |
Model | Description | Price | Stock | |
---|---|---|---|---|

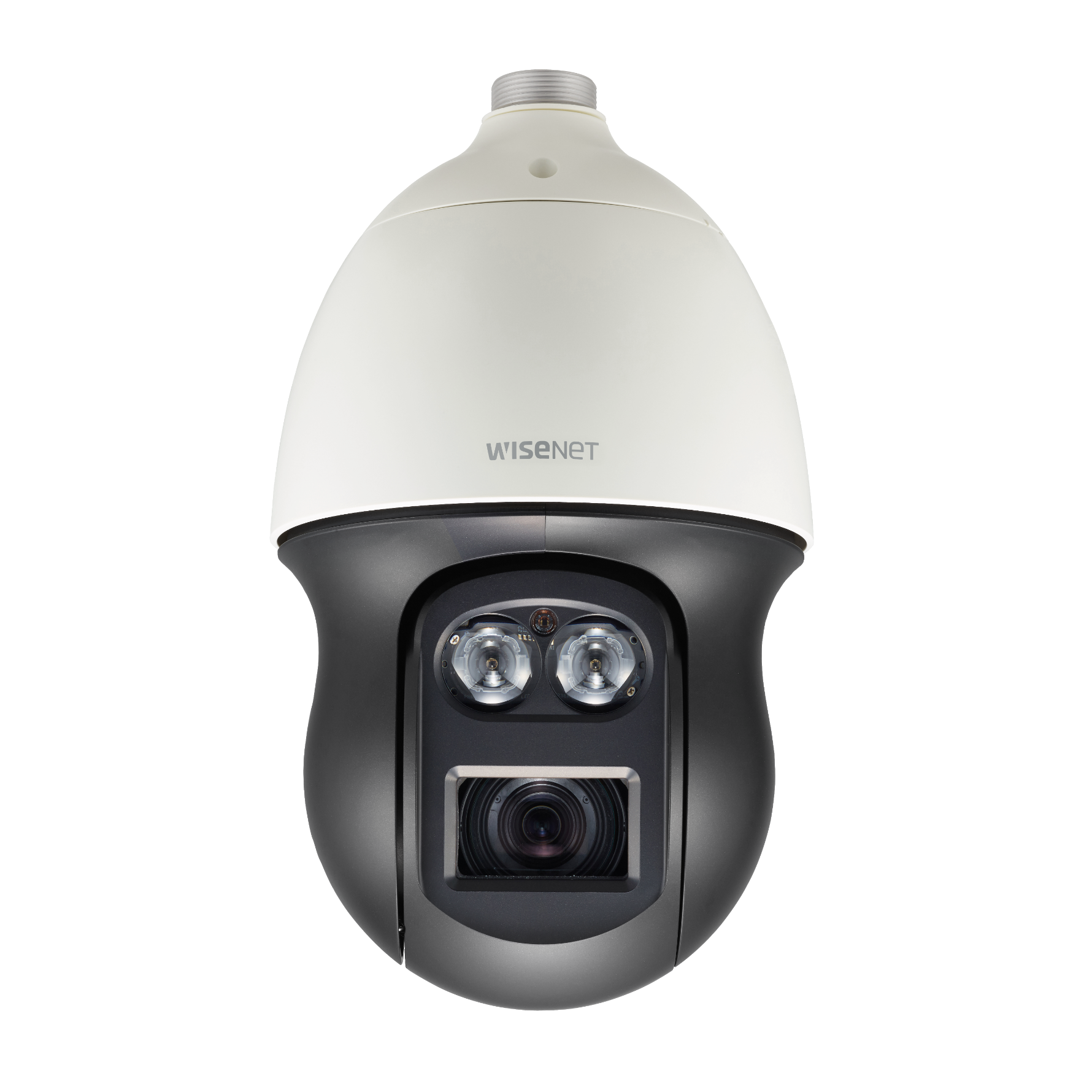

XNP-6550RH | *SpOrd* Hanwha Wisenet 2MP Outdoor PTZ Camera, 55x Zoom, H.265, WDR, IP66, 4.75-261.4mm | $4,323.55 | Add to Cart |
Filename | Size | ||
---|---|---|---|
![]() |
XNP-6550RH DataSheet | 1MB | Download |
![]() |
XNP-6550RH Quick Guide | 5MB | Download |
