POSMarket SKU: Z14554
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

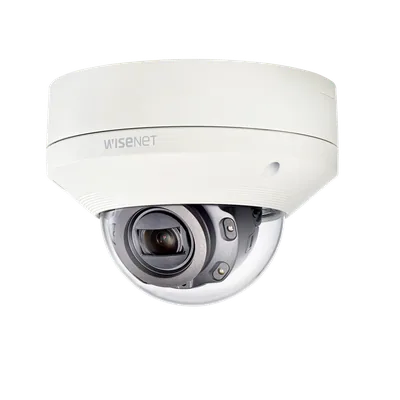

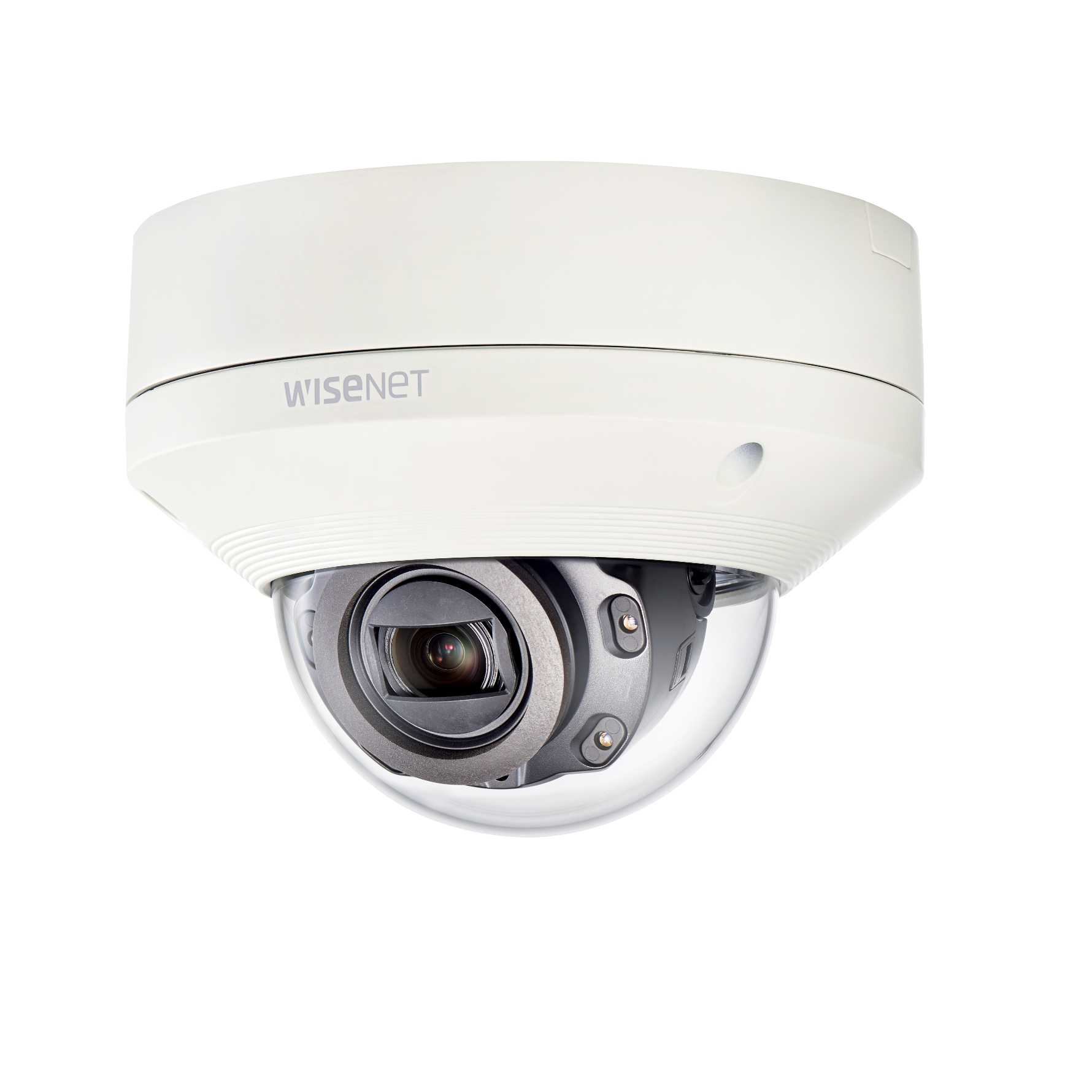

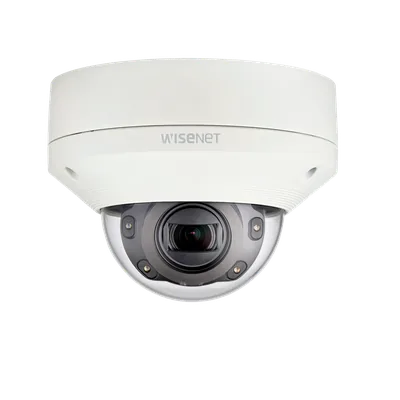

Wisenet 2MP Outdoor Dome Camera Vandal-Resistant and with Night Vision
Video | |
Imaging Device | 1/2.8" 2MP CMOS |
Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
Max. Framerate | H.265/H.264 : Max. 60fps/50fps(60Hz/50Hz) |
Min. Illumination | Color: 0.015 lux(F1.4, 1./30sec) |
B/W: | 0 Lux (IR LED On) |
B/W: | 0.0015 lux (F1.4, 1./30sec, IR LED OFF) |
Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for installation |
USB: | Micro USB Type B, 1280x720, for installation |
Lens | |
Focal Length (Zoom Ratio) | 2.8~12mm(4.3x) motorized varifocal |
Max. Aperture Ratio | F1.4(Wide) ~ F3.6(Tele) |
Angular Field of View | H: 119.5°(Wide)~27.9°(Tele), V: 62.8°(Wide)~15.7°(Tele), T: 142.1°(Wide)~32.0°(Tele) |
Min. Object Distance | 0.5m(1.64ft) |
Focus Control | Simple focus |
Lens Type | DC auto iris, P iris |
Pan / Tilt / Rotate | |
Pan / Tilt / Rotate Range | 0°~354° / 0°~67° / 0°~355° |
Operational | |
Camera Title | Displayed up to 85 characters |
Day & Night | Auto(ICR) |
Backlight Compensation | BLC, HLC, WDR, DWDR, SSDR |
Wide Dynamic Range | 150dB |
Digital Noise Reduction | SSNRâ…¤ |
Digital Image Stabilization | Support |
Defog | Support |
Motion Detection | 8ea, 8point polygonal zones |
Privacy Masking | 32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
Gain Control | Low / Middle / High |
White Balance | ATW / AWC / Manual / Indoor / Outdoor |
LDC | Support |
Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification |
Alarm I/O | Input 1ea / Output 1ea |
Alarm Triggers | Analytics, Network disconnect, Alarm input |
Alarm Events | File upload via FTP and E-Mail Notification via E-Mail SD/SDHC/SDXC or NAS recording at Event Triggers Alarm output Handover |
Audio In | Selectable(Mic in/Line in), |
Supply voltage: | 2.5VDC(4mA), Input impedance: 2K Ohm |
Audio Out | Line out, Max. output level: 1Vrms |
Model | Description | Price | Stock | |
---|---|---|---|---|
XNV-6080R | Hanwha Wisenet 2MP Outdoor Dome Camera, H.265, 60fps, 150dB WDR, 50m IR, 2.8-12mm | $868.18 | Add to Cart | |
XNV-6080 | Hanwha Wisenet 2MP Outdoor Mini Dome Camera, H.265, 60fps, WDR, 2.8 - 12mm | $784.44 | Add to Cart |
Model | Description | Prices From | |
---|---|---|---|
Hanwha SBP-300NBW | Installation Back Box | $512.82 | View Product |
Hanwha SBP-300CMW | A pendant ceiling mount accessory | $40.43 | View Product |
Hanwha SBV-160WC | Weather Cap, suits standard boxes for easy installation | $25.41 | View Product |
Hanwha SHD-3000Fx | Low -profile In-ceiling flush mount/housing | $38.12 | View Product |
Hanwha SHD-1600FPW | In-ceiling, flush mount housing for a variety of camera model | $408.87 | View Product |
Filename | Size | ||
---|---|---|---|
XNV6080 Datasheet.pdf | 271KB | Download | |
XNV6080R DataSheet | 1MB | Download | |
XNV6080R Quick Guide .pdf | 7MB | Download | |
XNV6080_6080R_8080R User Manual.pdf | 17MB | Download |
