Hikvision DS-2CD1643G0-I(Z)
$309.38 (incl. GST)
POSMarket SKU: Z14330
DS-2CD1643G0-IZ: Hikvision White Label 4MP Outdoor Motorised VF Bullet Camera, H.265, IP67, 2.8-12mm

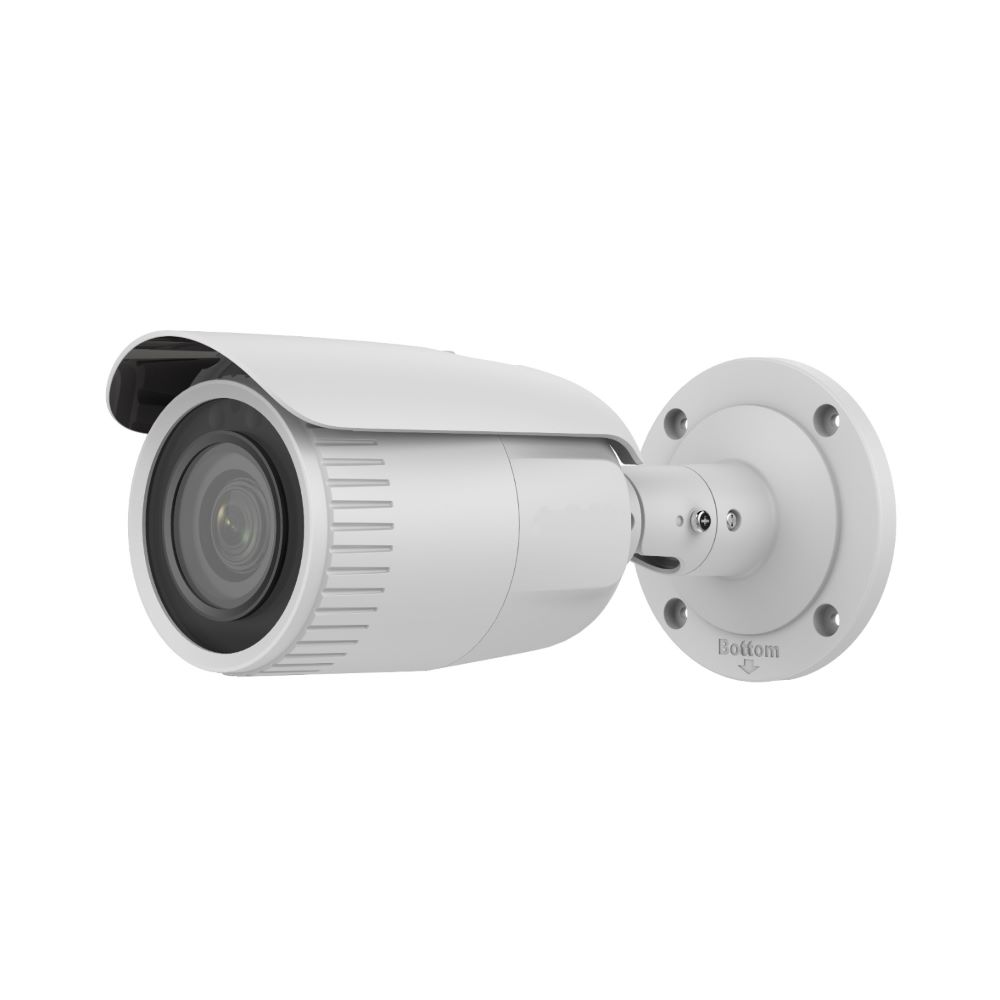

White Label 4MP Outdoor Motorised VF Bullet Camera
Product Overview
The DS-2CD1643G0-I(Z) or also known as HIKWhite HIW-2CD1643G0-IZ is an unbranded, Hikvision, 4-megapixel outdoor bullet camera that is compatible with the entire range of Hikvision NVR and video surveillance applications.
This IP67-rated camera features an excellent wide-angle view and built-in IR illumination for clarity in complete darkness. Equipped with 120dB Wide Dynamic Range (WDR), it is designed to capture a well-balanced and accurate image in challenging condition with harsh backlighting. With H.265+ encoding, the storage requirement and cost is dramatically reduced by up to 50%. It also supports motion detection and video tampering for efficient recording and accurate notification.
This range has been tested to deliver reliable round-the-clock video surveillance, and with all the core features this camera is both a versatile and cost-effective choice for a variety of security applications.
Features
This IP67-rated camera features an excellent wide-angle view and built-in IR illumination for clarity in complete darkness. Equipped with 120dB Wide Dynamic Range (WDR), it is designed to capture a well-balanced and accurate image in challenging condition with harsh backlighting. With H.265+ encoding, the storage requirement and cost is dramatically reduced by up to 50%. It also supports motion detection and video tampering for efficient recording and accurate notification.
This range has been tested to deliver reliable round-the-clock video surveillance, and with all the core features this camera is both a versatile and cost-effective choice for a variety of security applications.
Features
- 1/3" progressive scan CMOS
- 2560 x 1440 at 20fps
- 2.8 to 12mm varifocal lens
- H.265+, H.265, H.264+, H.264
- BLC/3D DNR/ ROI
- 120 dB WDR (wide dynamic range)
- Up to 30m IR range
- Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
- IP67 rating
- Motion detection and video tampering
Product Specifications
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Min. Illumination Color: | 0.01 Lux @(F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON) |
| Shutter Speed | 1/3 s to 1/100, 000 s, support slow shutter |
| Slow Shutter | Yes |
| Auto-Iris | No |
| Day & Night | IR cut filter |
| Digital Noise Reduction | 3D DNR |
| WDR | 120 dB |
| Angle Adjustment Pan: | 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360° |
| Lens | |
| Focal Length | 2.8 to 12 mm |
| Aperture | F1.6 |
| Focus | |
| -I: | Manual |
| -IZ: | Auto |
| FOV | |
| Horizontal field of view: | 98° to 28° |
| Vertical field of view: | 51° to 16° |
| Diagonal field of view: | 115° to 32° |
| Lens Mount | Ø14 |
| IR | |
| IR Range | Up to 30 m |
| Wavelength | 850 nm |
| Compression Standard | |
| Video Compression Main stream: | H.265/H.264 |
| Sub-stream: | H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.264+ | Main stream supports |
| H.265 Type | Main Profile |
| H.265+ | Main stream supports |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Smart Feature-set | |
| Region of Interest | 1 fixed region for main stream and sub-stream |
| General | |
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F),humidity: 95% or less (non-condensing) |
| Power Supply | 12 VDC +/- 20%, 5.5 mm coaxial power plug PoE (802.3af, class 3) |
| Power Consumption and Current | -IZ: 12 VDC, 0.9 A, max. 11 W; PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, max. 12.9 W -I: 12 VDC, 0.6 A, max. 7 W; PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 9 W |
| Protection Level | IP67 TVS 2000V lightning protection, surge protection and voltage transient protection |
| Material | Metal |
| Dimensions | Φ 105 mm × 244.4 mm (Φ 4.1" × 9.6") |
| Weight | Camera: approx. 1035 g (2.3 lb.) With package: approx. 1550 g (3.4 lb.) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| DS-2CD1643G0-IZ | Hikvision White Label 4MP Outdoor Motorised VF Bullet Camera, H.265, IP67, 2.8-12mm | $309.38 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Hikvision DS-1280ZJ-S | Junction Box with Gland, white or black | $40.43 | View Product |
| Hikvision DS-1260ZJ | Junction Box | $26.57 | View Product |
| Hikvision DS-1275ZJ-S-SUS | Vertical Pole Mount Bracket | $51.98 | View Product |
| Hikvision DS-1275ZJ-SUS | Horizontal Pole Mount | $58.91 | View Product |
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
| Filename | Size | ||
|---|---|---|---|
 |
DS2CD1643G0IZ Datasheet.pdf | 804KB | Download |
|
DS2CD1643G0IZ User Manual.pdf | 5MB | Download |
Product Videos
No videos found for this product.
Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.
Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.
