POSMarket SKU: Z14332

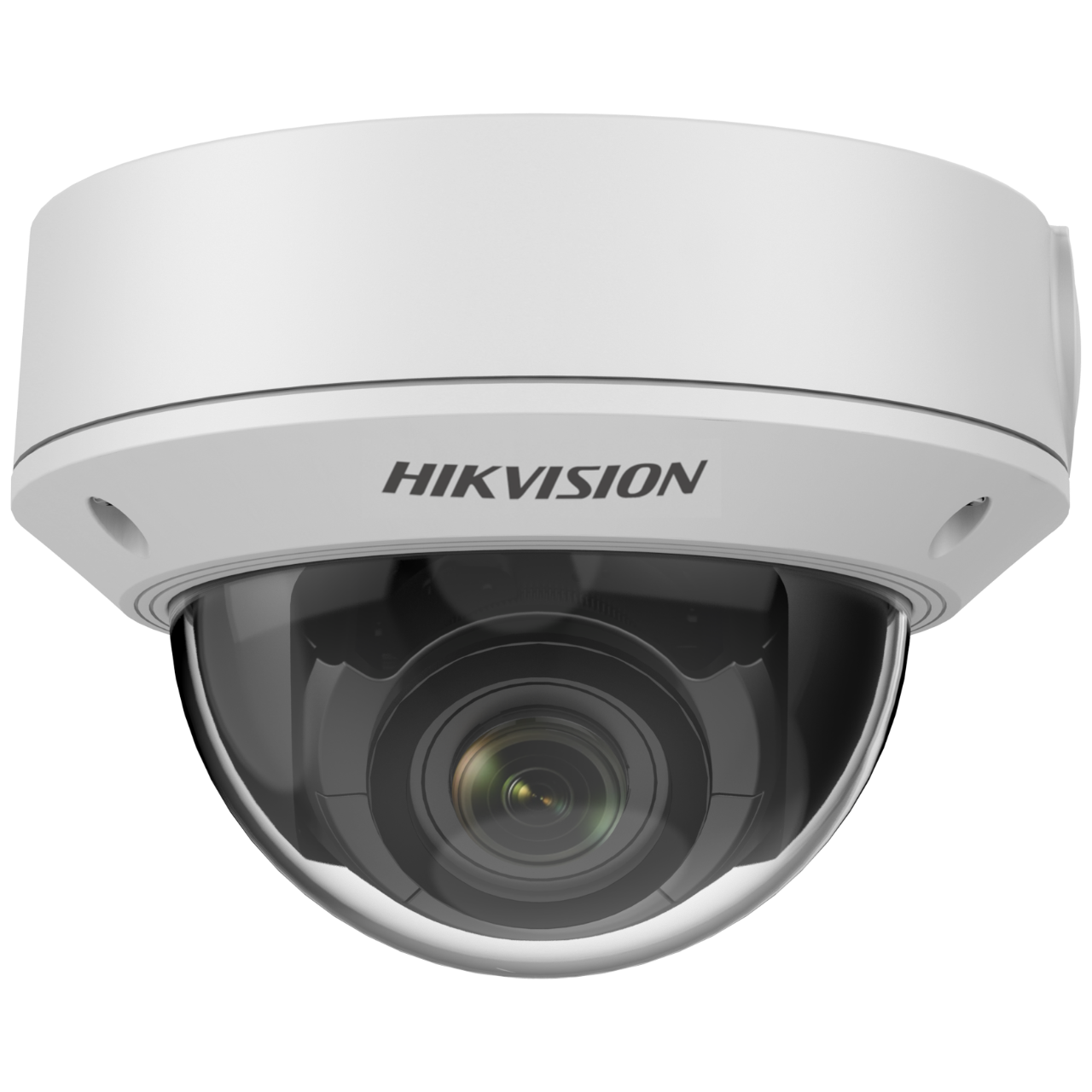

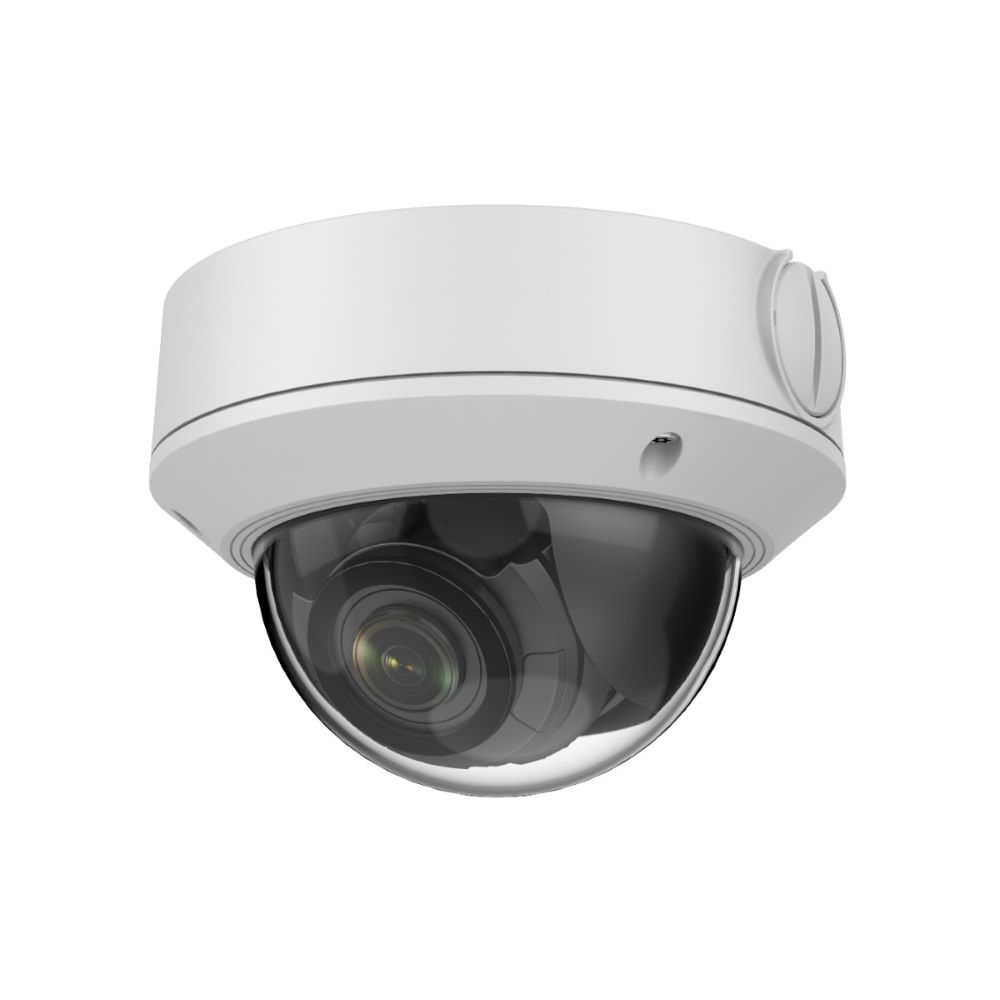

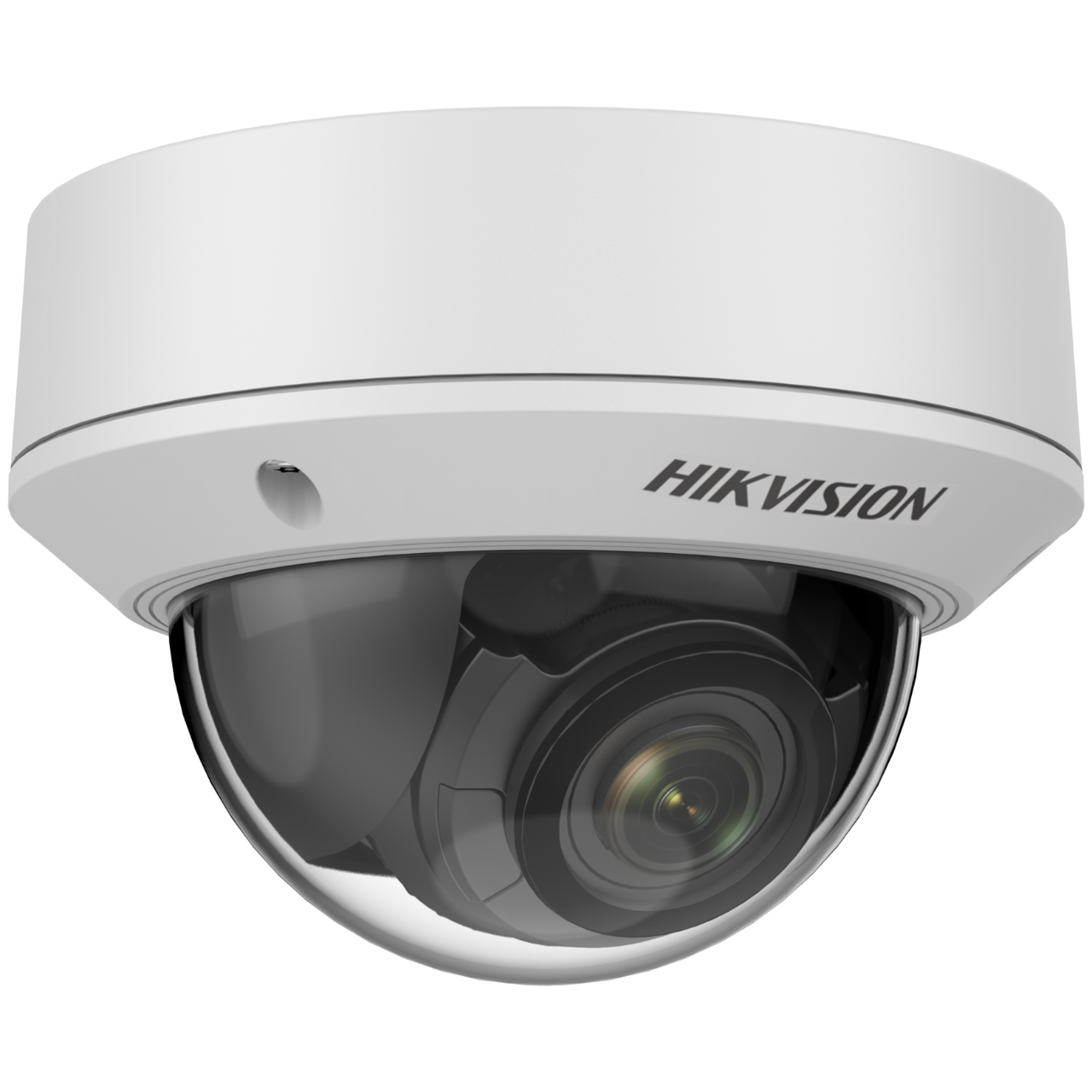

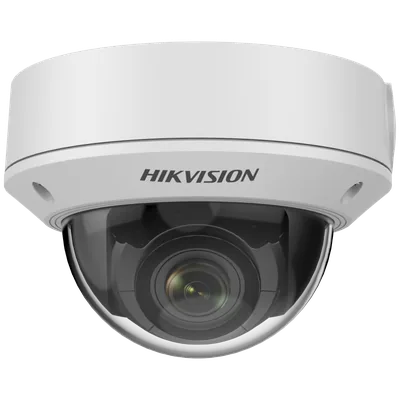

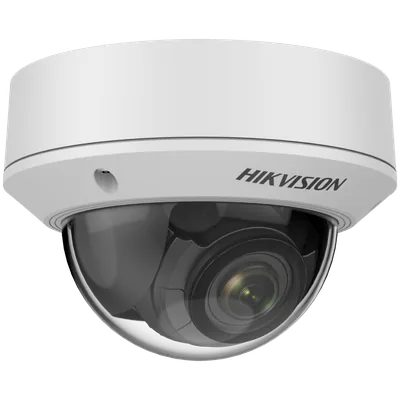

White Label 4MP Outdoor Motorised VF Dome Camera
| Camera | |
| Image Sensor | 1/3" progressive scan CMOS |
| Min. Illumination Color: | 0.01 Lux @(F1.2, AGC ON), 0.018Lux @ (F1.6, AGC ON) |
| Shutter Speed | 1/3 s to 1/100, 000 s, support slow shutter |
| Slow Shutter | Yes |
| Auto-Iris | No |
| Day &Night | IR cut filter |
| Digital Noise Reduction | 3D DNR |
| WDR | 120 dB |
| Angle Adjustment Pan: | 0° to 355°, tilt: 0° to 70°, rotation: 0° to 360° |
| Lens | |
| Focal Length | 2.8 to 12 mm |
| Aperture | F1.6 |
| Focus | |
| -I: | Manual |
| -IZ: | Auto |
| FOV | |
| Horizontal field of view: | 98°to 28° |
| Vertical field of view: | 51°to 16° |
| Diagonal field of view: | 115°to 32° |
| Lens Mount | Φ14 |
| IR | |
| IR Range | Up to 30 m |
| Wavelength | 850 nm |
| Compression Standard | |
| Video Compression Main stream: | H.265/H.264 |
| Sub stream: | H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.264+ | Main stream supports |
| H.265 Type | Main Profile |
| H.265+ | Main stream supports |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Smart Feature-set | |
| Region of Interest | 1 fixed region for main stream and sub-stream |
| Image | |
| Max. Resolution | 2560 x 1440 |
| Main Stream | |
| Max. Frame Rate | |
| 50Hz: | 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720) |
| 60Hz: | 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720) |
| Sub-stream | |
| Max. Frame Rate | |
| 50Hz: | 25fps (640 × 480, 640 × 360, 320 × 240) |
| 60Hz: | 30fps (640 × 480, 640 × 360, 320 × 240) |
| Image Enhancement | BLC, 3D DNR |
| Image Setting | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| Day/Night | Switch Auto, scheduled * Note: The frame rate of the sub-stream cannot exceed the maximum frame rate of the current main stream. |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Video Output (Without -Z) | 1Vp-p composite output (75Ω/BNC) |
| Reset Button | Yes |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| DS-2CD1743G0-IZ | Hikvision White Label 4MP Outdoor Motorised VF Dome Camera, H.265, IP67, 2.8-12mm | $301.13 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Hikvision DS-1280ZJ-DM21 | Junction Box to suit DS-2CD23xxxGx-x Turrets. Comes in White or Black | $23.10 | View Product |
| Hikvision DS-1250ZJ | Water-proof shade for Outdoor Dome Camera | $17.33 | View Product |
| Hikvision DS-1227ZJ | In-ceiling Recessed Kit | $40.43 | View Product |
| Hikvision DS-1473ZJ-135 | Wall Mount Bracket, an option with Junction Box | $58.91 | View Product |
| Hikvision DS-1273ZJ-135 | Wall Mount Bracket | $40.43 | View Product |
| Hikvision DS-1271ZJ-135 | Pendant Mount Bracket for Dome Camera | $71.61 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
DS2CD1743G0IZ Datasheet.pdf | 773KB | Download |
|
DS2CD1743G0IZ User Manual.pdf | 5MB | Download |
