Hikvision DS-2CD2055FWD-I
POSMarket SKU: Z14113
This product has been replaced by the Hikvision HIK-2CD2066G2-I2. If you need this particular model rather than the replacement please contact one of our sales team on 1300 737 998.

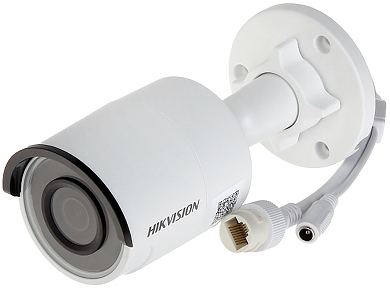

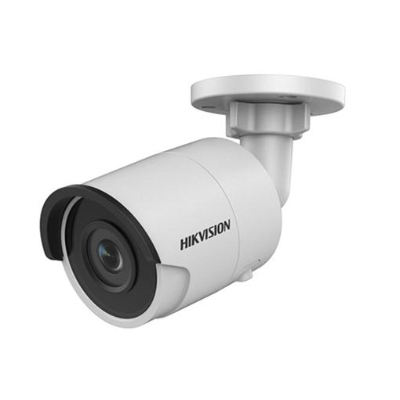

6MP Outdoor Mini Bullet Camera, H.265+
Product Overview
Part of Hikvision's new easy IP 3.0 range of cameras, the DS-2CD2055FWD-I or HIK-2CD2055FWDI4 is an outdoor IR mini bullet camera that produces an exceptional 6MP high-resolution video. Powered by the latest innovation in image sensor technology and ultra high definition image processing chipset from Amberella, it supports H.265 and H.265+ intelligent video compression, which reduces bandwidth/storage requirements by up to 50% and 80%, respectively. Providing an ideal combination of smart features and affordability, the camera includes 120dB true wide dynamic range (WDR) and built-in EXIR 2.0 infrared technology providing up to 30m visibility at night. With a 4mm lens, this camera provide an horizontal field of view of 78 degrees.
Rigorously tested, Hikvision's generation cameras have been designed to deliver 24/7 video surveillance with the clarity you expect from a Hikvision network camera.
Features
Rigorously tested, Hikvision's generation cameras have been designed to deliver 24/7 video surveillance with the clarity you expect from a Hikvision network camera.
Features
- 1/2.9" progressive scan CMOS
- 6MP resolution 3072x2048 at 20fps
- 4mm lens HVOF - 78 degrees
- H.265, H.265+, H.264+, H.264
- Third stream
- 120dB wide dynamic range (WDR)
- Backlight compensation, 3D digital noise reduction
- Up to 30m infrared
- IP67
- Line crossing, intrusion, object abandoned, object removed and face detection
- Supports on-board storage, up to 128GB
- 802.3af PoE or 12VDC
Product Specifications
| CAMERA | |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Min. Illumination Color: | 0.01 lux @(F1.2, AGC ON), 0 lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Support |
| LENS | |
| 2.8 mm | horizontal field of view: 97° |
| 4 mm | horizontal field of view: 78° |
| 6 mm | horizontal field of view: 60° |
| 8 mm | horizontal field of view: 39.5° |
| 12 mm | horizontal field of view: 19° |
| Lens Mount | M12 |
| Iris | F2.0 |
| Day &Night | IR cut filter |
| DNR | 3D DNR |
| Wide Dynamic Range | 120dB |
| 3-Axis Adjustment (bracket) | Pan:0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| COMPRESSION STANDARD | |
| Vidoe Comperssion | |
| Main stream: | H.265/H.264 |
| Sub stream: | H.265/H.264/MJPEG |
| Third stream: | H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Support |
| H.265 Type | Main Profile |
| H.265+ | Support |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| IMAGE | |
| Max. Resolution | 3072 x 2048 |
| Main Stream | |
| 50Hz: | 20 fps(3072 × 2048,3072 x 1728,2944 x 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| 60Hz: | 20 fps (3072 × 2048,3072 x 1728,2944 x 1656), 25fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub Stream 50Hz: | 25fps (640 × 480, 640 × 360, 320 × 240) |
| 60Hz: | 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream | 50Hz: 25fps(1280 ×720, 640 × 360, 352 × 288) |
| 60Hz: | 30fps (1280 ×720, 640 × 360, 352 × 240 |
| Image Enhancement | BLC/3D DNR |
| Image Settings | Support rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web browser and client software |
| ROI (Region of Interest | ) Support 1 fixed region for main stream and sub stream separately |
| Day/Night | Switch Auto/Scheduled |
| NETWORK | |
| Network Storage | Support microSD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR Alarm Trigger Motion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login, HDD full, HDD error |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
| Standard ONVIF | (PROFILE S, PROFILE G), ISAPI |
| General Function | One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter General |
| Operating Conditions | -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25% 6W PoE(802.3af, class 3), 7W |
| IR Range | Up to 30 m |
| Protection Level I | P67 |
| DIMENSION | |
| Camera: | Φ70 × 155.03 mm (Φ2.76″ × 6.1″) |
| Package: | 216 × 121 × 118 mm (8.5″ × 4.76″ × 4.65″) |
| Weight Camera: | 410 g (0.9 lb.) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| DS-2CD2055FWD-I | 6MP Outdoor Mini Bullet Camera, H.265+, 30m IR, 120dB WDR, IP67, 4mm | $201.16 | Add to Cart | |
| DS-2CD2055FWD-I | 6MP Outdoor Mini Bullet Camera, H.265+, 30m IR, 120dB WDR, IP67, 2.8mm | $201.16 | Add to Cart | |
| DS-2CD2055FWD-I | 6MP Outdoor Mini Bullet Camera, H.265+, 30m IR, 120dB WDR, IP67, 6mm | $201.16 | Add to Cart | |
| DS-2CD2055FWD-I | 6MP Outdoor Mini Bullet Camera, H.265+, 30m IR, 120dB WDR, IP67, 8mm | $201.16 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Hikvision DS-1280ZJ-XS | Junction Box for Dome (Bullet) Camera | $24.26 | View Product |
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
| Filename | Size | ||
|---|---|---|---|
 |
DS2CD2055FWDI Datasheet.pdf | 297KB | Download |
|
DS2CD2055FWDI Quick Start Guide.pdf | 9MB | Download |
