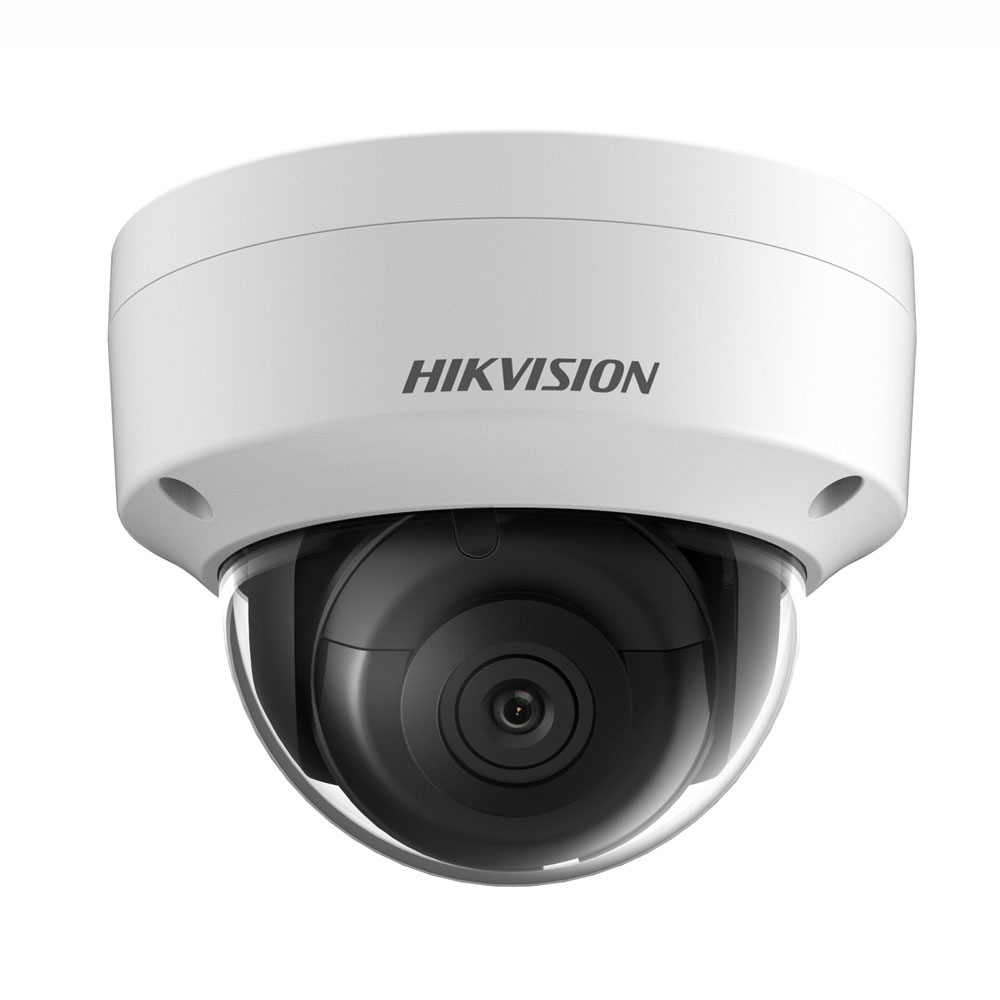

Hikvision DS-2CD2155FWD-IS
from $225.23 (incl. GST)
POSMarket SKU: Z14158
This model is available in 3 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.
5MP Fixed Dome Network Camera
Product Overview
Part of Hikvision's easy IP 3.0 range of cameras, the HIK-2CD2155S4BLK is a vandal proof outdoor IR dome camera that produces an exceptional 6MP high-resolution video. Powered by the latest innovation in image sensor technology and an ultra high definition image processing chipset from Amberella, it supports H.265 and H.265+ intelligent video compression, which reduces bandwidth/storage requirements by up to 50% and 80%, respectively. Providing an ideal combination of smart features and affordability, the camera includes 120dB true wide dynamic range (WDR) and built-in EXIR 2.0 infrared technology providing up to 30m visibility at night. With a 4mm lens, this camera provides a horizontal field of view of 78 degrees.
Rigorously tested, Hikvision's generation cameras have been designed to deliver 24/7 video surveillance with the clarity you expect from a Hikvision network camera.
Features
Rigorously tested, Hikvision's generation cameras have been designed to deliver 24/7 video surveillance with the clarity you expect from a Hikvision network camera.
Features
- 1/2.9" progressive scan CMOS
- 6MP resolution 3072x2048 at 20fps
- 4mm lens HVOF - 78 degrees
- H.265, H.265+, H.264+, H.264
- Third stream
- 120dB wide dynamic range (WDR)
- Backlight compensation, 3D digital noise reduction
- Up to 30m infrared
- Audio/alarm IO
- IP67, IK10
- Line crossing, intrusion, object abandoned, object removed and face detection
- Supports on-board storage, up to 128 GB
- 802.3af PoE or 12VD

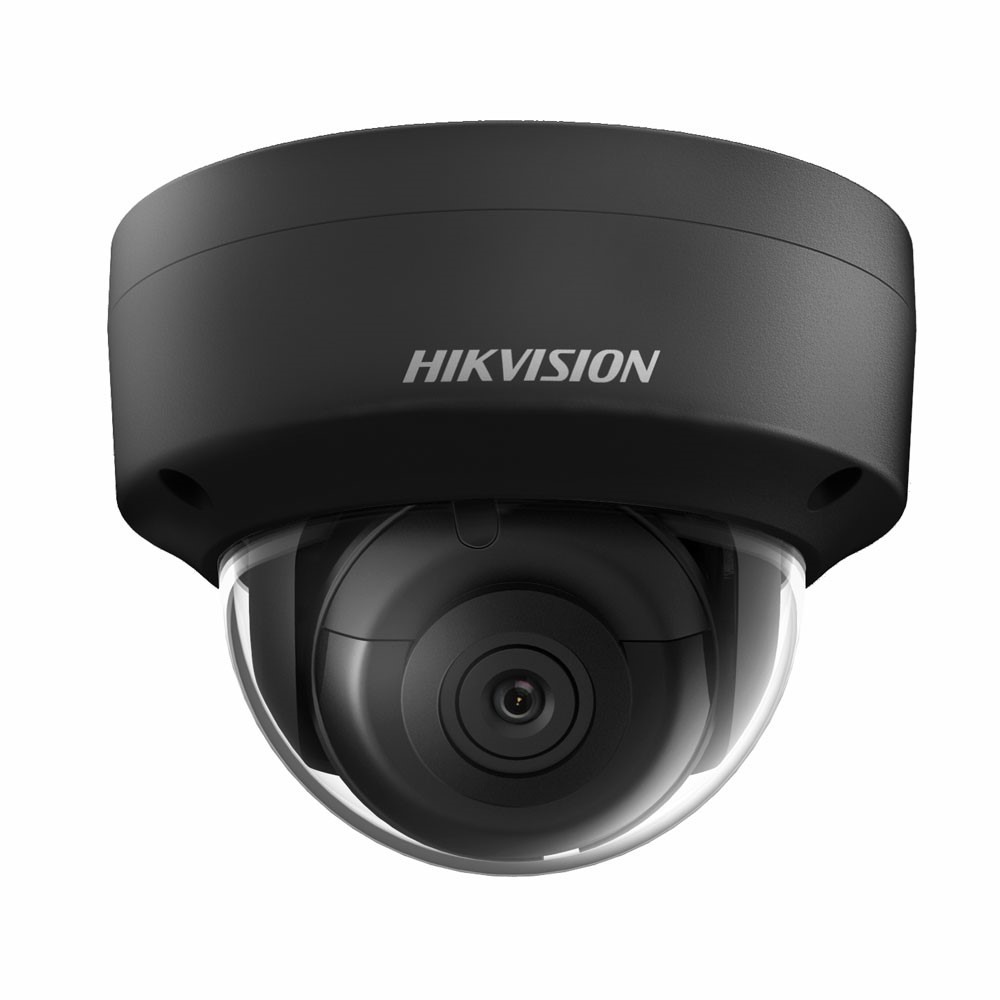

- Shadow series - black housing
Product Specifications
| CAMERA | |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Min. Illumination Color: | 0.01 lux @(F1.2, AGC ON), 0 lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter S | upport |
| LENS | |
| 2.8 mm | horizontal field of view: 97° |
| 4 mm | horizontal field of view: 78° |
| 6 mm | horizontal field of view: 60° |
| 8 mm | horizontal field of view: 39.5° |
| 12 mm | horizontal field of view: 19° |
| Lens Mount | M12 |
| Iris | F2.0 |
| Day &Night | IR cut filter |
| DNR | 3D DNR |
| Wide Dynamic Range | 120dB |
| 3-Axis Adjustment | Pan: 0° to 355° , tilt: 0° to 75°, rotate: 0° to 355° |
| COMPRESSION STANDARD | |
| Video Compression | |
| Main stream: | H.265/H.264 |
| Sub stream: | H.265/H.264/MJPEG |
| Third stream: | H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Support |
| H.265 Type | Main Profile |
| H.265+ | Support |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Audio Compression (-S) | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate (-S) | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| AUDIO (-S) | |
| Environment Noise Filtering | Support |
| Audio I/O | Support, mono soundtrack |
| Sampling Rate | 8kHz/16kHz/32kHz/44.1kHZ/48kHz |
| SMART FEATURE SET | |
| Behavior Analysis | Line crossing detection, intrusion detection, unattended baggage detection, object removal detection |
| Line Crossing Detection | Cross a pre-defined virtual line, up to 1 pre-defined virtual lines supported |
| Intrusion Detection | Enter and loiter in a pre-defined virtual region, up to 1 pre-defined virtual regions supported |
| Object Removal Detection | Objects removed from the pre-defined region, such as the exhibits on display. |
| Unattended Baggage Detection | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
| Face Detection | Human face appears in the image can be detected and trigger linkage method |
| GENERAL | |
| Operating Conditions | -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC +/- 25%, 6.2 W; PoE(802.3af, class 3), 9 W |
| IR Range | Up to 30 m |
| Protection Level | IP67, IK10 |
| Dimension | |
| Camera: | Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″) |
| Package: | 134 × 134 × 108 mm (5.27″ × 5.27″ × 4.25″) |
| Weight | Camera: 500 g (1.1 lb.) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| DS-2CD2155FWD-IS | 5MP Shadow Series Outdoor Dome Camera, H.265+, 30m IR, IP67, I/O, 4mm | $237.74 | Add to Cart | |
| DS-2CD2155FWD-I | 5MP Outdoor Dome Camera, H.265+, 30m IR, 120dB WDR, IP67, IK10, 12mm | $225.23 | Add to Cart | |
| DS-2CD2155FWD-IS | 5MP Shadow Series Outdoor Dome Camera, IR, WDR, IP67, IK10, 2.8mm | $225.23 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Hikvision DS-1280ZJ-DM18 | Junction Box for Dome Camera | $19.64 | View Product |
| Hikvision DS-1275ZJ | Vertical Pole Mount Bracket | $41.58 | View Product |
| Hikvision DS-1250ZJ | Water-proof shade for Outdoor Dome Camera | $17.33 | View Product |
| Hikvision DS-1271ZJ-110 | Pendant Mount Bracket | $65.84 | View Product |
| Hikvision DS-1272ZJ-110B | Dome camera wall mounting with junction box | $60.06 | View Product |
| Hikvision DS-1259ZJ | Junction- Inclined ceiling mount | $8.09 | View Product |
| Hikvision DS-1272ZJ-110 | Dome camera aluminum wall mount bracket | $34.65 | View Product |
| Hikvision DS-1258ZJ | Wall Mount Bracket for mini dome or dome camera, black or white | $13.86 | View Product |
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
| Filename | Size | ||
|---|---|---|---|
 |
DS-2CD2155FWD-IS Datasheet | 2MB | Download |
|
DS2CD2155FWDIS Quick Start Guide.pdf | 3MB | Download |
|
DS2CD2155FWDIS User Manual.PDF | 11MB | Download |
