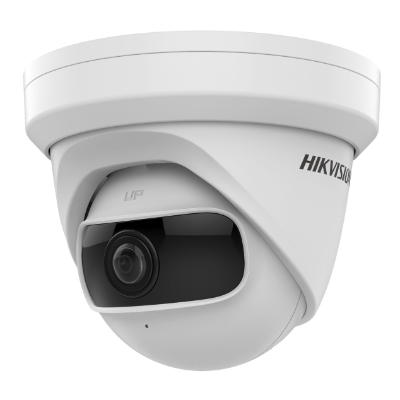

Hikvision DS-2CD2345G0P-I

$265.65 (incl. GST)

POSMarket SKU: Z14118

DS-2CD2345G0P-I: 4MP 180° Indoor Wide Angle Turret Camera, H.265, IR, WDR, 1.68mm Lens

4MP 180deg Indoor Wide Angle Turret Camera

Product Rating
Product Overview
Hikvision completes its 4MP range with their super wide-angle indoor turret camera. With a field of view of 180 degrees, this camera provides an unprecedented level of situational awareness at such an affordable price. Its wide coverage area gives users the ability to view and review events with complete context and continuity. It supports 120dB true wide dynamic range (WDR) and includes built-in infrared technology for visibility of up to 10m at night, while maintaining image clarity in extreme backlight and night conditions.

The HIK/ DS-2CD2345G0P-I or DS-2CD2345G0P-I super wide-angle turret camera is ideal for wide area applications such as retail shops, foyers and receptions. This camera replaces two traditional cameras and reduces the number of channels on an NVR or VMS solution, the storage requirements, cabling and labour. This technology creates a smarter, more cost-effective solution.

Features
  • 1/2.7" progressive scan CMOS
  • 2688 x 1520 at 25fps
  • 1.68mm ultra wide-angle fixed lens
  • 120dB WDR
  • H.265+, H.265, H.264+, H.264
  • Built-in micro SD/SDHC/SDXC card slot, up to 256 GB
  • 3-Axis adjustment
Product Specifications
Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination
Color: 0.028 Lux @ (F2.0, AGC ON)
B&W: 0.0028 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Day & Night IR Cut Filter
WDR 120 dB
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens Type Fixed lens, 1.68 mm
Aperture F2.0
FOV 1.68 mm, horizontal FOV: 180° , vertical FOV: 101° , diagonal FOV: 180°
Lens Mount M12
Illuminator
IR Range Up to 10 m
Wavelength 850 nm
Video
Max. Resolution 2688 x 1520
Main Stream
50Hz: 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 24fps (2688 × 1520), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
SubStream
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps(640 × 480, 640 × 360, 320 × 240)
Video Compression
Main stream: H.265+/H.264+/H.265/H.264
Sub-stream: H.265/H.264/MJPEG
H.264 Type Main Profile/High Profile
H.265 Type Main Profile
Video Bit Rate 32 Kbps to 16 Mbps
Scalable Video Coding (SVC) H.264 and H.265 encoding support General
Web Client Language32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via email, pixel counter
Reset Reset via reset button on camera body, web browser and client software
Startup and Operating Conditions-10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing)
Storage Conditions 10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing)
Power Supply12 VDC +/- 25%, Φ 5.5 mm coaxial power plug; reverse polarity protection; PoE (802.3af,type 1, class 3)
Power Consumption and Current 12 VDC, 0.48 A, max. 5.8 W; PoE (802.3af, 36 V to 57 V), 0.19 A to 0.12 A, max. 6.8W
Material Metal & Plastic
Dimension
Camera: Φ 127.3 × 104.1 mm (Φ 5" × 4.1")
With package: 150 × 150 × 141 mm (5.9" × 5.9" × 5.6")
WeightCamera: Approx. 520 g (1.1 lb.) With package: Approx. 700 g (1.5 lb.)
ModelDescriptionPriceStock
DS-2CD2345G0P-I 4MP 180° Indoor Wide Angle Turret Camera, H.265, IR, WDR, 1.68mm Lens $265.65
Call
 Add to Cart
ModelDescriptionPrices From
Hikvision DS-1280ZJ-M Junction Box for Dome Camera $40.43 View Product
Hikvision DS-1273ZJ-130-TRL Wall Mount Bracket $46.20 View Product
Hikvision DS-1280ZJ-DM8 CCTV Camera Bracket, White or Black $17.33 View Product
Hikvision DS-1276ZJ Corner Mount, Bracket $31.19 View Product
Hikvision DS-1281ZJ-M Inclined Ceiling Mount Bracket $40.43 View Product
Hikvision DS-1275ZJ-SUS Horizontal Pole Mount $58.91 View Product
Hikvision DS-1273ZJ-130 Wall Mount Bracket to suit 7xx and 41xx Dome Cameras $40.43 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document DS2CD2345G0PI data sheet.pdf 1MB Download
PDF Document DS2CD2345G0PI quick start guide.pdf 3MB Download
