POSMarket SKU: Z14103
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

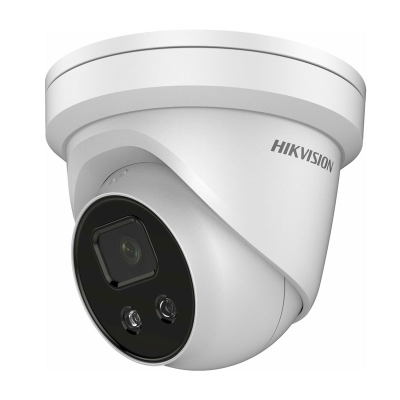

4 MP AcuSense Fixed Turret Network Camera
| CAMERA | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Min. Illumination | 0.007 Lux @ (F1.2, AGC ON), 0.012 Lux @ (F1.6, AGC ON) |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Focal length | 2.8/4/6 mm |
| Focus | Fixed |
| Aperture | F1.6 |
| FOV | |
| 2.8 mm, horizontal FOV: | 104°, vertical FOV: 58°, diagonal FOV: 124° |
| 4 mm, horizontal FOV: | 83°, vertical FOV: 44°, diagonal FOV: 99° |
| 6 mm, horizontal FOV: | 51°, vertical FOV: 28°, diagonal FOV: 58° |
| Lens Mount | M12 |
| Day &Night | IR cut filter |
| DNR | 3D DNR |
| Wide Dynamic Range | 120dB |
| 3-Axis Adjustment | Pan: 0° to 360°, tilt: 0° to 70°, rotate: 0° to 360° |
| COMPRESSION STANDARD | |
| Video Compression Main stream: | H.265/H.264 |
| Sub stream: | H.265/H.264/MJPEG |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main stream supports |
| H.265 Type | Main Profile |
| H.265+ | Main stream supports |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| IMAGE | |
| Max. Resolution 2 | 688 × 1520 |
| MAIN STREAM | |
| 50Hz: | 25fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| 60Hz: | 30fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub Stream | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 576, 640 × 480, 352 × 288) |
| Image Enhancement | BLC/3D DNR |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| ROI (Region of Interest) | Support 1 fixed region for main stream and sub stream separately |
| Day/Night | Switch Day/Night/Auto/Schedule |
| NETWORK | |
| Network Storage | Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR Alarm Trigger Tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| General Function | One-key reset, anti-filter |
| Firmware Version | V5.5.72 |
| API ONVIF | (PROFILE S, PROFILE G), ISAPI |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users 3 levels: Administrator, Operator and User |
| Client | iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500 |
| Web Browser | IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ |
| INTERFACE | |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board Storage | Built-in micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button | Yes |
| SVC | H.265 encoding and H.264 encoding support |
| SMART FEATURE SET | |
| Behavior Analysis | Line crossing detection, intrusion detection, region entrance detection, region exit detection, false alarm reduction by human and vehicle target classification based on deep learning. *When H265+, three streams or motion detection is enabled, the behavior analyses (including line crossing detection, intrusion detection, region entrance detection and region exiting detection) are not supported. |
| GENERAL | |
| Operating Conditions | -30 °C to +50 °C (-22 °F to +122 °F), humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC± 25%,5.5 mm coaxial power plug PoE (802.3af, class 3) |
| Power Consumption | 12 VDC, 0.7 A, max: 8.5 W PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max: 10 W |
| IR Range | Up to 50 m |
| Wavelength | 850 nm |
| Protection Level | IP67 |
| Material Camera: | Metal, trim ring: Plastic |
| DIMENSION | |
| Camera: | 138.3 × 126.3 mm (Φ 5.4" × 5") |
| With package: | 170 × 170 × 150 mm (7" × 7" × 5.9") |
| Weight Camera: | 430 g (0.9 lb.) |
| With package: | 733 g (1.6 lb.) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| DS-2CD2346G1-I | 4MP Outdoor AcuSense Turret Camera, H.265, WDR, 50m IR, IP67, 2.8mm | $280.09 | Add to Cart | |
| DS-2CD2346G1-I | 4MP Outdoor AcuSense Turret Camera, H.265, WDR, 50m IR, IP67, 4mm | $280.09 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Hikvision DS-1271ZJ-140 | Pendant Mount Bracket | $87.78 | View Product |
| Hikvision DS-1273ZJ-140 | Wall Mounting Bracket for Dome Camera. | $35.81 | View Product |
| Hikvision DS-1273ZJ-140B | Wall Mount Bracket with Junction Box | $77.39 | View Product |
| Hikvision DS-1280ZJ-DM21 | Junction Box to suit DS-2CD23xxxGx-x Turrets. Comes in White or Black | $23.10 | View Product |
| Hikvision DS-1271ZJ-130-TRL | Pendant Mount Bracket | $69.30 | View Product |
| Hikvision DS-1276ZJ | Corner Mount, Bracket | $31.19 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
DS2CD2346G1I datasheet | 1MB | Download |
|
DS2CD2346G1I Quick start guide.pdf | 22MB | Download |
