Hikvision DS-2CD2346G2-ISU/SL
from $407.00 (incl. GST)
POSMarket SKU: Z18047
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

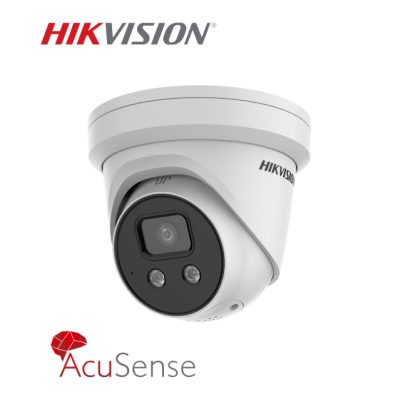

4MP AcuSense Strobe Light (-SL) and Audible Warning Fixed Turret Network Camera
Product Overview
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human or vehicle target classification alarms to front- and back-end devices. The system can greatly reduce false alarms generated by targets other than humans or vehicles, vastly improving alarm efficiency and effectiveness.
Features
Features
- Max. 2688 x 1520 @30fps
- 2.8 mm/4 mm/6 mm fixed lens
- DC12V & PoE (802.3af, class 3)
- H.264, H.264+, H.265, H.265+
- 120dB WDR
- Built-In two-way audio
- Built-in micro SD/SDHC/SDXC slot, up to 256 GB
- 0.003 Lux @ (F1.4, AGC ON), 0 Lux with IR
- Powered by Darkfighter
- IR range up to 30m
- IP67 water and dust resistant
- Face capture
- Line crossing detection, intrusion detection, region entrance detection, region exiting detection
- Mobile Monitoring via Hik Connect
Product Specifications
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2688 x 1520 |
| Min. Illumination | Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens | |
| Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 123°
4 mm, horizontal FOV 83°, vertical FOV 45°, diagonal FOV 98° 6 mm, horizontal FOV 53°, vertical FOV 29°, diagonal FOV 62 ° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.4 |
| DORI | |
| DORI | 2.8 mm: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m 4 mm: D: 80.0 m, O: 31.7 m, R: 16.0 m, I: 8.0 m 6 mm: D: 120.0 m, O: 47.6 m, R: 24.0 m, I: 12.0 m |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | Yes |
| Video | |
| Main Stream | 50 Hz: 25 fps (2688× 1520, 1920 × 1080, 1280 ×
720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 ×
360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 ×
360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 3 60) *Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings. |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region Of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Audio | |
| Audio Type | Mono sound |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage | MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
| Built-In Microphone | Yes |
| Built-In Speaker | Power: 1.2 W. Max. sound pressure level: 10 cm: 95 dB. |
| Audio | 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω , interface type: non-equilibrium |
| Alarm | 1 input, 1 output (max. 24 VDC/24 VAC, 500 mA) |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, and exception |
| Smart Event | Scene change detection |
| Linkage | Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, strobe light, audible warning, send email |
| Deep Learning Function | |
| Face Capture | Yes |
| General | |
| Power | 12 VDC± 25%, 0.65 A, max. 7.8 W, Ø5.5 mm coaxia
l power plug, reverse polarity protection PoE: 802.3af, Class 3 , 36 V to 57 V, 0.25 A to 0.15 A, max. 8.8 W |
| Dimension | Ø138.3 mm × 124.5 mm (Ø5.4" × 4.9" ) |
| Package Dimension | 170 mm × 170 mm × 150 mm (6.9" × 6.9" × 5.9
") Approx. 825 g (1.8 lb.) |
| With Package Weight | Approx. 1120 g (2.5 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F) . Humidity 95% or less (non-condensing) |
| Startup And Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F ). Humidity 95% or less (non-condensing) |
| Language | 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 ); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 ); BIS (IS 13252(Part 1): 2010+A1: 2013+A2: 2015); LOA (IEC/EN 60950-1) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| DS-2CD2346G2-ISU/SL | Hikvision 4MP AcuSense IR Fixed Turret Network Camera, 4mm | $407.00 | Add to Cart | |
| DS-2CD2346G2-ISU/SL | Hikvision 4MP AcuSense IR Fixed Turret Network Camera, 6mm | $407.00 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Hikvision DS-1271ZJ-140 | Pendant Mount Bracket | $87.78 | View Product |
| Hikvision DS-1273ZJ-140 | Wall Mounting Bracket for Dome Camera. | $35.81 | View Product |
| Hikvision DS-1273ZJ-140B | Wall Mount Bracket with Junction Box | $77.39 | View Product |
| Hikvision DS-1280ZJ-DM21 | Junction Box to suit DS-2CD23xxxGx-x Turrets. Comes in White or Black | $23.10 | View Product |
| Hikvision HS-TF-H1I | MicroSD Card for Surveillance | $50.82 | View Product |
| Hikvision DS-1271ZJ-130-TRL | Pendant Mount Bracket | $69.30 | View Product |
| Hikvision DS-1276ZJ | Corner Mount, Bracket | $31.19 | View Product |
| Hikvision DS-1275ZJ-SUS | Horizontal Pole Mount | $58.91 | View Product |
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
| Filename | Size | ||
|---|---|---|---|
 |
DS-2CD2346G2-ISU SL Datasheet | 1MB | Download |
|
DS2CD2346G2ISU_SL User Manual.PDF | 11MB | Download |
