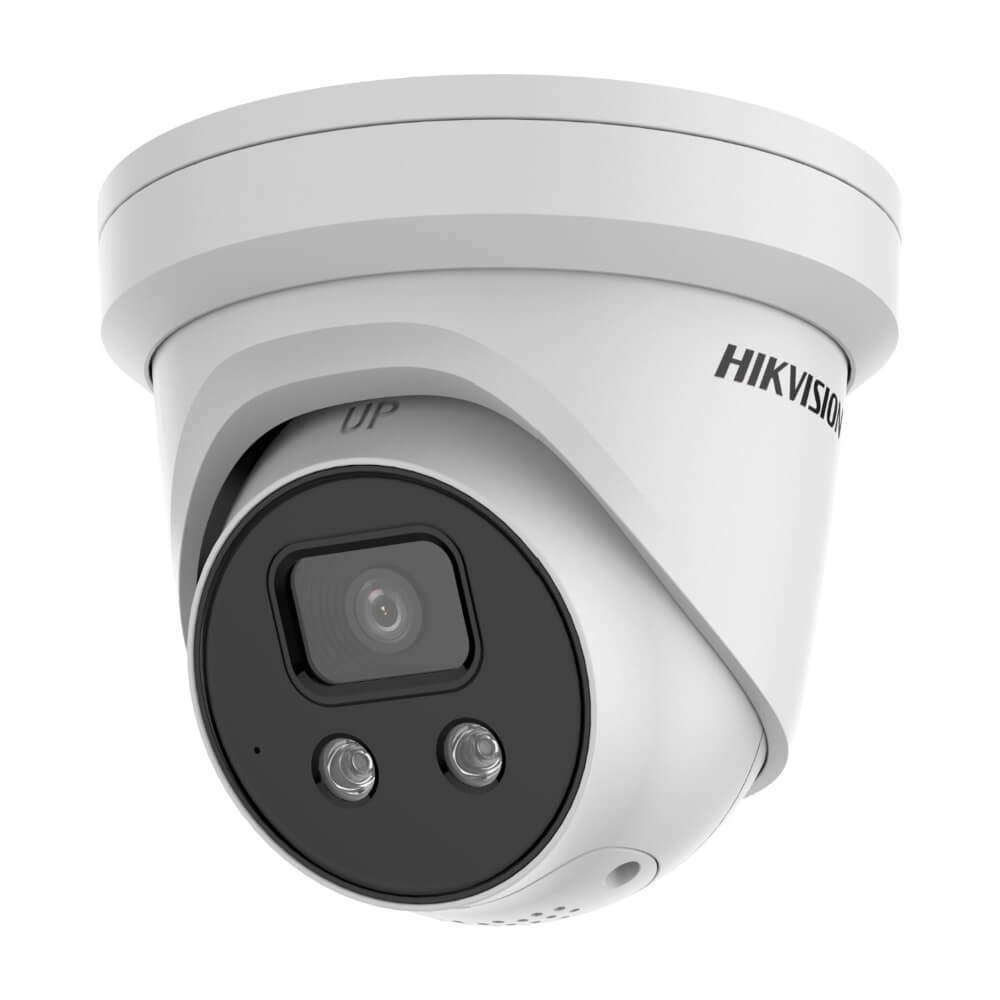

Hikvision DS-2CD2366G2-ISU/SL
from $323.40 (incl. GST)
POSMarket SKU: Z14303
This model is available in 3 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.
6MP AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera
Product Overview
The Hikvision DS-2CD2366G2-ISU/SL also know as HIK-2CD23662USLx is a 6MP outdoor AcuSense gen 2 turret camera. Empowered by deep learning algorithms, Hikvision's AcuSense technology can distinguish people and vehicles from other moving objects, such as falling leaves or small animals. While originally created with the purpose of preventing false alarms, AcuSense technology offers users several other key benefits such as advanced analytics, active deterrence and timely alerts.
The most paramount feature with the AcuSense Gen 2 cameras is the analytic alert which will generate alarm events that are searchable when reviewing recorded footage for specific incidents. This saves many man hours of wasted time reviewing irrelevant video trying to identify an event, saving the end customer time and money. The inclusion of two-way audio allows customisable warnings to be played when an event takes place or automatically trigger the built-in alarm siren and strobe light.
Features
The most paramount feature with the AcuSense Gen 2 cameras is the analytic alert which will generate alarm events that are searchable when reviewing recorded footage for specific incidents. This saves many man hours of wasted time reviewing irrelevant video trying to identify an event, saving the end customer time and money. The inclusion of two-way audio allows customisable warnings to be played when an event takes place or automatically trigger the built-in alarm siren and strobe light.
Features
- 6MP resolution
- Excellent low-light performance with powered by DarkFighter technology
- 120dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
- Provides real-time security via built-in two-way audio
- IP67 rated
Product Specifications
| Camera | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 2688 x 1520 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Angle Adjustment Pan: | 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens | |
| Focal Length & FOV | |
| 2.8 mm | horizontal FOV 111.9°, vertical FOV 60.5°, diagonal FOV 133.6° |
| 4 mm | horizontal FOV 95.2°, vertical FOV 50.6°, diagonal FOV 114.7° |
| Lens Mount | M16 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| DORI | |
| 2.8 mm | D: 58.2 m, O: 23.1 m, R: 11.6 m, I: 5.8 m |
| 4 mm | D: 77 m, O: 30.5 m, R: 15.4 m, I: 7.7 m |
| Illuminator | |
| Supplement Light Type | White light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| Audio | |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Day/Night | Switch Auto, Schedule |
| Wide Dynamic Range | (WDR) 130 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/SDHC/SDXC slot, up to 256 GB |
| Built-in Microphone | Yes |
| Built-in Speaker | 1.2 W, 10 cm: 95 dB |
| Audio | 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm | Visual alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
| Reset Key | Yes |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| DS-2CD2366G2-ISU/SL | Hikvision 6MP AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera, 2.8mm, Black | $455.13 | Add to Cart | |
| DS-2CD2366G2-ISU/SL | Hikvision 6MP Outdoor AcuSense Gen 2 Turret Camera, IR, Mic, Strobe, Audio Alarm, 2.8mm | $323.40 | Add to Cart | |
| DS-2CD2366G2-ISU/SL | Hikvision 6MP Outdoor AcuSense Gen 2 Turret Camera, IR, Mic, Strobe, Audio Alarm, 4mm | $323.40 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Hikvision DS-1280ZJ-DM21 | Junction Box to suit DS-2CD23xxxGx-x Turrets. Comes in White or Black | $23.10 | View Product |
| Hikvision HS-TF-H1I | MicroSD Card for Surveillance | $50.82 | View Product |
| Hikvision DS-1271ZJ-130-TRL | Pendant Mount Bracket | $69.30 | View Product |
| Hikvision DS-1276ZJ | Corner Mount, Bracket | $31.19 | View Product |
| Hikvision DS-1281ZJ-M | Inclined Ceiling Mount Bracket | $40.43 | View Product |
| Hikvision DS-1275ZJ-SUS | Horizontal Pole Mount | $58.91 | View Product |
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
| Filename | Size | ||
|---|---|---|---|
 |
DS2CD2366G2ISU_SL Datasheet.pdf | 1MB | Download |
|
DS2CD2366G2ISU_SL User Manual.PDF | 11MB | Download |
