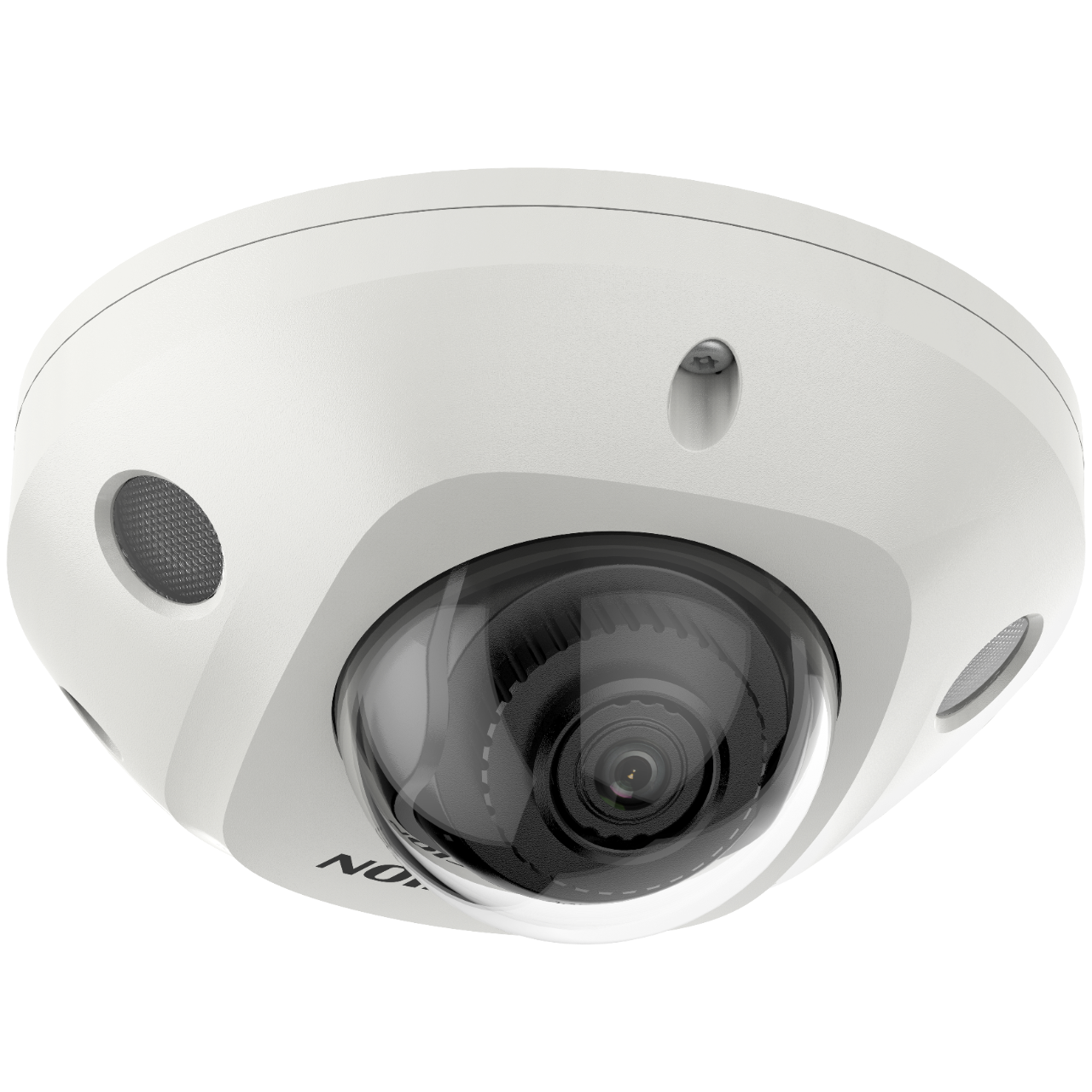

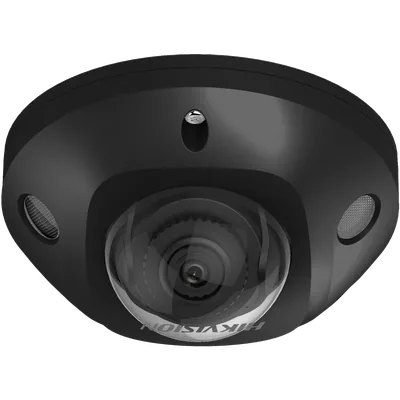

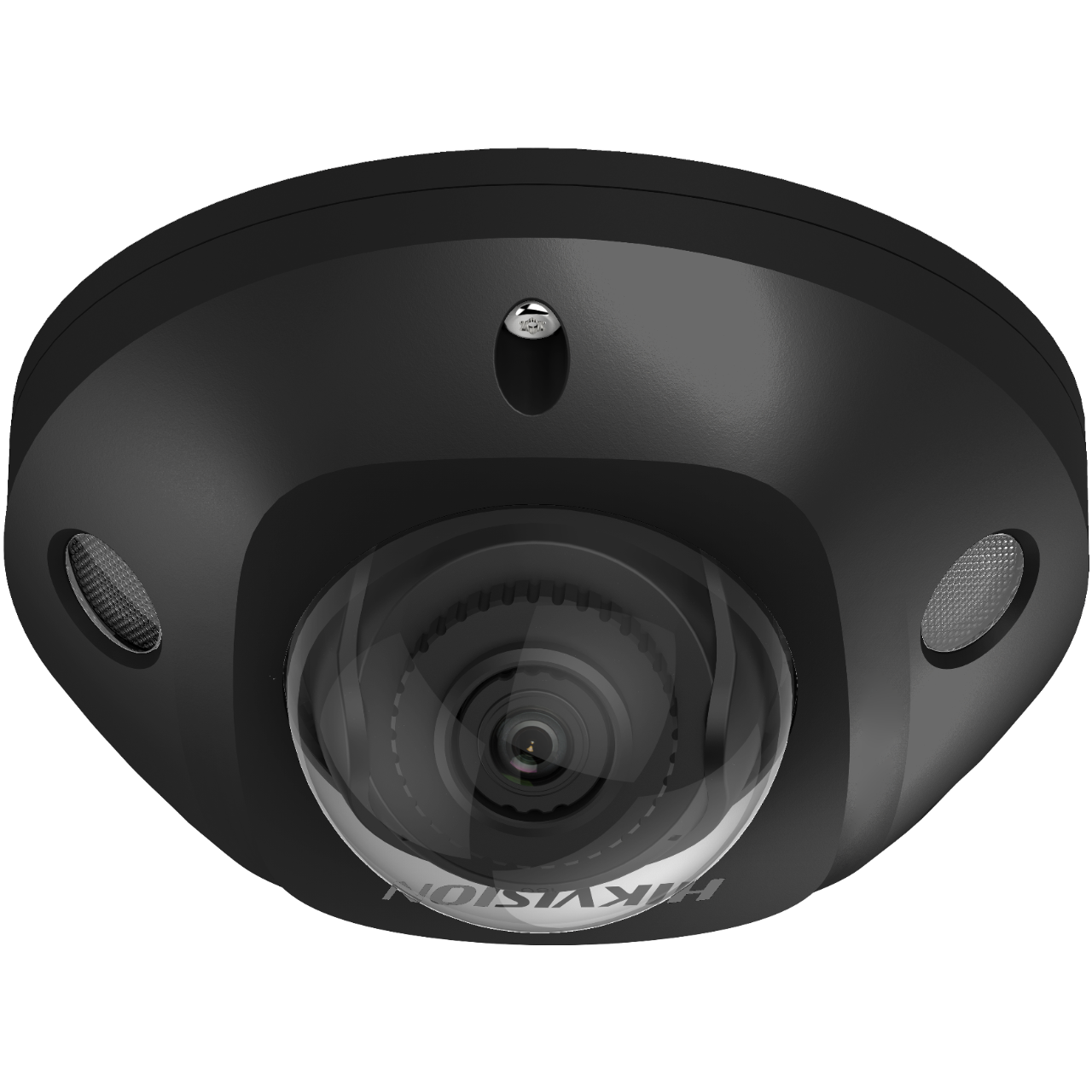

Hikvision DS-2CD2566G2-I(S)
from $339.76 (incl. GST)
POSMarket SKU: Z14307
This model is available in 6 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.
6MP Outdoor AcuSense Gen 2 Built-in Mic Fixed Mini Dome Network Camera
Product Overview
The Hikvision DS-2CD2566G2-I(S) also known as HIK-2CD2566G2IxSx is a 6MP outdoor AcuSense gen 2 mini dome camera. Empowered by deep learning algorithms, Hikvision's AcuSense technology can distinguish people and vehicles from other moving objects, such as falling leaves or small animals. While originally created with the purpose of preventing false alarms, AcuSense technology offers users several other key benefits such as advanced analytics, active deterrence and timely alerts.
The most paramount feature with the AcuSense gen 2 cameras is the analytic alert which will generate alarm events that are searchable when reviewing recorded footage for specific incidents. This saves many man hours of wasted time reviewing irrelevant video trying to identify an event, saving the end customer time and money. The camera also has an alarm input that can support third party devices such as an alarm system that can connect to the camera via a cable. Once the alarm input is triggered, it allows events to be received on the camera, which can be configured to send a notification to a mobile app or back to the Hikvison NVR or HikCentral to notify the end user.
Features
The most paramount feature with the AcuSense gen 2 cameras is the analytic alert which will generate alarm events that are searchable when reviewing recorded footage for specific incidents. This saves many man hours of wasted time reviewing irrelevant video trying to identify an event, saving the end customer time and money. The camera also has an alarm input that can support third party devices such as an alarm system that can connect to the camera via a cable. Once the alarm input is triggered, it allows events to be received on the camera, which can be configured to send a notification to a mobile app or back to the Hikvison NVR or HikCentral to notify the end user.
Features
- 6MP resolution
- Excellent low-light performance powered by DarkFighter technology
- 120dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Audio and alarm interface available
- IP67 and IK10 rated
Product Specifications
| Camera | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 3200 x 1800 |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Min. Illumination Color: | 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Day & Night | IR cut filter |
| Angle Adjustment Pan: | -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens | |
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | |
| 2.8 mm | horizontal FOV 105.2°, vertical FOV 51.9°, diagonal FOV 122° |
| 4 mm | horizontal FOV 83.9°, vertical FOV 44.5°, diagonal FOV 98° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Depth of Field | |
| 2.8 mm: | 2.2 m to ∞ |
| 4 mm: | 1.8 m to ∞ |
| 2.8 mm: | D: 64 m O: 26 m R: 13 m I: 6 m |
| 4 mm: | D: 85 m O: 34 m R: 17 m I: 9 m |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Audio | |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps(MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD card, up to 256 GB |
| Built-in Microphone | Yes |
| Audio | IS: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm | -IS: 1 input, 1 output (max. 12 VDC, 20 mA) |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection Scene change detection |
| Deep Learning Function | |
| Face Capture | Yes |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| DS-2CD2566G2-I | Hikvision 6MP Outdoor AcuSense Gen 2 Mini Dome Camera, Shadow Series, IR, IP67, 2.8mm, Black | $368.64 | Add to Cart | |
| DS-2CD2566G2-IS | Hikvision 6MP Outdoor AcuSense Gen 2 Mini Dome Camera, H.265, Mic, IR, IP67, 2.8mm | $363.83 | Add to Cart | |
| DS-2CD2566G2-IS | Hikvision 6MP Outdoor AcuSense Gen 2 Mini Dome Camera, H.265, Mic, IR, IP67, 4mm | $363.83 | Add to Cart | |
| DS-2CD2566G2-I | Hikvision 6MP Outdoor AcuSense Gen 2 Mini Dome Camera, H.265, 30m IR, IP67, 2.8mm | $349.39 | Add to Cart | |
| DS-2CD2566G2-I | Hikvision 6MP Outdoor AcuSense Gen 2 Mini Dome Camera, H.265, 40m IR, IP67, 4mm | $349.39 | Add to Cart | |
| DS-2CD2566G2-I | Hikvision 6MP Outdoor AcuSense Gen 2 Mini Dome Camera, Shadow Series, IR, IP67, 4mm, Black | $339.76 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Hikvision DS-1280ZJ-DM22 | Junction Box | $46.20 | View Product |
| Hikvision DS-1275ZJ-SUS | Horizontal Pole Mount | $58.91 | View Product |
| Hikvision DS-1272ZJ-120 | Wall Mount Bracket for Dome IP Camera | $36.96 | View Product |
| Hikvision DS-1272ZJ-120B | Wall Mount Bracket with junction box for Mini Dome Camera | $65.84 | View Product |
| Hikvision DS-1280ZJ-DM46 | Aluminum alloy indoor, outdoor junction box | $26.57 | View Product |
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
| Filename | Size | ||
|---|---|---|---|
 |
DS2CD2566G2IS Datasheet.pdf | 900KB | Download |
|
DS2CD2566G2IS User Manual.PDF | 11MB | Download |
Product Videos
No videos found for this product.
Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.
Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.
