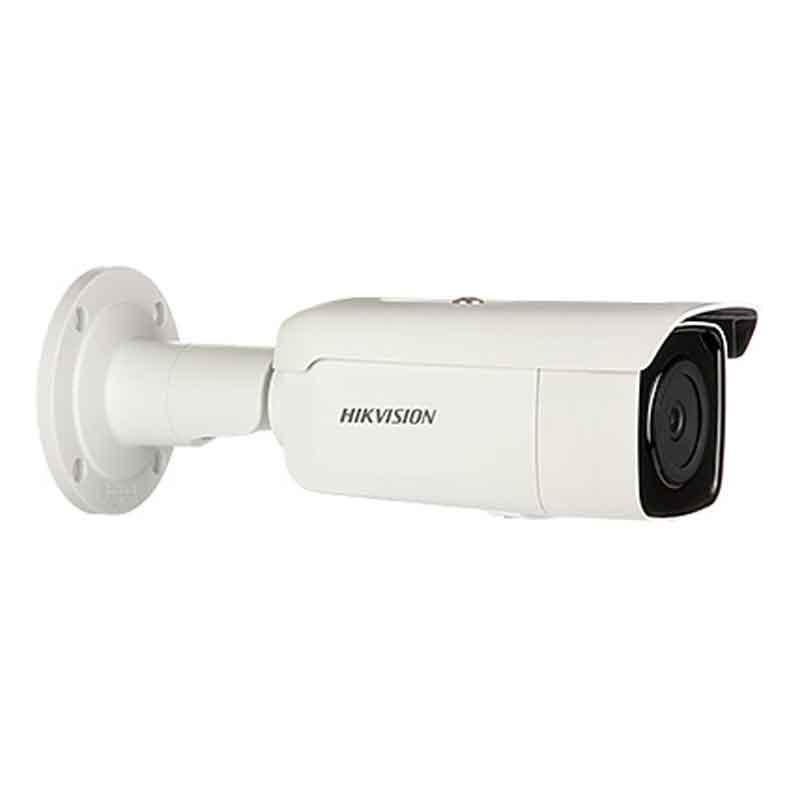

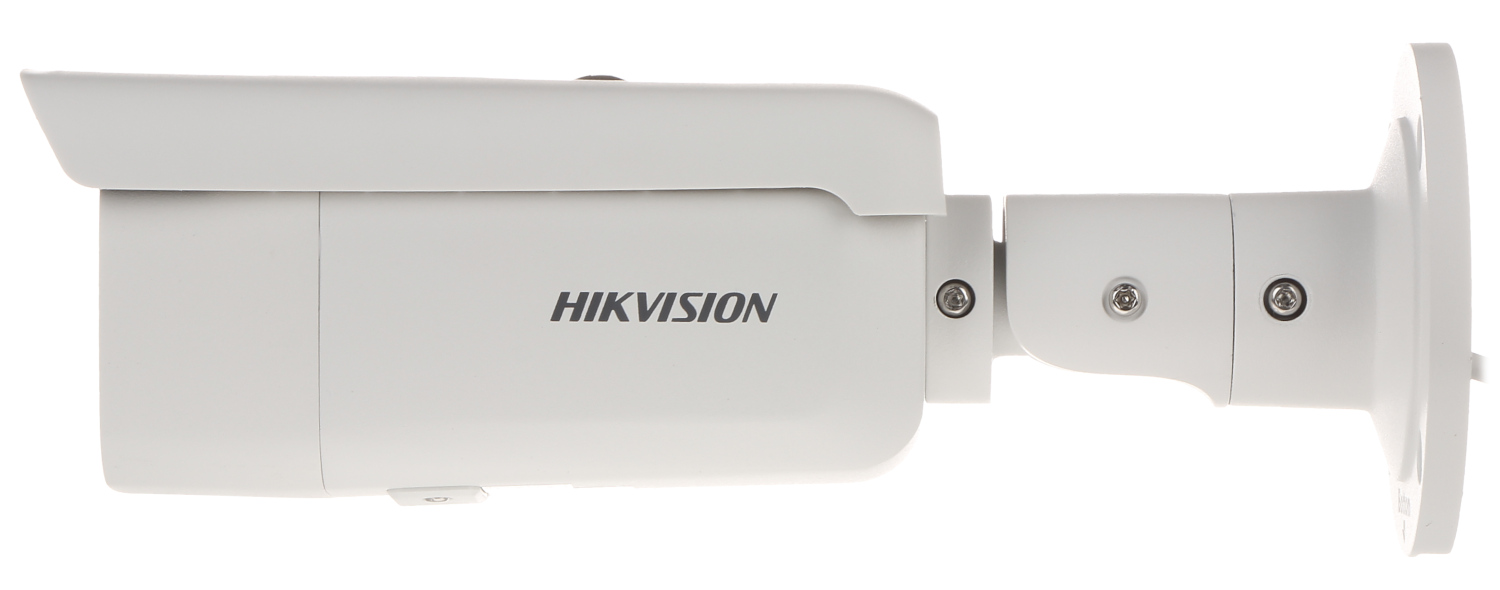

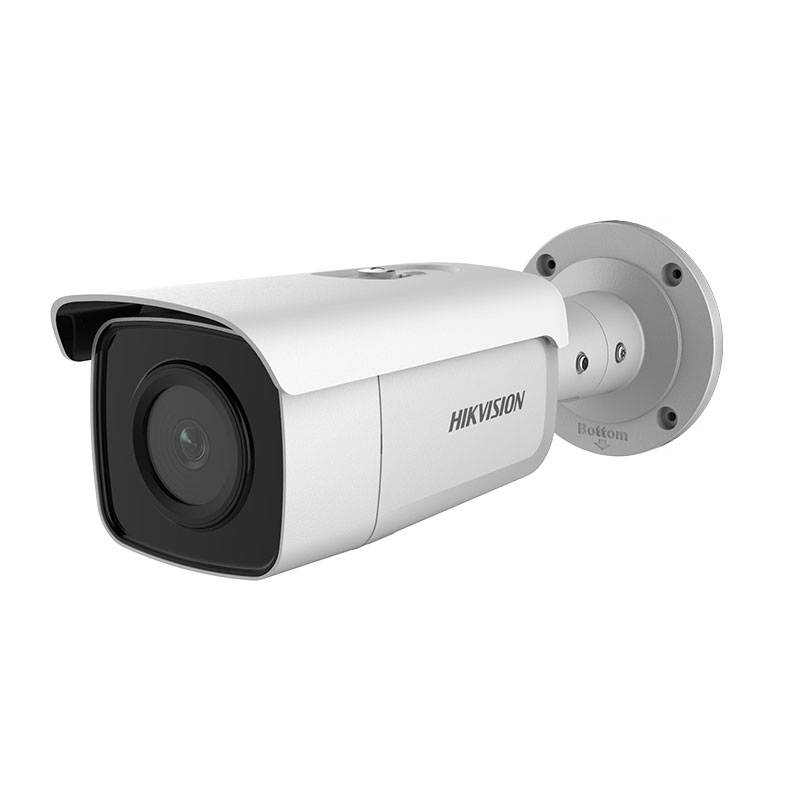

Hikvision DS-2CD2T46G1-2I
from $308.96 (incl. GST)
POSMarket SKU: Z14159
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.
4MP Outdoor AcuSense Bullet Camera, H.265
Product Overview
Part of Hikvision's AcuSense Series, the HIK-2CD2T46G12I2 is an outdoor-ready bullet camera. Powered by Darkfighter and with an IR rating of 50m, this camera is ready for any environment, day or night, where security is a must.
Features
Features
- Max. 2688 x 1520 resolution at 30fps
- 2.8mm fixed lens
- H.265+, H.264+, H.265, H.264
- 120dB WDR
- False alarm reduction by human and vehicle target classification based on deep learning
- Powered by Darkfighter
- 12 VDC and PoE (802.3af, class 3)
- 50m IR
- Supports on board storage, up to 128 GB
- IP67
- BLC/3D DNR/ROI
- Colour: 0.007 Lux at (F1.2, AGC ON), 0.012 Lux at (F1.6, AGC ON)
Product Specifications
| CAMERA | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Min. Illumination | 0.007 Lux @ (F1.2, AGC ON), 0.012 Lux @ (F1.6, AGC ON) |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Focal length | 2.8/4/6/8 mm |
| Focus | Fixed |
| Aperture | F1.6 |
| FOV | |
| 2.8 mm | horizontal FOV: 104°, vertical FOV: 58°, diagonal FOV: 124° |
| 4 mm | horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 99° |
| 6 mm | horizontal 51°, vertical FOV: 28°, diagonal FOV: 58° |
| 8 mm | horizontal FOV: 39°, vertical FOV: 21°, diagonal FOV: 45° |
| Lens Mount | M12 |
| Day &Night | IR cut filter |
| DNR | 3D DNR |
| Wide Dynamic Range | 120dB |
| 3-Axis Adjustment | Pan:0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| COMPRESSION STANDARD | |
| Video Compression Main stream: | H.265/H.264 |
| Sub stream: | H.265/H.264/MJPEG |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main stream supports |
| H.265 | Type Main Profile |
| H.265+ | Main stream supports |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| IMAGE | |
| Max. Resolution | 2688 x 1520 |
| Main Stream | |
| 50Hz: | 25fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| 60Hz: | 30fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| SubStream | |
| 50Hz: | 25fps (704 × 576, 640 × 480, 352 × 288) |
| 60Hz: | 30fps (704 × 576, 640 × 480, 352 × 288) |
| Image Enhancement | BLC/3D DNR |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| ROI (Region of Interest) | Support 1 fixed region for main stream and sub stream separately |
| Day/Night Switch | Day/Night/Auto/Schedule |
| NETYWORK | |
| Network Storage | Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| General Function | One-key reset, anti-filter |
| Firmware Version | V5.5.72 |
| API ONVIF (PROFILE S, PROFILE G), | ISAPI |
| GENERAL | |
| Operating Conditions | -30 °C to +50 °C (-22 °F to +122 °F),humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC+/- 25%, 5.5 mm coaxial power plug PoE (802.3at, class 4) |
| Power Consumption | |
| -2I: | 12 VDC, 0.9 A, Max: 10.5 W PoE: (802.3at, 42.5 V to 57 V), 0.3A to 0.1A, Max: 13 W |
| -4I: | 12 VDC, 1.2 A, Max: 14 W PoE: (802.3at, 42.5 V to 57 V), 0.4A to 0.2A, Max: 17 W |
| IR | |
| -2I: | 2LEDs, up to 50 m |
| -4I: | 4LEDs, up to 80 m |
| Wavelength | 850 nm |
| Protection Level | IP67 |
| Material Front cover: | metal, back cover: metal |
| Dimensions Camera: | Φ105 × 289.5 mm (Φ4.1″ × 11.4″) |
| Weight Camera: | 1100 g (2.4 lb.) |
| With package: | 1600 g (3.5 lb.) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| DS-2CD2T46G1-2I | 4MP Outdoor AcuSense Bullet Camera, H.265, WDR, 50m IR, IP67, 2.8mm | $308.96 | Add to Cart | |
| DS-2CD2T46G1-2I | 4MP Outdoor AcuSense Bullet Camera, H.265, WDR, 50m IR, IP67, 4mm | $308.96 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Hikvision DS-1280ZJ-S | Junction Box with Gland, white or black | $40.43 | View Product |
| Hikvision DS-1260ZJ | Junction Box | $26.57 | View Product |
| Hikvision DS-1275ZJ-S-SUS | Vertical Pole Mount Bracket | $51.98 | View Product |
| Hikvision DS-1276ZJ | Corner Mount, Bracket | $31.19 | View Product |
| Hikvision DS-1275ZJ-SUS | Horizontal Pole Mount | $58.91 | View Product |
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
| Filename | Size | ||
|---|---|---|---|
 |
DS-2CD2T46G1-2I Datasheet | 2MB | Download |
|
DS2CD2T46G12I_ 4I Quick Start Guide | 6MB | Download |
|
DS2CD2T46G12I_4I User Manual.pdf | 5MB | Download |
Product Videos
Unboxing Hikvision DS-2CD2T46G1-2I 4 MP IR Fixed Bullet Network Camera
