Hikvision DS-2CD2T47G1-L
from $308.96 (incl. GST)
POSMarket SKU: Z14131
This model is available in 3 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

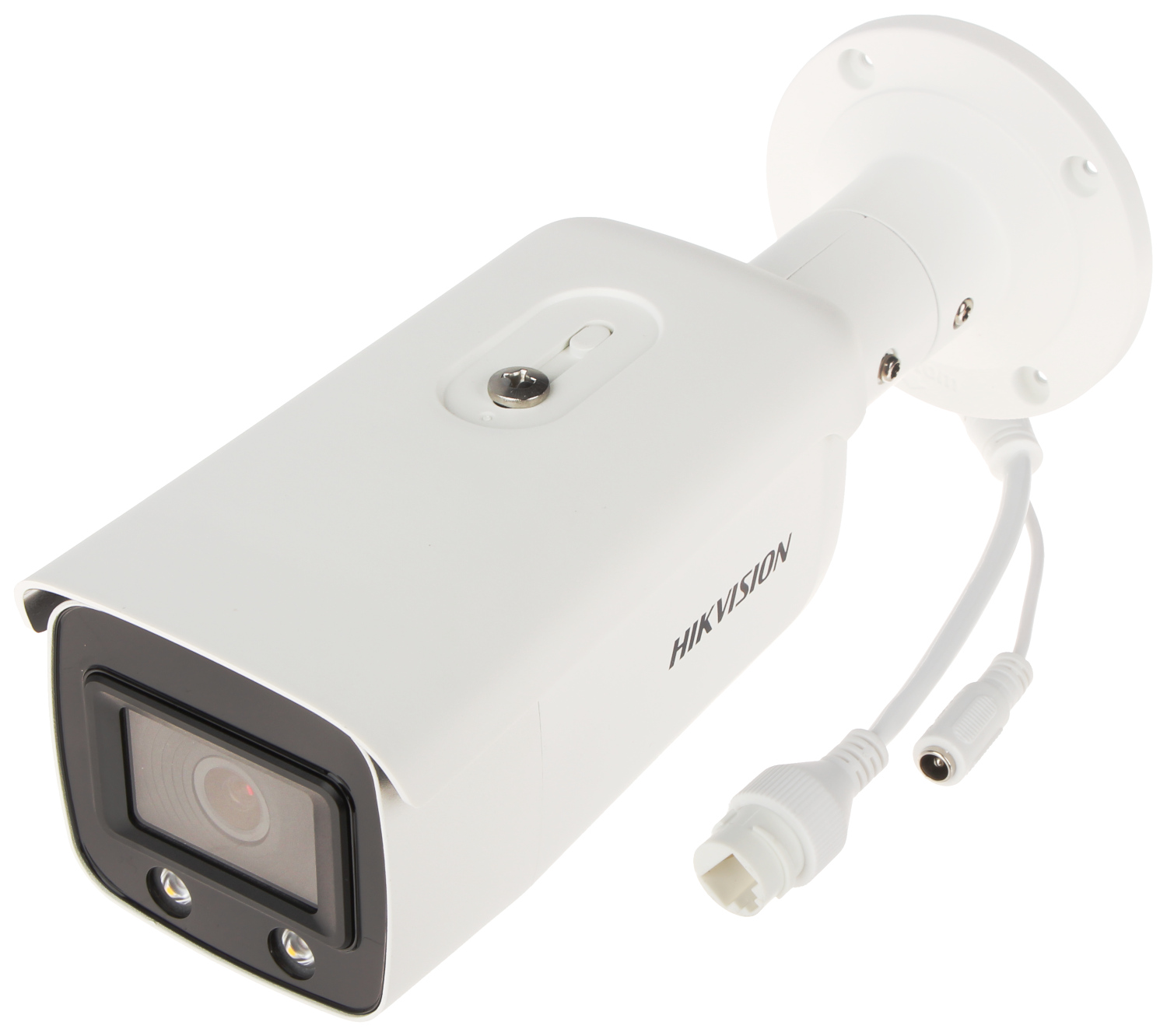

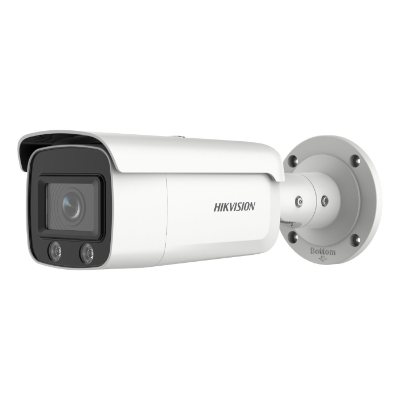

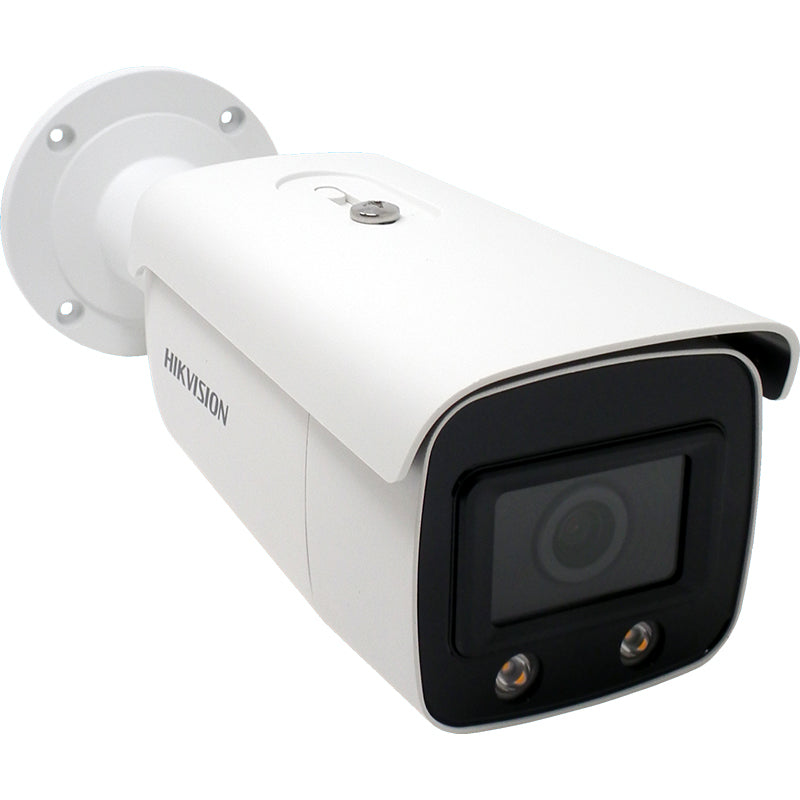

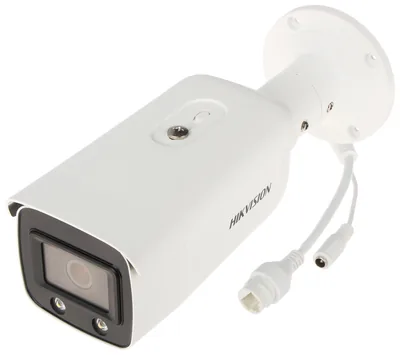

4MP ColorVu Fixed Bullet Outdoor Network Camera.
Product Overview
The Hikvision’s DS-2CD2T47G1-L ColorVu Fixed Bullet Outdoor Network Camera features an ƒ/1.0 lens aperture for maximum light gathering capability to provide full color imaging in extremely dark settings.
Features
Features
- Max. 2688 x 1520 at 30fps
- 4 mm/6 mm fixed lens
- H.265+, H.264+
- 120dB WDR
- IP67
- 12 VDC and PoE (802.3af, class 3)
- Built-in micro SD/SDHC/SDXC slot, up to 128G
- BLC/3D DNR/HLC/ROI
- 0.0014 Lux at (F1.0, AGC ON), 0 Lux with Light
- Full time colour
Product Specifications
| CAMERA | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Min. Illumination | 0.0014 @ (F1.0, AGC ON), 0 Lux with Light |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| DNR | 3D DNR |
| Wide Dynamic Range | 120dB |
| Angle Adjustment | Pan:0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| LENS | |
| Focal length | 4/6 mm |
| Aperture | F1.0 |
| Focus | Fixed |
| FOV | |
| 4 mm | horizontal FOV: 94°, vertical FOV: 48°, diagonal FOV: 115° |
| 6 mm | horizontal FOV:57°, vertical FOV: 31°, diagonal FOV: 67° |
| Lens Mount | M16 |
| COMPRESSION STANDARD | |
| Video Compression | |
| Main stream: | H.265/H.264 |
| Sub-stream: | H.265/H.264/MJPEG |
| Third stream: | H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main stream supports |
| H.265 Type | Main Profile |
| H.265+ | Main stream supports |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| SMART FEATURE SET | |
| Behavior Analysis | Line crossing detection, intrusion detection, object removal detection, unattended baggage detection |
| Exception Detection | Scene change detection |
| Face Detection | Yes |
| IMAGE | |
| Max. Resolution | 2688 x 1520 |
| Main Stream | |
| 50Hz: | 25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) |
| 60Hz: | 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) |
| Sub Stream | |
| 50Hz: | 25fps (640 × 480, 640 × 360, 320 × 240) |
| 60Hz: | 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream | |
| 50Hz: | 25fps (1280 × 720, 640 × 360, 352 × 288) |
| 60Hz: | 30fp s(1280 × 720, 640 × 360, 352 × 240) |
| Image Enhancement | BLC/3D DNR/HLC |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| Day/Night | Switch Day/Night |
| ROI (Region of Interest) | Support 1 fixed region for main stream and sub-stream separately |
| GENERAL | |
| Operating Conditions | -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC +/- 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3) |
| Power Consumption | 12 VDC, 0.7 A, max. 9.5 W PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 11 W |
| Visible Light Range | Up to 30m |
| Protection Level | IP67 |
| Material Front cover: | metal, back cover: metal |
| DIMENSION | |
| Camera: | Φ 105 × 290.7 mm (Φ 4.1" × 11.4") |
| With package: | 385 x190 x 180 mm (15.2" x 7.5" x 7.1") |
| Weight Camera: | 31200 g (2.6 lb.) |
| With package: | 1800 g (4 lb.) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| DS-2CD2T47G1-L | 4MP ColorVu Fixed Bullet Network Camera, 2.8mm | $441.38 | Add to Cart | |
| DS-2CD2T47G1-L | 4MP ColorVu Fixed Bullet Network Camera, 6mm | $441.38 | Add to Cart | |
| DS-2CD2T47G1-L | 4MP ColorVu Bullet Camera, 120db WDR, 30m White LED, IP67, 4mm | $308.96 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Hikvision DS-1280ZJ-S | Junction Box with Gland, white or black | $40.43 | View Product |
| Hikvision DS-1260ZJ | Junction Box | $26.57 | View Product |
| Hikvision DS-1275ZJ-S-SUS | Vertical Pole Mount Bracket | $51.98 | View Product |
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
| Filename | Size | ||
|---|---|---|---|
 |
DS-2CD2T47G1-L data sheet | 1MB | Download |
|
Bullet Network Camera Quick Start guide | 3MB | Download |
