Hikvision DS-2CD4024F
$586.16 (incl. GST)
POSMarket SKU: Z14225

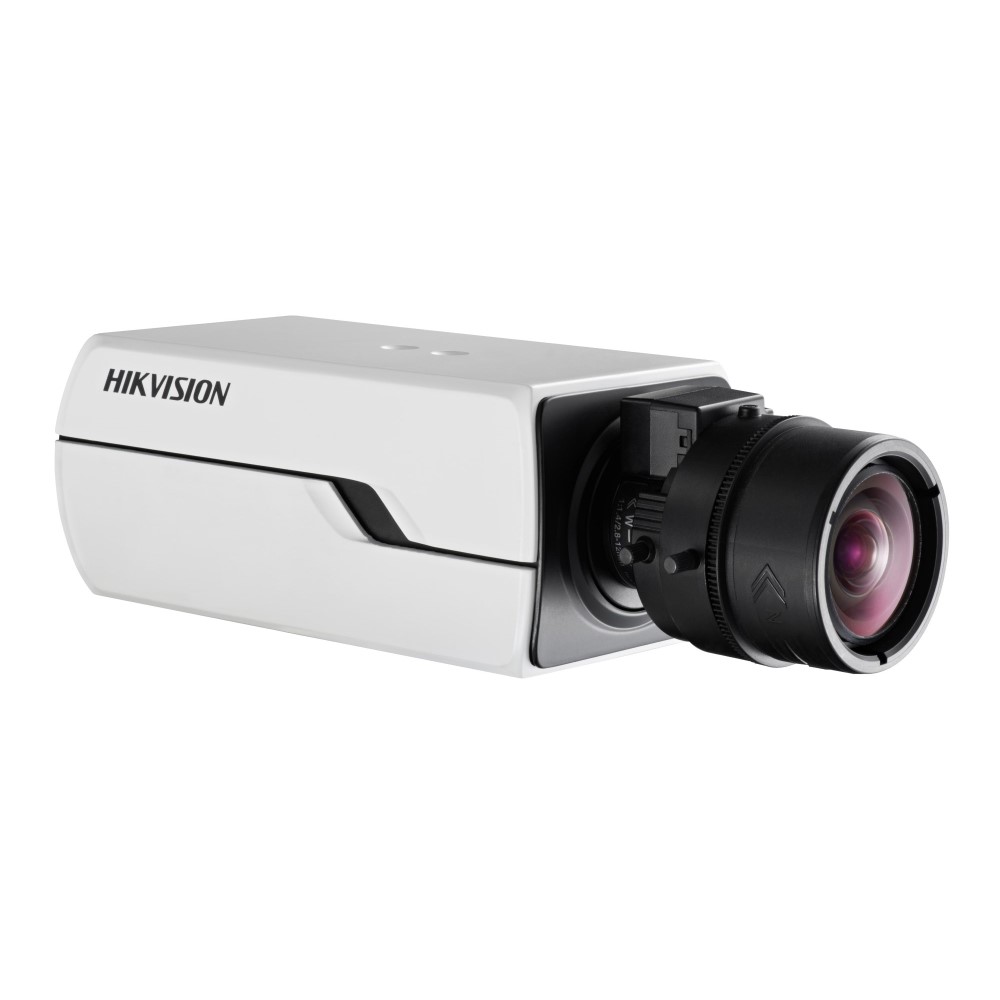

DS-2CD4024F: Hikvision 2MP Indoor Box Camera, Full HD, DWDR, 3D DNR, HLC
2MP Indoor Box Camera, Full HD, DWDR
Product Overview
Designed to fully meet all professional market requirements for efficient bandwidth and storage utilisation, as well as unparalleled image quality and customer convenience; with the introduction of their 4-line IP camera range, Hikvision once again aims to revolutionise!
Enriched with 'smart' technologies such as autofocus, defogging and intelligent video analytics, amongst many others, these 4-Line cameras are specifically designed to deliver a smart and convenient surveillance to the market. Hikvision's 4-line cameras can also be coupled with other Hikvision products including smart PTZ domes and video management software to deliver a truly outstanding solution for range of professional applications.
Features
Enriched with 'smart' technologies such as autofocus, defogging and intelligent video analytics, amongst many others, these 4-Line cameras are specifically designed to deliver a smart and convenient surveillance to the market. Hikvision's 4-line cameras can also be coupled with other Hikvision products including smart PTZ domes and video management software to deliver a truly outstanding solution for range of professional applications.
Features
- 1/2.8" progressive scan CMOS
- Up to 1920 x 1080 resolution
- Smart Codec
- Smart VQD
- Smart Face Detection
- Smart Audio Detection
- Intrusion Detection
- Two-way audio, built-in Mic
- 3D DNR, DWDR
- Defog, EIS, BLC, HLC
Product Specifications
| CAMERA | |
| Image sensor | 1/2.8" progressive scan CMOS |
| Min. Illumination | |
| Color: | 0.01 [email protected], AGC on |
| B/W: | 0.001 [email protected], AGC on |
| Shutter time | 1s ~ 1/100,000s |
| Slow shutter | Yes |
| Lens mount | C/CS mount |
| Auto iris | DC drive (-P: P-Iris) |
| Day & night | ICR (Auto/Schedule/Alarm Trigger) |
| Digital noise reduction | 3D DNR |
| Wide dynamic range | DWDR |
| Smart Focus | Auto Back Focus *only for -A model |
| COMPRESSION STANDARD | |
| H.264 codec | profile Baseline profile / main profile / high profile |
| Video bit rate | 32 Kbps ~ 16 Mbps |
| Audio compression | G.711/G.722.1/G.726/MP2L2 |
| Audio bit rate | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) |
| IMAGE | |
| Max. resolution | 1920 x 1080 |
| Frame rate | |
| 50 Hz: | 25fps (1920 x 1080), 25fps (1280 x 960), 25fps (1280 x 720) |
| 60 Hz: | 30fps (1920 x 1080), 30fps (1280 × 960), 30fps (1280 x 720) |
| 3rd stream Independent setting, up to: | 50Hz: 25fps (1920 x 1080), 60Hz: 30fps (1920 x 1080) |
| Image settings | Rotate mode, saturation, brightness, contrast, grayscale adjustable through client software or web browser |
| BLC | Yes, zone configurable |
| Picture overlay | 128 x 128, BMP 24bit, zone configurable |
| HLC | Yes |
| Defog | Yes |
| EIS | Yes |
| ROI | Support |
| NETWORK | |
| Network storage | NAS (Support NFS, SMB/CIFS) |
| Alarm trigger | Intrusion detection, motion detection, face detection, tampering alarm, defocus, network disconnect, IP address conflict, storage exception, line crossing detection |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Security | User authentication, watermark, IP address filtering, anonymous access |
| System | compatibility ONVIF, PSIA, CGI, ISAPI |
| INTERFACE | |
| Audio input | 1-ch 3.5mm audio interface, Mic in/Line in |
| Audio output | 1-ch 3.5mm audio interface |
| Communication interface | 1 RJ45 10M / 100M ethernet port, 1 RS-485 interface, 1 RS-232 interface |
| Alarm | I/O 1/1 |
| Video output | 1 Vp-p composite output (75 Ω / BNC) |
| On-board storage | Built-in micro SD/SDHC/SDXC card slot, up to 128GB |
| Reset | Yes |
| GENERAL | |
| Operating conditions | -30°C ~ 60°C (-22°F ~ 140°F),humidity 95% or less (non-condensing) |
| Power supply | 24VAC+/- 10%, 12 VDC +/- 10%, PoE (802.3af ) |
| Power consumption | Max. 6W (max. 9W with ICR on); -W: max. 7W (max. 10W with ICR on) |
| Dimensions | 69.8 × 58 × 145 mm (2.68” x 2.56” x 5.70”) |
| Weight 830g | (1.83 lbs) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| DS-2CD4024F | Hikvision 2MP Indoor Box Camera, Full HD, DWDR, 3D DNR, HLC | $586.16 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Hikvision DS-1293ZJ | Wall Mount to suit Full Body Cameras | $25.41 | View Product |
| Hikvision DS-1332HZ | Indoor Housing for DS-2CD40xx series cameras | $113.19 | View Product |
| Hikvision DS-1292ZJ | Indoor Wall Mount Bracket for Full Body Cameras | $19.64 | View Product |
| Hikvision DS-1331HZ-C | Outdoor Housing with Fan | $200.97 | View Product |
| Hikvision DS-1331HZ-HW | Outdoor Housing with heater, fan, wiper | $236.78 | View Product |
| Hikvision DS-1269ZJ | Pendent Mounting Bracket | $100.49 | View Product |
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
| Filename | Size | ||
|---|---|---|---|
 |
DS2CD4024F Datasheet.pdf | 182KB | Download |
