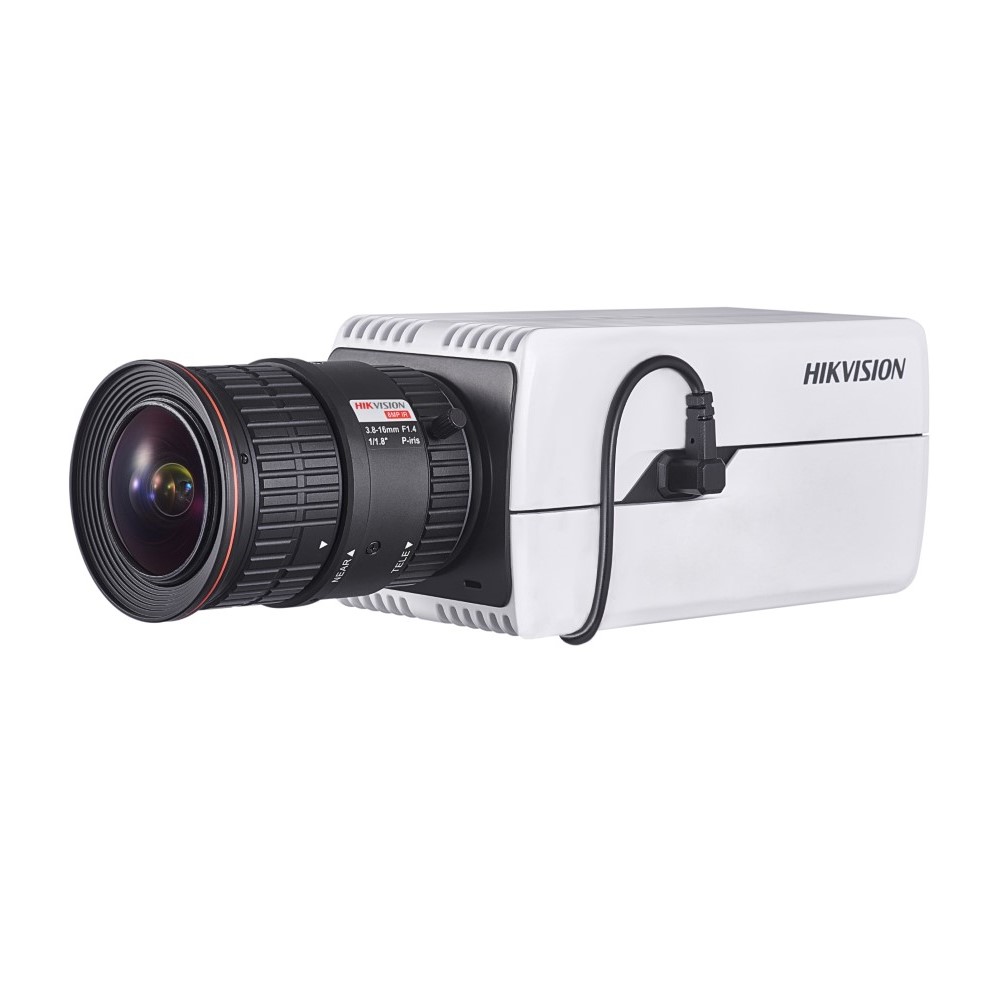

Hikvision DS-2CD5026G0-AP
from $787.33 (incl. GST)
POSMarket SKU: Z14192
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.
2MP Indoor Darkfighter Full Body Camera WDR, VCA, ABF, P-Iris
Product Overview
Part of Hikvision's enterprise range of network cameras, the DS-2CD5026G0-AP or HIK-2CD5026G0-AP is an indoor full body camera that produces exceptional 2MP high-resolution video. Powered by Darkfighter and Lightfighter technology, this camera can produce clear and crisp images in environments with extreme background lighting or in ultra-low light situations. The HIK-2CD5026G0-AP includes an ideal combination of smart features for its affordable pricesuch as 140dB true wide dynamic range (WDR), image sensor technology, a high definition image processing chipset, audio/alarm IO and smart video content analytics (VCA). Additionally, this camera supports H.265 and H.265+ intelligent video compression, which reduces bandwidth/storage requirements by up to 50 percent and 80 percent, respectively. For the best performance, use of the DarkEye Lens (HIK-HV0733D6MP) is recommended.
Features
Features
- 1/1.8 inch progressive scan CMOS
- 1920 x 1080 at 60fps
- Colour: 0.002 lux at (F1.2, AGC ON)
- H.265, H.265+, H.264+, H.264
- 140dB wide dynamic range (WDR)
- Video content analytics (VCA) including face detection and object counting
- 5 defined streams and up to 5 custom streams supported
- Supports on-board storage up to 256 GB
- Auto iris, P-iris
- Auto back focus
- 24VAC, 12VDC or PoE
Product Specifications
| CAMERA | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Min. Illumination Color: | 0.002 Lux @ (F1.2, AGC ON), B/W: 0.0002 Lux @ (F1.2, AGC ON) |
| Shutter Speed | 1 s - 1/100,000 s |
| Slow Shutter | Yes |
| Auto-iris | DC drive |
| With –P model: | P-iris |
| Day & Night | IR Cut Filter |
| Digital Noise Reduction | 3D DNR |
| WDR | 140dB |
| Focus | With -A model: support ABF (auto back focus) |
| LENS | |
| Lens Mount | CS mount |
| COMPRESSION STANDARD | |
| Video Compression Main stream: | H.265/H.264/H.265+/H.264+ |
| Sub stream/third stream/fourth stream/fifth stream/custom stream: | H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.264+ | Main stream support |
| H.265 Type | Main Profile |
| H.265+ | Main stream support |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM) |
| SMART FEATURE SET | |
| Behavior Analysi | s Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection |
| Exception Detection | Scene change detection, audio exception detection, defocus detection |
| Face Detection | Yes |
| Statistics | Counting |
| Region of Interest | 4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic face tracking |
| INTERFACE | |
| Audio | 1-ch 3.5 mm input (line in), 1-ch 3.5mm output, mono |
| Communication Interface | 1 RJ45 10M/100M/1000M Ethernet port; 1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Alarm | 2 inputs; 2 outputs (alarm output supports up to 24 VDC, 1A or 110 VAC, 500 mA) |
| Video Output | 1Vp-p composite output (75 Ω/CVBS) |
| Power Output | 12 VDC, max. 200 mA, (supported by 12 VDC, 24 VAC and PoE) |
| On-board storage | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
| BNC | CVBS analog output (4CIF resolution) |
| Reset Button | Yes |
| AUDIO | |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| DS-2CD5026G0-AP | 2MP Indoor Darkfighter Full Body Camera WDR, VCA, ABF, P-Iris, No Lens | $874.91 | Add to Cart | |
| DS-2CD5026G0 | 2MP Indoor Darkfighter Full Body Camera 140dB WDR, VCA, 60fps, No Lens | $787.33 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Hikvision DS-1292ZJ | Indoor Wall Mount Bracket for Full Body Cameras | $19.64 | View Product |
| Hikvision HV1140D-8MPIR | Vari-focal DC Auto Iris 8MP IR Lens | $753.06 | View Product |
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
| Filename | Size | ||
|---|---|---|---|
 |
DS2CD5026G0AP Datasheet.pdf | 1MB | Download |
|
DS2CD5026G0AP Quick Start Guide.pdf | 2MB | Download |
|
DS2CD5026G0AP User Manual.pdf | 5MB | Download |
