Hikvision DS-2CE78H8T-IT1F
POSMarket SKU: Z18153
This model is available in 3 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

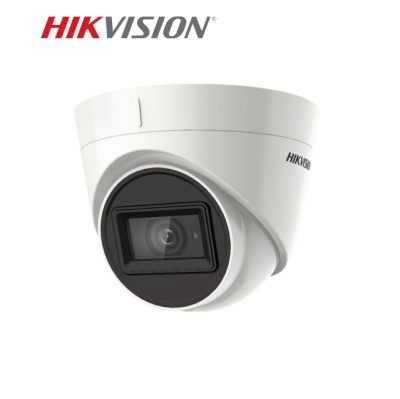

5MP Ultra Low Light Fixed Turret Camera
Product Overview
- 5 MP high performance turret camera
- Strong night performance, capturing images in ultra-low light down to 0.003 lux
- Clear imaging even against strong back lighting due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- EXIR 2.0: advanced infrared technology with 30 m IR distance
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Product Specifications
| Camera | |
| Image Sensor | 5 MP CMOS |
| Max. Resolution | 2560 (H) x 1944 (V) |
| Min. Illumination | Color: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0to 360°, Tilt: 0 to 75°, Rotation: 0 to 360° |
| Signal System | PAL/NTSC |
| Lens | |
| Lens Type | 2.8 mm, 3.6 mm, 6 mm fixed focal lens |
| Focal Length & FOV | 2.8 mm, horizontal FOV: 98° 3.6 mm, horizontal FOV: 78° 6 mm, horizontal FOV: 48° |
| Lens Mount | M12 |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| Image | |
| Image Settings | Brightness; Sharpness; Mirror; AGC |
| Frame Rate | TVI: 2 MP @ 25 fps, 2 MP @ 30 fps, 4 MP @ 25 fps, 4 MP @ 30 fps, 5 MP @ 20 fps AHD: 4 MP @ 25 fps, 4 MP @ 30 fps, 5 MP @ 20 fps CVI: 4 MP @ 25 fps, 4 MP @ 30 fps CVBS: PAL, NTSC |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) | ≥130dB |
| Image Enhancement | BLC |
| Privacy Mask | 4 programmable privacy masks |
| Noise Reduction | 3D DNR |
| White Balance | Auto/Manual |
| Interface | |
| Video Output | 1 HD analog output;Switchable TVI/AHD/CVI/CVBS |
| Event | |
| Motion Detection | 4 programmable motion areas |
| General | |
| Power | 12 VDC± 25%, max. 5.8 W *You are recommended to use one power adapter to supply the power for one camera. |
| Material | Main body: Metal, Enclosure: Plastic |
| Dimension | Φ 109.82 mm × 91.03 mm (Φ 4.32" × 3.6") Approx. 310 g (0.68 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing) |
| Communication | HIKVISION-C |
| Language | English |
| Approval | |
| Protection | IP67 |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| DS-2CE78H8T-IT1F | Hikvision 5MP Ultra Low Light Fixed Turret Camera, 2.8mm | $177.38 | Add to Cart | |
| DS-2CE78H8T-IT1F | Hikvision 5MP Ultra Low Light Fixed Turret Camera, 3.6mm | $173.25 | Add to Cart | |
| DS-2CE78H8T-IT1F | Hikvision 5MP Ultra Low Light Fixed Turret Camera, 6mm | $173.25 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Hikvision DS-1272ZJ-110-TRS | Wall Mounting Bracket for Dome Camera | $36.96 | View Product |
| Hikvision DS-1276ZJ | Corner Mount, Bracket | $31.19 | View Product |
| Hikvision DS-1275ZJ-SUS | Horizontal Pole Mount | $58.91 | View Product |
| Hikvision DS-1281ZJ-S | Inclined ceiling mount | $40.43 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
DS-2CE78H8T-IT1F 20181204 | 1MB | Download |
