POSMarket SKU: Z14099

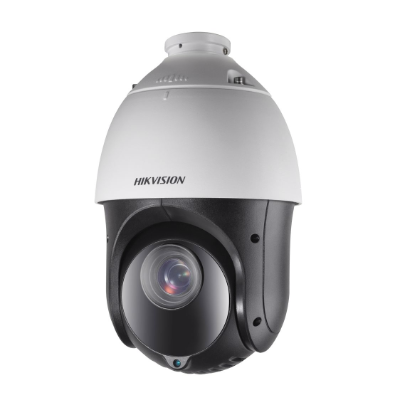

4-inch 2 MP 25X Powered by DarkFighter IR Network Speed Dome - Pro series
| CAMERA | |
| Image Sensor | 1/2.8" progressive scan CMOS |
| Min. Illumination Color: | 0.005Lux @ (F1.6, AGC ON), B/W: 0.001Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed | 1 s to 1/30,000 s |
| Slow Shutter | yes |
| Focus | semi-auto, manual, auto |
| Day & Night | ICR |
| Day/Night | Switch day, night, auto, scheduled-switch |
| BLC | yes |
| WDR | 120 dB WDR |
| HLC | yes |
| 3D DNR | yes |
| Defog | yes |
| Regional Exposure | yes |
| Regional Focus | yes |
| Image Settings | saturation, brightness, contrast, sharpness |
| Image Parameters | Switch yes |
| White Balance | auto, ATW, sodium lamp, fluorescent lamp, indoor, outdoor, MWB, Locked WB |
| Digital Zoom | 16x |
| Optical Zoom | 2x |
| Privacy Mask | up to 24 masks,mask color configurable |
| SNR | > 52dB |
| LENS | |
| Focal Length | 4.8 mm to 120 mm, 25x Optical |
| Zoom Speed | approx. 3.6 s |
| FOV | |
| Horizontal field of view: | 57.6° to 2.5° (wide-tele) |
| Vertical field of view: | 34.4° to 1.4° (wide-tele) |
| Diagonal field of view: | 64.5° to 2.9° (wide-tele) |
| Aperture | F1.6 |
| PTZ | |
| Movement Range (Pan) | 360° |
| Movement Range (Tilt) | -15° to 90° (auto flip) |
| Pan Speed pan speed: | configurable from 0.1° to 80° /s; preset speed: 80° /s |
| GENERAL | |
| Power | 12 VDC, PoE (802.3at) |
| Power Consumption and Current | Max. 18 W, including max. 1.6 W for heater and 9 W for IR |
| Operating Conditions | -30° C to 65° C (-22° F to 149° F), humidity lower than 90%RH |
| Reset | yes |
| Demist | yes |
| Material | ADC12 |
| Dimensions | Ø 164.5 mm × 290 mm (Ø 6.48" × 11.42") |
| Weight | Approx. 2 kg (4.41 lb.) |
| APPROVAL | |
| Protection | IP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| DS-2DE4225IW-DE | Hikvision 2MP Outdoor Mini IR PTZ Camera, H.265+, 100m IR, 25x Zoom, IP66, PoE+, 12VDC | $778.66 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Hikvision DS-1602ZJ | Wall Mount Bracket/ Pole Mount Bracket | $40.43 | View Product |
| Hikvision DS-1604ZJ | Wall Mount/ Vertical Pole Mount Bracket with Junction Box; | $108.57 | View Product |
| Hikvision DS-1663ZJ | In-ceiling mount | $28.88 | View Product |
| Hikvision DS-1602ZJ-Corner | Corner Mount Bracket | $60.06 | View Product |
| Hikvision DS-1662ZJ | Pendant Bracket | $51.98 | View Product |
| Hikvision DS-1005KI | USB Keyboard with Joystick | $481.64 | View Product |
| Hikvision DS-1604ZJ-Pole | Vertical Pole Mount | $122.43 | View Product |
| Hikvision DS-1619ZJ | Swan neck bracket for PTZ dome cameras | $160.55 | View Product |
| Hikvision DS-1602ZJ-BOX-CORNER | Wall Mount Bracket with Junction Box for PTZ Cameras | $206.75 | View Product |
| Hikvision DS-1100KI | Security Keyboard Joystick Network Keyboard | $2,231.46 | View Product |
| Hikvision DS-1604ZJ-BOX-POLE | Vertical Pole Mount for Speed Dome | $177.87 | View Product |
| Hikvision DS-1671ZJ-SD11 | In Ceiling Mounting Bracket | $34.65 | View Product |
| Hikvision DS-1661ZJ-P | Pendant Mount Bracket | $54.29 | View Product |
| Generic CAT5E RJ45 | RJ45. Plugs for Solid Cable | $16.17 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
Network Speed Dome Quick Start Guide.pdf | 2MB | Download |
|
Network Speed Dome User Manual.PDF | 14MB | Download |
|
DS2DE4225IWDE Datasheet.pdf | 1MB | Download |
