CAMERA MODULE | |
Image Sensor | 1/2.5" progressive scan CMOS |
Min. Illumination | |
Color: | 0.005 Lux @(F1.6, AGC ON) |
B/W: | 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR |
White Balance | Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent |
Lamp/Sodium | Lamp |
AGC | Auto/Manual |
Shutter Time | 1/1 s to 1/30,000 s |
Day & Night | IR Cut Filter |
Digital Zoom | 16x |
Privacy Mask | 24 programmable privacy masks |
Focus Mode | Auto/Semi-automatic/Manual |
WDR | 120 dB WDR |
LENS | |
Focal Length | 4.8 mm to 120 mm, 25x optical |
Zoom Speed | Approx. 3.2 s (optical lens, wide-tele) |
FOV | |
Horizontal field of view: | 57.6°to 2.5°(wide-tele) |
Vertical field of view: | 34.4°to 1.4°(wide-tele) |
Diagonal field of view: | 64.5°to 2.9°(wide-tele) |
Working Distance | 10 mm to 1500 mm (wide-tele) |
Aperture Range | F1.6 to F3.5 |
IR | |
IR Distance | 50 m |
Smart IR | Support |
PTZ | |
Movement Range | (Pan) 360° endless |
Pan Speed | Configurable, from 0.1°/s to 300°/s |
Preset Speed: | 350°/s |
Movement Range | (Tilt) From -5° to 90°(auto-flip) |
Tilt Speed | Configurable, from 0.1°/s to 160°/s |
Preset Speed: | 200°/s |
Proportional Zoom | Support |
Presets | 300 |
Patrol Scan | 8 patrols, up to 32 presets for each patrol |
Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
Power-off Memory | Support |
Park Action | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame, Scan/Panorama Scan |
PTZ Position | Display Support |
Preset Freezing | Support |
Scheduled Task | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame, Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output |
GENERAL | |
Power | 12 VDC & PoE+ (802.3 at, class4), Max.:18 W (IR Max.5 W) |
Working Temperature | -30°C to 65°C (-22°F to 149°F) |
Working Humidity | ≤ 90% |
Protection Level | IP66 Standard, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection |
Material | ADC12, PC, PC+ABS, SUS304, POM |
Dimensions | Φ 169 mm × 161 mm (Φ 6.65" x 6.34") |
Weight | Approx. 2.45 kg (5.40 lb) |
Model | Description | Price | Stock | |
---|---|---|---|---|

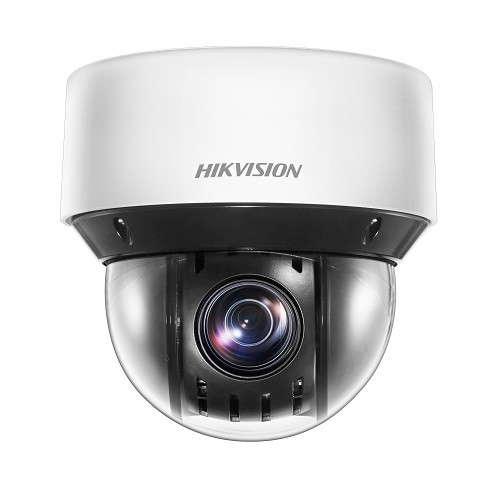

DS-2DE4A425IW-DE | Hikvision 4MP Outdoor PTZ Camera, 25x Zoom, H.265, IR, WDR, IP66, PoE+, Surface Mount | $1,088.59 | Add to Cart |
Model | Description | Prices From | |
---|---|---|---|
Hikvision DS-1605ZJ | Wall Mount Bracket | $51.98 | View Product |
Hikvision DS-1280ZJ-SD11 | Junction Box | $28.88 | View Product |
Hikvision DS-1005KI | USB Keyboard with Joystick | $481.64 | View Product |
Hikvision DS-1100KI | Security Keyboard Joystick Network Keyboard | $2,231.46 | View Product |
Hikvision DS-1671ZJ-SD11 | In Ceiling Mounting Bracket | $34.65 | View Product |
Hikvision DS-1691ZJ | Pendant Mount | $40.43 | View Product |
Filename | Size | ||
---|---|---|---|
![]() |
DS-2DE4A425IW-DE Datasheet | 1MB | Download |
![]() |
Network PTZ Camera Quick Start Guide.pdf | 4MB | Download |
![]() |
Network Speed Dome User Manual.PDF | 15MB | Download |
