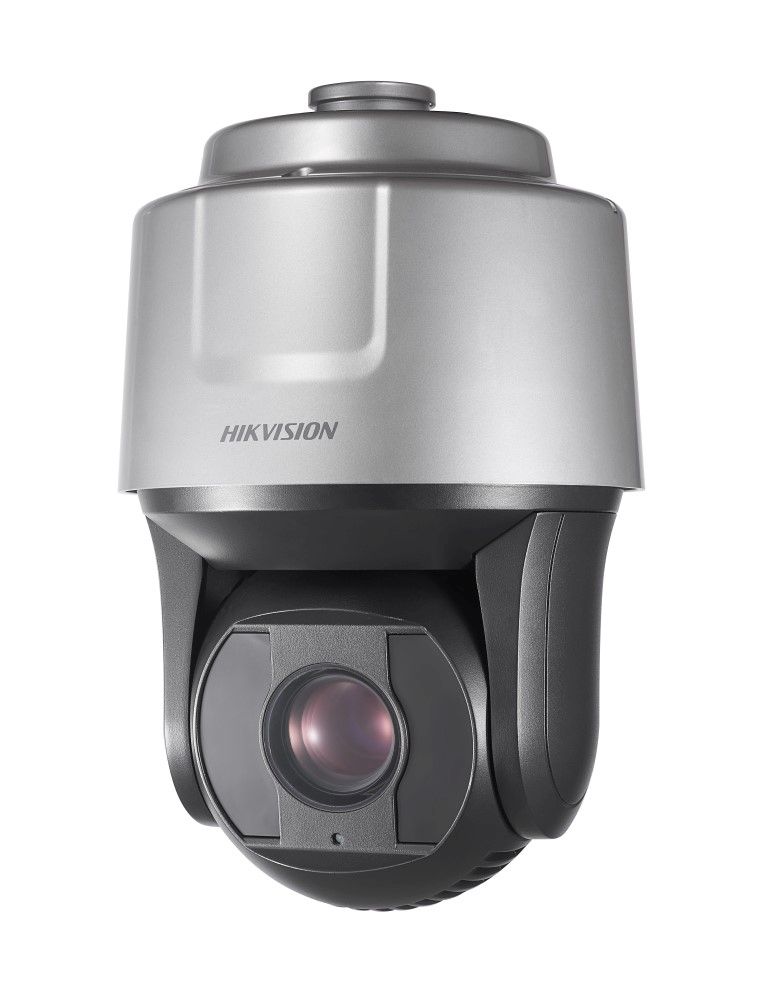

Hikvision DS-2DF8225IH-AEL
from $3,261.91 (incl. GST)
POSMarket SKU: Z14175
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.
2MP Outdoor Darkfighter X PTZ, 25x Zoom
Product Overview
Hikvision is leading the industry with innovative video surveillance products and solutions, with the introduction of the DarkFighter X series. Using cutting-edge technology, it delivers the next level of performance for night surveillance. The technology can provide colourful, sharp images right down to the lowest light levels of 0.001 lux. The DarkFighter X Series takes inspiration from the way the human eye works. Eyes use different cells to collect colour and brightness information, which the brain then merges. The DarkFighterX cameras take information from an IR sensor (for brightness) and information from a visible light sensor (for colour) and combines them to provide the best of both worlds, one bright full-colour image. The DarkFighterX series includes a PTZ and bullet camera both come with optical defog, 25x optical zoom, 2MP resolution and smart detection. They also boast the H.265+ codec and are weatherproof to IP66 standard.
Features
Features
- Dual sensors - 2 x 1/2.8" CMOS
- 2 megapixel - 1080P @25fps/30fps
- Colour: 0.001lux/F1.5, B/W: 0.0001lux/F1.5
- H.265+/H.265/H.264+/H.264/MJPEG
- 200m infrared
- 120dB wide dynamic range
- Pan range: 360 degrees endless
- Tilt range: -20 degrees ~90degrees(Auto Flip)
- Pan speed: 0.1degrees~160degrees/s
- Tilt speed: 0.1degrees~120degrees/s
- Optical zoom: 25x, focus:4.8-120mm
- Supports SD/SDXC card up to 128GB
Product Specifications
| CAMERA | |
| Image Sensor | Two 1/2.8" progressive scan CMOS |
| Min. Illumination | |
| Color: | 0.0004 Lux @(F1.5, AGC ON) |
| B/W: | 0.0001Lux @(F1.5, AGC ON); 0 Lux with IR |
| White Balance | Auto/Manual/ATW (Auto Tracking White Balance)/Indoor/Outdoor/Fluorescent |
| Lamp/Sodium | Lamp |
| AGC | Auto/Manual |
| Shutter Time | 1/1 s to 1/30,000 s |
| Day & Night | Controlled by dual-sensor |
| Digital Zoom | 16x |
| Privacy Mask | 24 programmable polygon privacy masks, mask color or mosaic configurable |
| Focus Mode | Auto/Semi-automatic/Manual |
| WDR | 120 dB |
| LENS | |
| Focal Length | 4.8 mm to 120 mm, 25x Optical |
| Zoom Speed | Approx. 4.4 s (optical lens, wide-tele) |
| FOV | |
| Horizontal field of view: | 58.2° to 3.2° (wide-tele) |
| Vertical field of view: | 32.7° to 1.8° (wide-tele) |
| Diagonal field of view: | 66.8° to 3.7° (wide-tele) |
| Working Distance | 10 mm to 1500 mm (wide-tele) |
| Aperture Range | F1.5 to F3.5 |
| IR | |
| IR Distance | Up to 200 m |
| Smart IR | Yes |
| PTZ | |
| Movement Range | (Pan) 360° endless |
| Pan Speed | Configurable, from0.1°/s to 210°/s,Preset Speed: 280°/s |
| Movement Range | (Tilt) From -20° to 90° |
| Tilt Speed | Configurable, from 0.1°/s to 150°/s, Preset Speed: 250°/s |
| Proportional Zoom | Yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory | Yes |
| Park Action | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| 3D Positioning | Yes |
| PTZ Position | Display ON/OFF |
| Preset Freezing | Yes |
| Scheduled Task | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output |
| Model | Description | Price | Stock | |
|---|---|---|---|---|

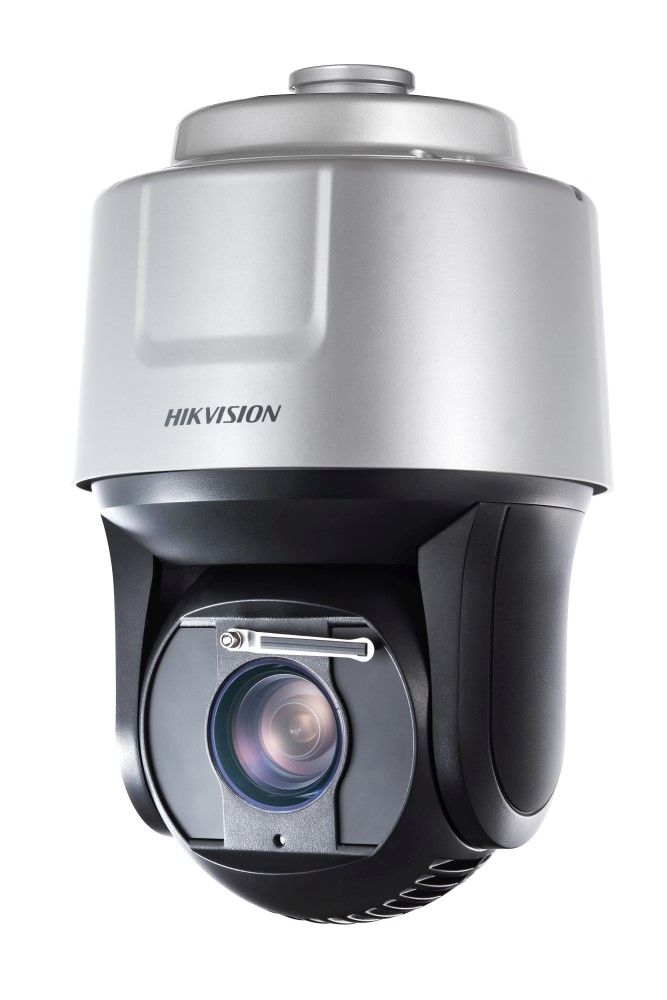

| DS-2DF8225IH-AELW | 2MP Outdoor Darkfighter X PTZ with Wiper, 25x Zoom, IR, WDR, IP66, HiPoE | $3,610.34 | Add to Cart | |
| DS-2DF8225IH-AEL | 2MP Outdoor Darkfighter X PTZ, 25x Zoom, IR, WDR, IP66, HiPOE | $3,261.91 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Hikvision DS-1602ZJ-BOX-POLE | Vertical Pole Mount Bracket with Junction Box | $206.75 | View Product |
| Hikvision DS-1604ZJ-Pole | Vertical Pole Mount | $122.43 | View Product |
| Hikvision DS-1604ZJ-BOX-POLE | Vertical Pole Mount for Speed Dome | $177.87 | View Product |
| Hikvision DS-1661ZJ-P | Pendant Mount Bracket | $54.29 | View Product |
| Hikvision LAS60-57CN-RJ45 | Single Port Midspan POE Injector. | $248.33 | View Product |
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
| Filename | Size | ||
|---|---|---|---|
 |
DS2DF8225IHAELW Datasheet.pdf | 1002KB | Download |
|
DS2DF8225IHAELW Quick Start Guide.pdf | 4MB | Download |
