Hikvision DS-2DF8225IX-AELW
from $3,330.25 (incl. GST)
POSMarket SKU: Z14142
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

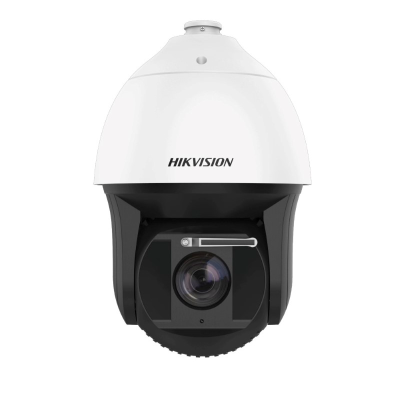

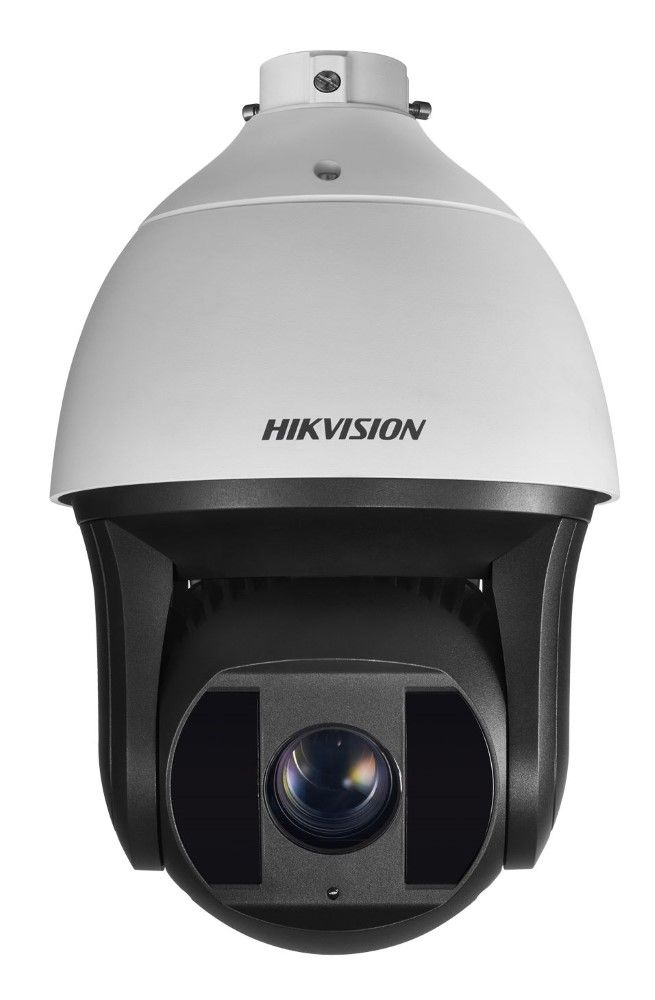

2MP Outdoor Darkfighter PTZ Camera, 25x Zoom
Product Overview
Part of Hikvision Pro PTZ Series, the DS-2DF8225IX-AEL(W) or HIK-2DF8225IXELW is an outdoor Darkfighter PTZ with 25x optical zoom, a built-in wiper and infrared for visibility at night (up to 200m). The Hikvision Pro series features cutting edge technologies such as Deep-learning-based target classification algorithms, Rapid Focus and Auto-tracking 2.0 and can capture high quality 2MP images efficiently with H.265 or H.265+ compression technology. Powered by Hikvision's Darkfighter technology which can capture crystal clear colour image in ultra-low light conditions and with a 360 degree endless pan range and a -20 to 90 degree tilt range, this versatile and full-featured PTZ dome camera is ideal for monitoring expansive areas whilst also allowing the user to focus in on specific details for further forensic needs.
Features
Features
- 1/1.9" progressive scan CMOS
- Up to 1920x1080 at 60fps resolution
- Min. illumination: Colour: 0.002 Lux, B/W: 0.0002 Lux
- 25x optical zoom, 16x digital zoom
- Pan: 360 deg, Tilt: -20 deg to 90 deg (auto-flip)
- Preset, pattern scan, patrol scan
- Supports H.265+ and H.265 video compression
- 120dB WDR, 3D DNR, HLC, BLC, defog, EIS
- Deep-learning-based target classification algorithm
- Rapid focus, Auto-tracking 2.0
- Up to 200m IR
- 24VAC & Hi-PoE
- IP67 & IK10 rated
- Built-in wiper
Product Specifications
| CAMERA MODULE | |
| Image Sensor | 1/1.8" progressive scan CMOS |
| Min. Illumination | |
| Color: | 0.002 Lux @(F1.5, AGC ON) |
| B/W: | 0.0002 Lux @(F1.5, AGC ON) 0 Lux with IR |
| Shutter Time | 1/1 s to 1/30,000 s |
| White Balance | Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent |
| Lamp/Sodium | Lamp |
| AGC | Auto/Manual |
| Day & Night | IR cut filter |
| Digital Zoom | 16x |
| Privacy Mask | 24 programmable polygon privacy masks, mask color or mosaic configurable |
| Focus Mode | Auto/Semi-automatic/Manual |
| 3D DNR | Yes |
| BLC | Yes |
| HLC | Yes |
| WDR | 120dB |
| Optical Defog | Yes |
| EIS | Yes |
| Regional Exposure | Yes |
| Regional Focus | Yes |
| Rapid Focus | Yes |
| LENS | |
| Focal Length | 5.7 mm to 142.5 mm, 25x Optical |
| Zoom Speed | Approx. 3.7 s (optical lens, wide-tele) |
| Field of View | |
| Horizontal field of view: | 59.8° to 2.8° (wide-tele) |
| Vertical field of view: | 33.6° to 1.6° (wide-tele) |
| Diagonal field of view: | 68.6° to 3.2° (wide-tele) |
| Working Distance | 10 mm to 1500 mm (wide-tele) |
| Aperture Range | F1.5 to F3.4 |
| PTZ | |
| Movement Range | (Pan) 36° endless |
| Pan Speed | Configurable, from 0.°/s to 210°/s, Preset Speed: 280°/s |
| Movement Range | (Tilt) From -20° to 90° |
| Tilt Speed | Configurable, from 0.1°/s to 150°/s, Preset Speed: 250°/s |
| Proportional Zoom | Yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory: | Yes |
| Park Action | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| PTZ Status Display | Yes |
| Preset Freezing | Yes |
| Scheduled Task | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output |
| Alarm Interface | 7-ch alarm input/2-ch alarm output |
| Audio Interface | 1-ch audio input, 2 to 2.4 V[p-p], 1 KΩ +/-10% 1-ch audio output, line level, impedance: 600 Ω |
| Alarm Linkage | Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc. |
| Network Interface | 1 RJ45 10 M/100 M Ethernet Interface; Hi-PoE |
| CVBS | Yes |
| RS-485 | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/CIFS), ANR |
| API ONVIF | (Profile S, Profile G, Profile T), ISAPI, SDK |
| Client | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect |
| Web Browser | IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+, Safari 11+ |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| DS-2DF8225IX-AELW | 2MP Outdoor Darkfighter PTZ Camera, 25x Zoom, H.265, IR, Wiper, HiPoE | $3,610.34 | Add to Cart | |
| DS-2DF8225IX-AEL | 2MP Outdoor Darkfighter PTZ Camera, 25x Zoom, H.265, IR, IP66, HiPoE | $3,330.25 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Hikvision DS-1602ZJ | Wall Mount Bracket/ Pole Mount Bracket | $42.90 | View Product |
| Hikvision DS-1604ZJ | Wall Mount/ Vertical Pole Mount Bracket with Junction Box; | $108.57 | View Product |
| Hikvision DS-1663ZJ | In-ceiling mount | $28.88 | View Product |
| Hikvision DS-1602ZJ-Corner | Corner Mount Bracket | $60.06 | View Product |
| Hikvision DS-1662ZJ | Pendant Bracket | $51.98 | View Product |
| Hikvision DS-1602ZJ-BOX-POLE | Vertical Pole Mount Bracket with Junction Box | $206.75 | View Product |
| Hikvision DS-1604ZJ-BOX-Corner | Corner Wall Mount with Junction Box | $177.87 | View Product |
| Hikvision DS-1619ZJ | Swan neck bracket for PTZ dome cameras | $160.55 | View Product |
| Hikvision DS-1602ZJ-BOX-CORNER | Wall Mount Bracket with Junction Box for PTZ Cameras | $206.75 | View Product |
| Hikvision DS-1604ZJ-BOX-POLE | Vertical Pole Mount for Speed Dome | $177.87 | View Product |
| Hikvision DS-1603ZJ | Wall Mount Bracket to suit PanoVu Series Cameras | $60.06 | View Product |
| Hikvision DS-1661ZJ-P | Pendant Mount Bracket | $54.29 | View Product |
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
| Filename | Size | ||
|---|---|---|---|
 |
DS-2DF8225IX-AELW Data Sheet | 2MB | Download |
|
DS2DF8225IXAELW Quick Start Guide.pdf | 3MB | Download |
|
DS2DF8225IXAELW User Manual.PDF | 14MB | Download |
