POSMarket SKU: Z14182

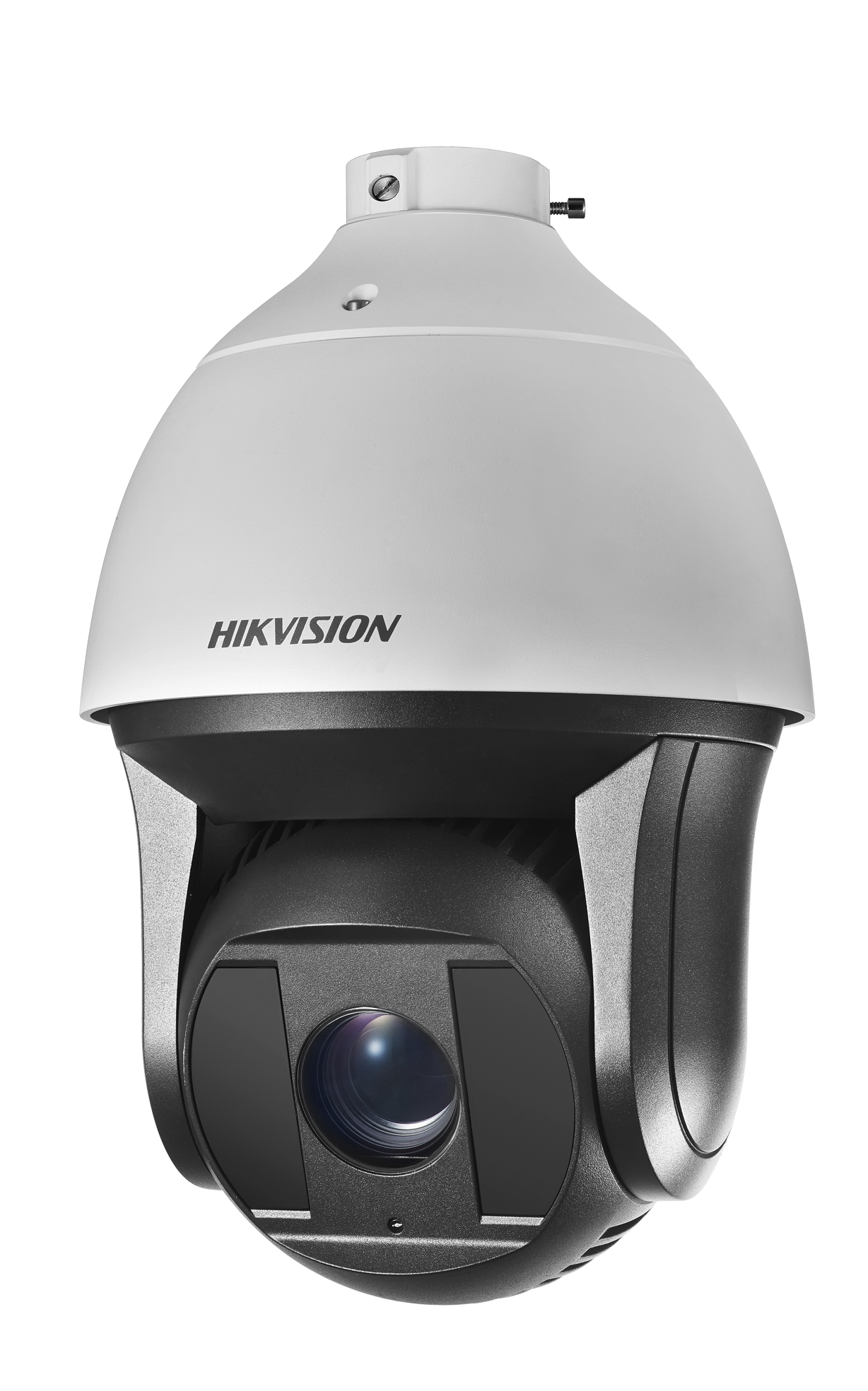

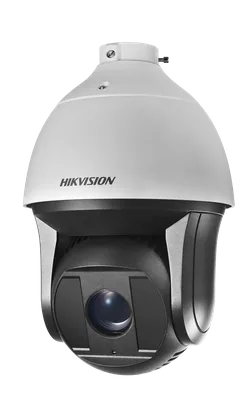

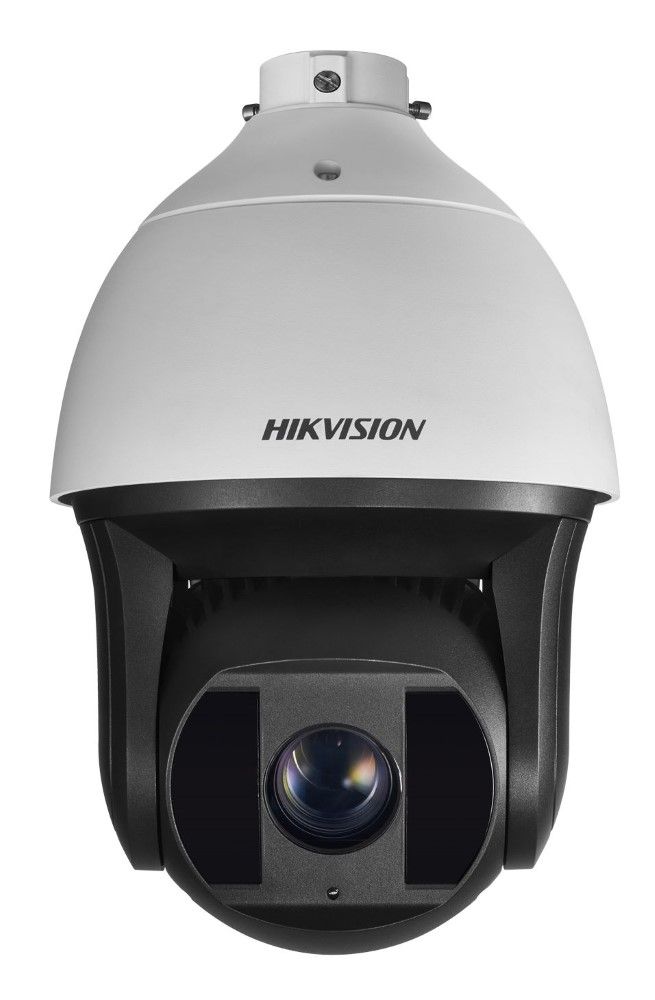

4MP 42x DarkFighter IR Network Speed Dome
| CAMERA MODULE | |
| Image Sensor | 1/1.8" progressive scan CMOS |
| Min. Illumination Color: | 0.002 Lux @ (F1.2, AGC ON) B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/1s ~ 1/30,000s |
| Slow Shutter | yes |
| Focus | semi-auto, manual, auto |
| Day & Night | ICR |
| Day/Night | Switch day, night, auto, scheduled-switch |
| BLC | yes |
| WDR | 140dB WDR |
| HLC | yes |
| 3D DNR | yes |
| EIS | Yes. Built-in gyroscope to improve EIS performance. |
| Regional Exposure | yes |
| Regional Focus | yes |
| White Balance | auto |
| Digital Zoom | 16x |
| Optical Zoom | 42x |
| Privacy Mask | up to 24 masks,polygon region ,mosaic mask ,mask color configurable |
| General Function | mirror, password protection, watermark, IP address filter |
| Optical Defog | yes |
| LENS | |
| Focal Length | 6.0 mm to 252 mm, 42 x Optical |
| Zoom Speed approx. | 4.5 s |
| FOV | |
| Horizontal field of view: | 56.6° to 1.7°(wide-tele), |
| Vertical field of view: | 33.7° to 0.9° (wide-tele), |
| Diagonal field of view: | 63.4° to 1.9° (wide-tele) |
| Aperture | F1.2 |
| PTZ | |
| Movement Range | (Pan) 360° |
| Movement Range | (Tilt)-20° to 90° (auto flip) |
| Pan Speed | pan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s |
| Tilt Speed | tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s |
| Proportional Zoom | yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory | yes |
| Park Action | preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan |
| 3D Positioning | yes |
| PTZ Status Display | yes |
| Preset Freezing | yes |
| Scheduled Task | preset, pattern scan, patrol scan, auto scan, tilt scan,r andom scan, frame scan, panorama scan, dome reboot, dome adjust, aux output |
| VIDEO | |
| Max. Resolution | 2560 x 1440 |
| Main Stream | |
| 50Hz: | 25 fps(2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 50 fps(2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| 60Hz: | 30 fps(2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 fps(2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub Stream | |
| 50Hz: | 25 fps (704 × 576, 640 × 480, 352 × 288) |
| 60Hz: | 30 fps (704 × 576, 640 × 480, 352 × 240) |
| Third Stream | |
| 50Hz: | 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) |
| 60Hz: | 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 240) |
| Video Compression | H.265, H.264, MJPEG |
| H.264 Type | baseline profile, main profile, high profile |
| H.265 Type | main profile |
| H.264+ | yes |
| H.265+ | yes |
| SVC | yes |
| ROI | dynamic face tracking, fixed region, dynamic license plate tracking |
| AUDIO | |
| Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM |
| Audio Bit rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps (MP2L2) |
| SMART FEATURE SET | |
| Face Capture | Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face. |
| Road Traffic Support | vehicle detection (license plate number, vehicle model, and vehicle color recognition) |
| Basic Event | motion detection, video tampering alarm, alarm input and output |
| Smart Event | unattended baggage detection, object removal detection, intrusion detection, line crossing detection, region entrance detection, region exiting detection, audio exception detection, vandal-proof alarm |
| Smart Tracking | manual tracking, event tracking, auto-tracking |
| Smart Record | ANR, Dual-VCA |
| Alarm Linkage | Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Sent Email, etc. |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| DS-2DF8442IXS-AEL | 4MP Outdoor Darkfighter PTZ Camera, 42x Zoom, 500m IR, IP67, IK10 | $3,606.49 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Hikvision DS-1604ZJ | Wall Mount/ Vertical Pole Mount Bracket with Junction Box; | $108.57 | View Product |
| Hikvision DS-1663ZJ | In-ceiling mount | $28.88 | View Product |
| Hikvision DS-1602ZJ-Corner | Corner Mount Bracket | $60.06 | View Product |
| Hikvision DS-1662ZJ | Pendant Bracket | $51.98 | View Product |
| Hikvision DS-1602ZJ-BOX-POLE | Vertical Pole Mount Bracket with Junction Box | $206.75 | View Product |
| Hikvision DS-1604ZJ-Pole | Vertical Pole Mount | $122.43 | View Product |
| Hikvision DS-1619ZJ | Swan neck bracket for PTZ dome cameras | $160.55 | View Product |
| Hikvision DS-1602ZJ-BOX-CORNER | Wall Mount Bracket with Junction Box for PTZ Cameras | $206.75 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
DS2DF8442IXSAEL Datasheet.pdf | 1MB | Download |
|
DS2DF8442IXSAEL Quick Start Guide.pdf | 3MB | Download |
|
DS2DF8442IXSAEL User Manual.PDF | 14MB | Download |
