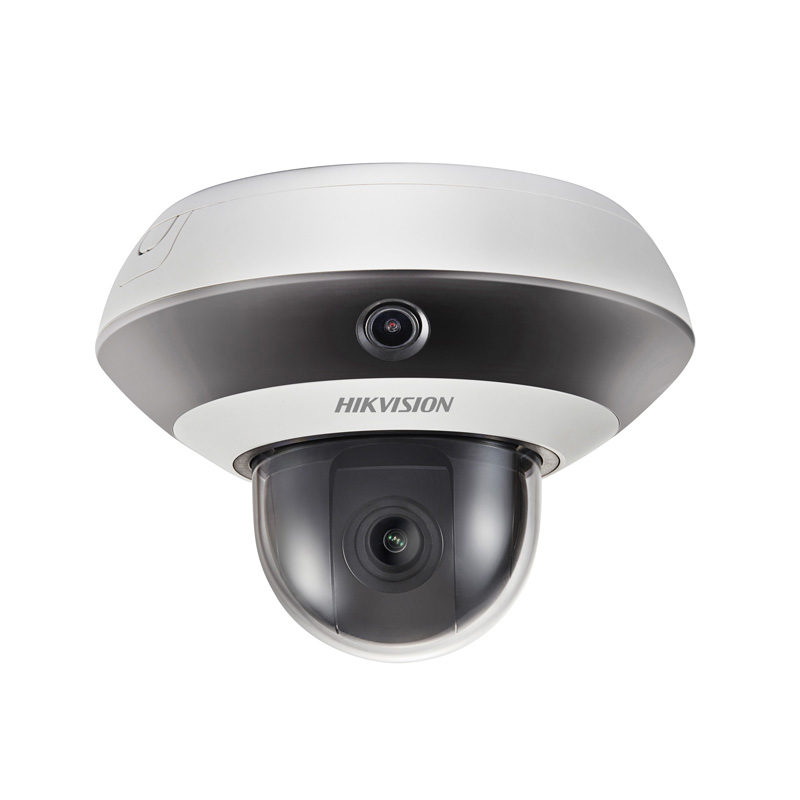

Hikvision DS-2PT3122IZ-DE3
$645.84 (incl. GST)
POSMarket SKU: Z14227
DS-2PT3122IZ-DE3: Hikvision PanoVu Mini PTZ Camera, 1x 2MP Situational + 1x 2MP PTZ, IR, IP54, PoE
PanoVu Mini Series IR Network PTZ Camera, 1x 2MP Situational
Product Overview
The Hikvision's DS-2PT3122IZ-DE3 or HIK-2PT3322IZDEx, combines 1 fixed lens cameras and one pan, tilt and zoom camera in a compact indoor design to provide 130 degree coverage for situational awareness. This allows you to capture every detail with great precision simultaneously using the PTZ camera. Additionally, each of the situational and tracking PTZ sensors produce a well balanced and crystal clear 2MP image. The tracking PTZ supports 4x optical zoom with a 2.8 to 12mm lens. This camera is ideal for monitoring medium-sized indoor area such as community halls.
The DS-2PT3122IZ-DE3 (2.8-12mm) PanoVu Mini Series Network PTZ Camera, with the integration design, is able to capture 128.5° images with the panoramic camera as well as close-up images with the PTZ camera.
Features
The DS-2PT3122IZ-DE3 (2.8-12mm) PanoVu Mini Series Network PTZ Camera, with the integration design, is able to capture 128.5° images with the panoramic camera as well as close-up images with the PTZ camera.
Features
- 2x 1/2.8" progressive scan CMOS
- 2x 2MP sensor - 1920x080 at 30fps resolution
- Min. illumination: colour - 0.05 lux, b/w - 0.01 lux, 0 lux with IR
- 1x situational awareness sensor - HFVOF: 3 x 128.5 degrees
- 4x optical zoom PTZ sensors
- Pan: 350 degrees, Tilt: 0-90 degrees
- Supports H.265
- 10m infrared
- 12VDC or PoE+ max 20W
- IP54
Product Specifications
| PANORAMIC CAMERA | |
| Image Sensor | 1/2.8" progressive scan CMOS |
| Min. Illumination | |
| Color: | 0.05 Lux @(F2.0, AGC ON) |
| B/W: | 0.01 Lux @(F2.0, AGC ON) 0 Lux with IR |
| Shutter Time | 50 Hz: 1/1 s to 1/30,000 s; 60 Hz: 1/1 s to 1/30,000 s |
| Day & Night | IR Cut Filter |
| Gain | Auto/Manual |
| WDR | Digital WDR |
| Smart Image Enhancement | HLC/BLC/3D DNR/Regional Exposure |
| White Balance | Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent |
| Lamp/Sodium | Lamp |
| Privacy Mask | 4 programmable privacy masks |
| Focal Length | 2 mm |
| Aperture Range | F2.0 |
| FOV | |
| Horizontal field of view: | 128.5° |
| Vertical field of view: | 75.7° |
| Diagonal field of view: | 144° |
| PTZ CAMERA | |
| Image Sensor | 1/2.8" progressive scan CMOS |
| Min. Illumination | |
| Color: | 0.05 Lux @(F2.0, AGC ON) |
| B/W: | 0.01 Lux @(F2.0, AGC ON) 0 Lux with IR |
| Shutter Time | 50 Hz: 1/1 s to 1/30,000 s; 60 Hz: 1/1 s to 1/30,000 s |
| Day & Night | IR Cut Filter |
| Gain | Auto/Manual |
| WDR | Digital WDR |
| Smart Image Enhancement | HLC/BLC/3D DNR/Regional Exposure/Regional Focus |
| White Balance | Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent |
| Lamp/Sodium | Lamp |
| Privacy Mas | k 8 programmable privacy masks |
| Digital Zoom | 8x |
| Focus Mode | Semi-automatic/Manual |
| Focal Length | 2.8 mm to 12 mm, 4x optical zoom |
| Zoom Speed | Approx.5.4 s (optical, wide - tele) |
| FOV | |
| Horizontal field of view: | 120° to 56.6° (wide - tele) |
| Vertical field of view: | 61.8° to 31.7° (wide - tele) |
| Diagonal field of view: | 149° to 65° (wide - tele) |
| Min. Working Distance | 10 mm to 1500 mm (wide - tele) |
| Aperture Range | F2.0 to F2.4 |
| Pan and Tilt Range Pan | : 0°to 350°; Tilt: 0°to 90° |
| Pan and Tilt Speed | Pan speed: 0.1°/s to 30°/s (configurable), preset speed: 30°/s; Tilt speed: 0.1°/s to 30°/s (configurable), preset speed: 30°/s |
| Proportional Zoom | Support |
| Preset Number | 300 |
| Power-off Memory | Support |
| PTZ Status Display | Support |
| Preset Freezing | Support |
| Scheduled Task | Preset/Dome Reboot/Dome Adjust |
| Dual-VCA | Support |
| Smart Event Detection | Audio Exception Detection, Intrusion Detection, Line Crossing Detection |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| DS-2PT3122IZ-DE3 | Hikvision PanoVu Mini PTZ Camera, 1x 2MP Situational + 1x 2MP PTZ, IR, IP54, PoE | $645.84 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Hikvision DS-1294ZJ | Wall Mount Bracket | $27.72 | View Product |
| Hikvision DS-1603ZJ | Wall Mount Bracket to suit PanoVu Series Cameras | $60.06 | View Product |
| Hikvision DS-1271ZJ-PT10 | Aluminum pendant mount | $60.06 | View Product |
| Hikvision DS-1603ZJ-Pole-P | Vertical Pole Mount, Platinum gray | $94.71 | View Product |
| Hikvision DS-7616NI-I2 16P | 16ch PoE NVR, 160Mbps, H.265 | $1,211.79 | View Product |
| Tensor CAB-C6PCB-1 | CAT6 Patch Cable, 1m, Blue | $5.58 | View Product |
| Tensor CAB-C6PCB-1.5 | CAT6 Patch Cable, 1.5m, Blue | $6.16 | View Product |
| Tensor CAB-C6PCB-10 | CAT6 Patch Cable, 10m, Blue | $24.06 | View Product |
| Tensor CAB-C6PCB-15 | CAT6 Patch Cable, 15m, Blue | $28.88 | View Product |
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
| Filename | Size | ||
|---|---|---|---|
 |
DS2PT3122IZDE3 Datasheet.pdf | 724KB | Download |
|
PanoVu Mini Series Network PTZ Camera Quick Start Guide.pdf | 2MB | Download |
