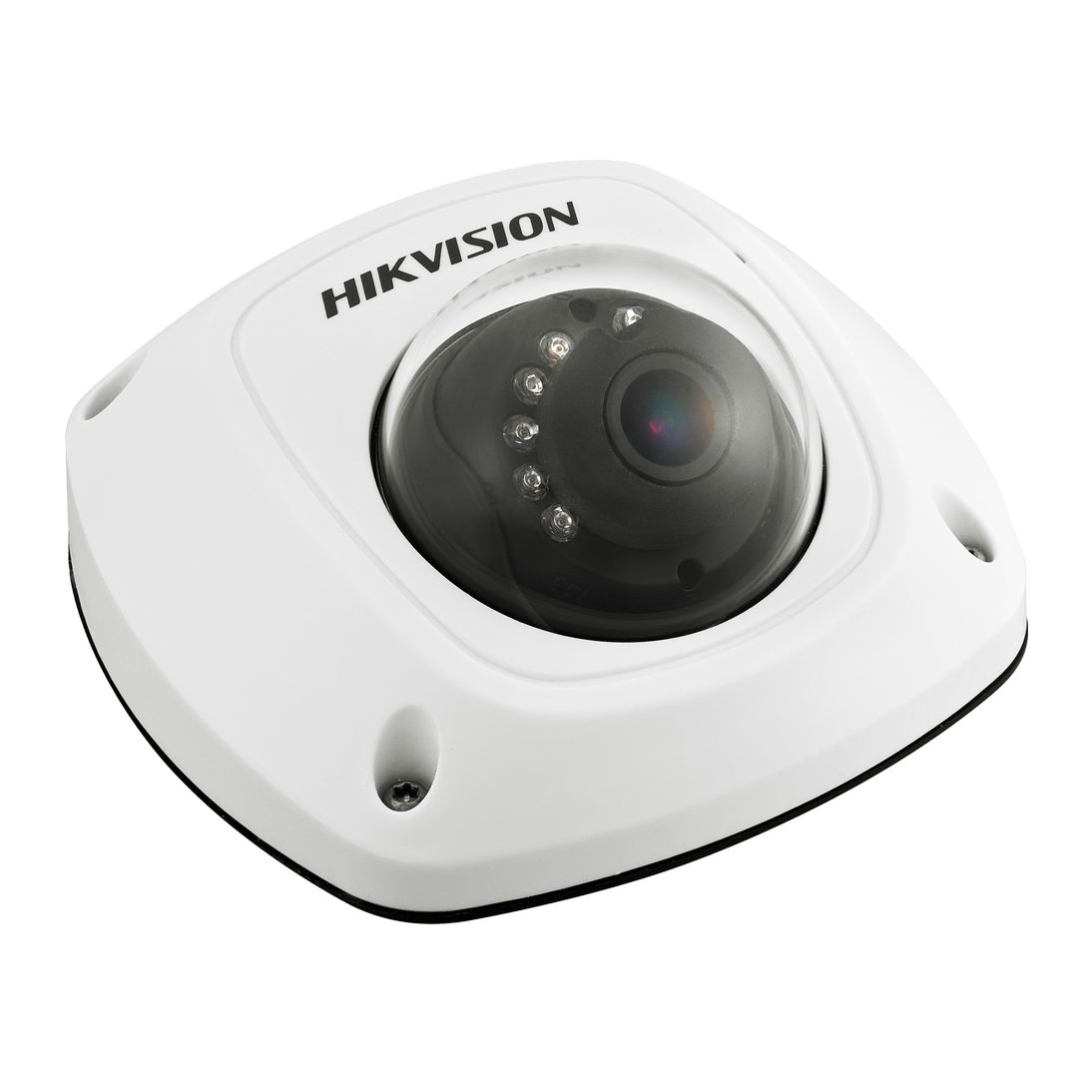

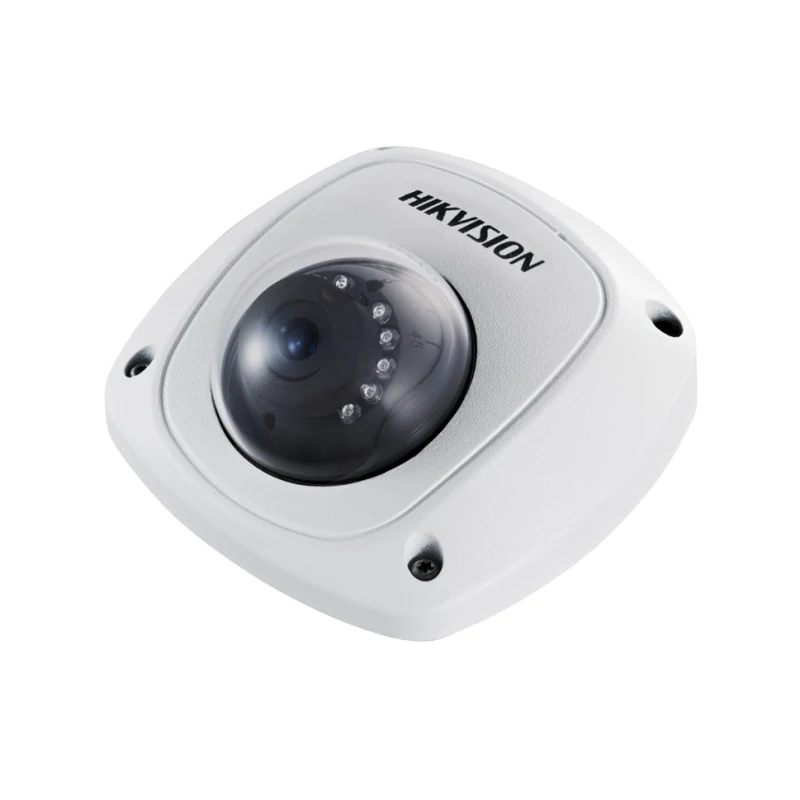

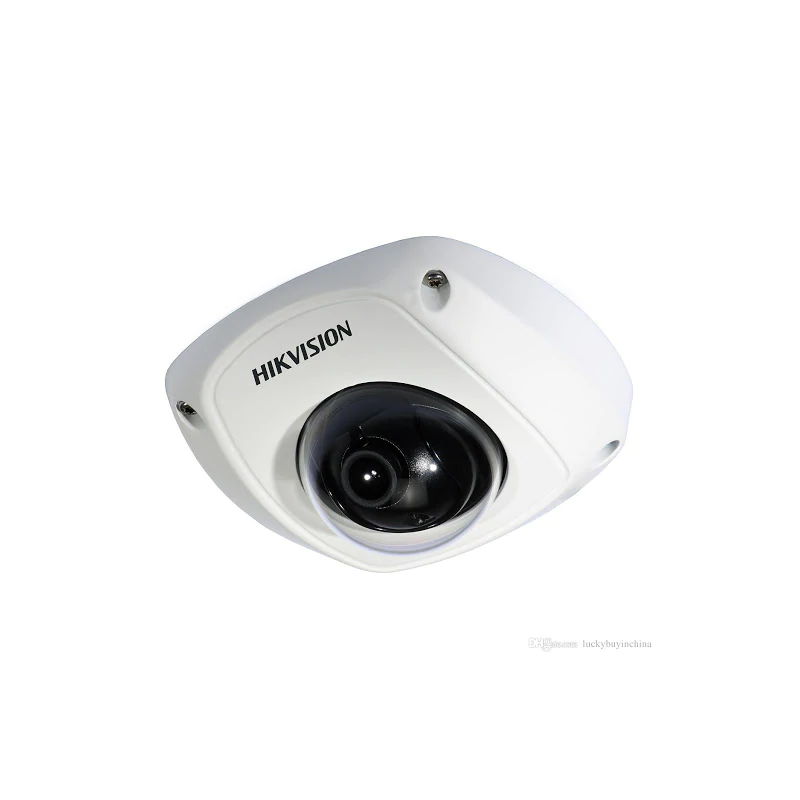

Hikvision DS-2XM6122FWD-I
POSMarket SKU: Z14252
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.
2MP Outer Vehicle Mobile Dome Camera
Product Overview
Efficient H.265+ compression and clear imaging against strong back light due to 120 dB WDR technology.
Features
- Up to 2.0 megapixel high resolution
- 1920 x 1080 @30fps video
- Three video streams
- 4mm/6mm/8mm fixed lens
- 120dB Wide Dynamic Range
- 3D Digital Noise Reduction
- 3-axis adjustment
- Support on-board storage, up to 128 GB
- Build-in microphone
- DC12V & PoE (802.3af)
- Up to 10 m IR range
- IP66 weather-proof protection
- IK8 vandal resistant protection
- M12 aviation plug (optional)
- Multiple smart events supported
- DS-2XM6122FWD-I: a RJ45 network interface and a power supply interface
- DS-2XM6122FWD-IM: an M12 aviation plug
Product Specifications
| CAMERA | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Min. Illumination | 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Support |
| Lens | 4 mm, horizontal field of view 90°[6 mm (53.9°), 8 mm (37.9°), optional] |
| Lens Mount | M12 |
| Day &Night | IR cut filter |
| DNR | 3D DNR |
| Wide Dynamic Range | 120dB |
| 3-Axis Adjustment Pan: | -30° to 30°, Tilt: 0° to 80°, Rotate: 0° to 360° |
| COMPRESSION STANDARD | |
| Main stream: | H.265/H.264 |
| Sub stream: | H.265/H.264/MJPEG |
| Third stream: | H.265/H.264 |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.264+ | Main stream supports |
| H.265 Type | Main Profile |
| H.265+ | Main stream supports |
| Video Bit Rate | 256 Kbps to 16 Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| AUDIO (-U) | |
| Environment Noise Filtering | Support |
| Audio I/O Support | Sampling Rate Max. 48kHz |
| INTERFACE | |
| Communication Interface | -IM: M12 aviation plug; -I: 1 RJ45 10M/100M Ethernet port |
| Audio | Build-in microphone, audio output(line out) |
| Audio Interface | 1 build-in microphone, 1 audio out interface (line out) |
| GENERAL | |
| Operating Conditions | -30 °C to +60 °C (-22 °F to +140°F), Humidity 95% or less (non-condensing) |
| Power Supply | DC12V; PoE (802.3af) |
| Power Consumption | Max. 5W |
| IR Range | Up to 10 m |
| Protection Level | IP66, IK8 |
| Dimensions | 99.3 × 96.7 × 52.8 mm (3.9″ × 3.8″ × 2.1″) |
| Weight | 420 g (0.92lbs) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| DS-2XM6122FWD-I | Hikvision 2MP Outer Vehicle Mobile Dome Camera, WDR, 10m IR, IP66, IK08, 6mm | $324.36 | Add to Cart | |
| DS-2XM6122FWD-I | Hikvision 2MP Outer Vehicle Mobile Dome Camera, WDR, 10m IR, IP66, IK08, 8mm | $324.36 | Add to Cart |
Product Accessories
| Filename | Size | ||
|---|---|---|---|
 |
DS2XM6122FWDI M User Manual.pdf | 4MB | Download |
|
DS2XM6122FWDI M Datasheet.pdf | 1MB | Download |
