SAM4S ER-940
POSMarket SKU: Z2186

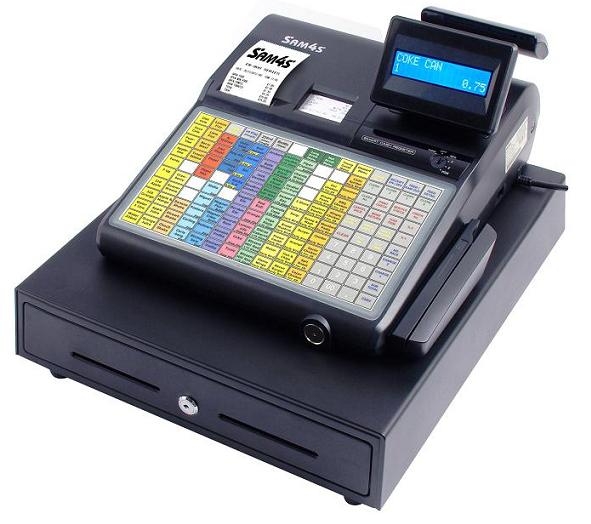

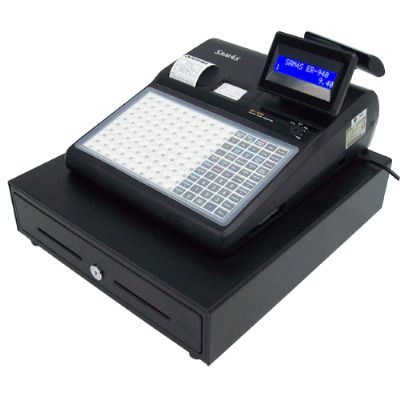

Introducing the SAM4S ER-940 Thermal Dual Station Cash Register. This register is manufactured by SAM4S, the market leader in Cash Registers. It has an attractive, user friendly design and is available at a competitive price. If you are in the small to medium restaurant/retail space market, then this register is made for you.
Product Overview
Product Specifications
| Printer | 2 Station Direct Thermal Type with Auto Cutter on Receipt |
| Printing Speed (Max.) | up to 22 Lines/sec |
| Paper Width | 57 mm +/- 0.5 mm |
| Paper Roll Diameter | Max 83.0 mm |
| Paper Supply Method | Easy Paper Loading, Drop in and Print |
| Keyboards | 150 Key Flat Keyboard or 91 Key Raised Keyboard |
| Display | Operator: LCD 2 Lines of 16 Characters (Blue Backlight) Customer: 9 Digit VFD |
| Drawer | Metal drawer 4B/8C with media Slots |
| I/O Ports | 3 x RS232 (2 x DB9, 1 x RJ45) 1 x USB (virtual COM) this port can be changed to RS232 (RJ45) (optional) 1 x SD Slot (not compatible with SDHC) |
| Memory | ROM: 16 MBits Flash ROM RAM: 16 MBits SRAM |
| Memory Protection | 90 Days |
| Memory Configuration | up to 15000 PLU's Max. 99 Clerks Max. 99 Groups Max. 500 Checks (Accounts/Tables) Max. 200 Lines per record Soft (Restaurant Style) or Hard (Service Station Style) Check (Account) System Max. 2 Price Levels Max. 99 Mix & Match Max. 50000 lines Electronic Journal (Maximums depends on Memory sharing choices) |
| OS Functions | 32 Character per Line Logo Description (6 Lines Heading + 6 Lines Footing) 18 Character Description 15 Digit PLU Number 5 Modifier Levels 20 Macro keys (with Manager Control Option) 10 Tender Keys Charge Posting Accounts Max. 4 Currency Conversion Inventory Item Condiment Item Table Management or Clerk Interrupt Training Mode 6 Digit Clerk Password Graphic Logo on the Receipt Heading and Footing Maximum 200 Line Record per Transaction |
| Software Utilities | Programming Utility Software, ASCII converter for PC comm's Virtual Com Port Driver for Windows (32/64-bit) |
| Power Supply | AC 230V +/- 10% |
| Power Consumption | 19W |
| EMC/Safety Standards | CE, FCC, UL, TUV, GS, C-tick |
| External Dimensions (WxDxH) | 400 x 455 x 305 mm |
| Weight | 12.4 Kg |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| ER940 | Dual station Cash Register | $1,129.91 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| CAS Sam4S ER series to AP1 cable | Cable Sam4S ER series DB9F cable - CAS AP1W 2m | $36.22 | View Product |
| SAM4S Cash insert for ERx | Cash drawer insert Assy for SAM4S Registers with Large Metal Drawer. | $128.87 | View Product |
| CAS CAB-E101PD2 | Cable DB9F/ DB9M for connecting to PD2 | $36.22 | View Product |
| SAM4S CAB-E101PC9 | RS232 Serial Cable. | $41.56 | View Product |
| POSMarket Serial Printer Cable | RS232 serial Printer Cable | $19.80 | View Product |
| Goodson USB Cable | USB Cable A to A; USB 2.0 A to B Cable | $6.90 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
ER-900 Series Brochure | 350KB | Download |
|
ER-900 AU User Manual | 3MB | Download |
