SAM4S SPS-530
POSMarket SKU: Z2184
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.

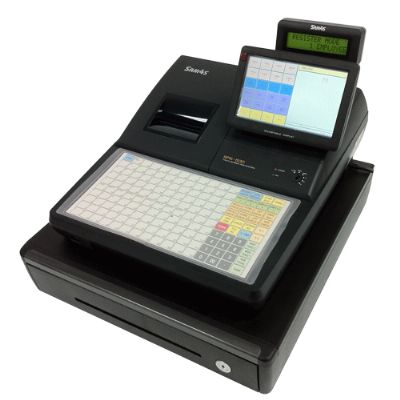

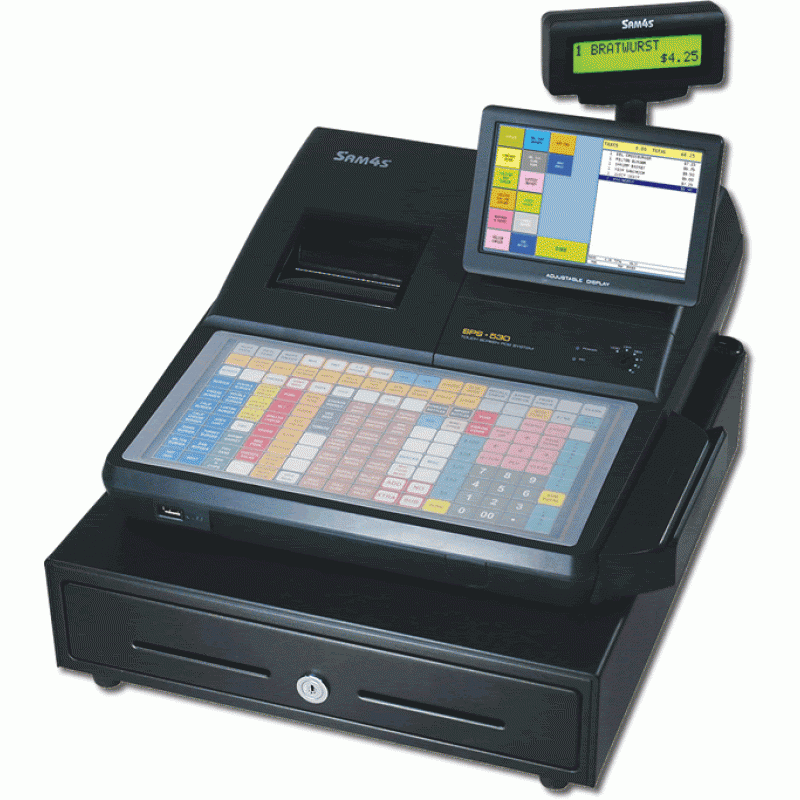

The SPS-530 is a high end ROM Based Cash Register System with 7" Touch Screen, a full size Membrane Keyboard and an 80mm Thermal printer. The SPS-530FT is a high end Cash Register solution for a wide range of Hospitality and Retail environments.
Product Overview
The Sam4s SPS-530 Cash Register is an ideal replacement for older technology ECR's, a cost-effective alternative to PC-based POS systems.
- High featured System Cash Register
- IRC (Ethernet) up to 32 Registers
- 7" TFT LCD Display with Touch
- 4 x RS232 ports for Scanner, Scale, PC communication, Kitchen/Bar Printer, EFTPOS, Kitchen Video Systems, Programmable Keyboard and Pole Display.
- 2 USB Ports, 2 Cash Drawer Ports. SD Memory card Reader.
- Up to 60000 PLUs (With 18 Digit Barcode, 20 Character Description)
- 2500 Accounts
- Optional MSR
Product Specifications
| Printer Type: | Direct Thermal, Drop-and-Print | ||||||||||||||||||||||||||||||||||
| Printer Stations | Receipt/Requistion 80mm Printer | ||||||||||||||||||||||||||||||||||
| Printer Speed | 100mm per Second | ||||||||||||||||||||||||||||||||||
| Displays | |||||||||||||||||||||||||||||||||||
| Operator: | 7 Inch TFT-LCD Touch Screen | ||||||||||||||||||||||||||||||||||
| Customer: | Pop-Up Turret, 2 Lines by 16 Characters | ||||||||||||||||||||||||||||||||||
Keyboard Capacity
| Flat: | 160 Programmable Locations | Raised: | Up to 90 Programmable Locations | Serial Ports: | Four Powered (5V Out) | COM1 & COM2 (D-Sub-9M) COM3 & COM4 (RJ45) USB Ports: | Two v2.0 (1 Front / 1 Rear) | Cash Drawer Ports: | Two Additional RJ11 (24V) Ports | (Supports Open/Close) LAN Port: | 10/100 Base-T Ethernet (TCP/IP) | Card Reader: | Optional Integrated Dual Track MCR | Compact Flash: | Optional 6MB Compact Flash Memory Expansion | Standard Cash Drawer: | 5 Bill, 8 Coin with Drawer Lock & 2 Media Slots | Dimensions | ECR: | 14-3/4"W x 16-3/4"D x 9-3/4"H (Including Turret) | Cash Drawer: | 15-3/4"W x 17-3/4"D x 4-3/8"H | Shipping Weight: | 33 lbs. (14.97 Kg) | Power Requirements: | 120 AC ± 10%, 60 Hz | Power Consumption: | Approx. 25 Watts | Operating Temperature: | 32 ~ 104 F (0 ~ 40 C) | Humidity Range: | 30% to 80% RH (Non-Condensing) | | ||
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| SPS-530FT/GOD/LDB | Flat Keyboard & Touch Screen Terminal | $1,365.03 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Wetcover Splash Proof Register Covers | Protect your investment with a protective silicone wetcover. | $26.32 | View Product |
| Goodson Cable RJ45 - db9f/ db25m | Cable RJ45 (ECR) to PC DB9F; POS Printer DB25 Male | $36.22 | View Product |
| CAS CAB-E101PD2 | Cable DB9F/ DB9M for connecting to PD2 | $36.22 | View Product |
| SAM4S CAB-E101PC9 | RS232 Serial Cable. | $41.56 | View Product |
| POSMarket Serial Printer Cable | RS232 serial Printer Cable | $19.80 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
SAM4S SPS530 Operation Manual | 512KB | Download |
|
SAM4S SPS530 Brochure | 352KB | Download |
|
SAM4SSPS530 Quick Start Guide | 1MB | Download |
