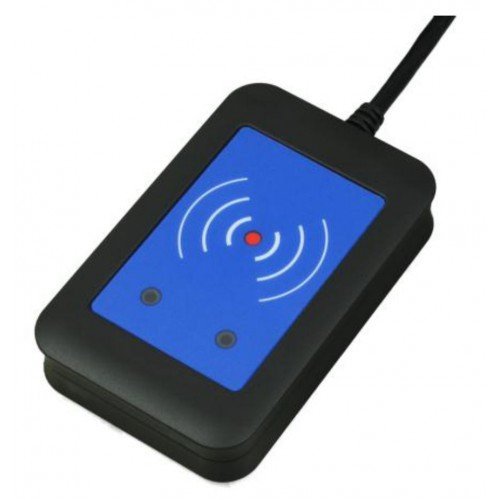

Elatec TWN4 MultiTech
POSMarket SKU: Z7208
This product has been replaced by the Elatec TWN4 Multitech V2. If you need this particular model rather than the replacement please contact one of our sales team on 1300 737 998.
The TWN4 MultiTech Combi Reader All-in-One. One Reader for 125134.2kHz and 13.56MHz 14443A14443B15693 NFC LEGIC Prime and LEGIC Advant.
Product Overview
TWN4 is the next generation of the well-established and proven TWN3 offering. This highly flexible RFID interrogator is capable of dynamically reading a broad spectrum of radio frequencies and tags. It is also able to incorporate various transponder types and frequency ranges, with minimal effort and cost. The device is an indispensable asset when developing applications and systems.
The TWN4 MultiTech family of transponder readers and writers allows users to read and write to almost any 125 kHz / 134.2 kHz and 13.56 MHz tags and/or labels.

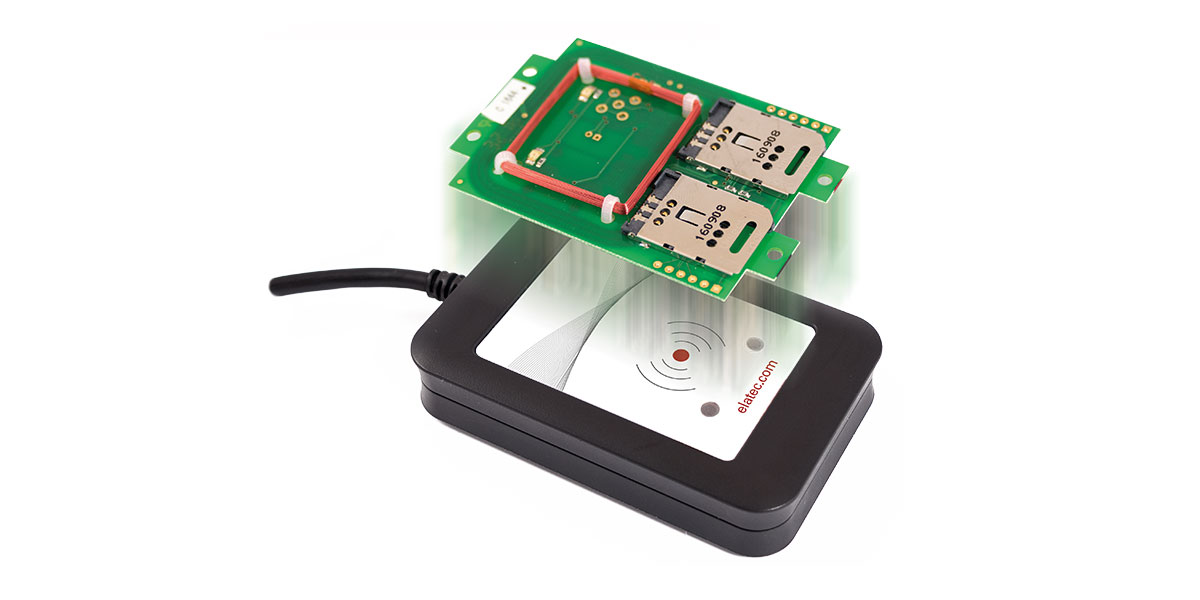

Elatec's TWN4 MultiTech / TWN4 MultiTech M is a contactless RFID reader/writer and a direct enhancement of the TWN3 with the same mechanical dimensions (OEM PCB and Desktop Housing). The TWN4 MultiTech family of transponder readers and writers allows users to read and write to almost any 125 kHz / 134.2 kHz and 13.56 MHz tags and/or labels. TWN4 MultiTech also supports all major transponders from various suppliers like ATMEL, EM, ST, NXP, TI, HID, LEGIC, and ISO standards like ISO14443A/B (T=CL), ISO15692 and ISO18092/ECMA-340 (NFC).
This reader is a multi-frequency reader that nearly supports all types of transponders in one reader. This is very useful to reduce stock or to handle companies that migrate from one to another RFID technology or have different RFID systems at different locations.
Features
The TWN4 MultiTech family of transponder readers and writers allows users to read and write to almost any 125 kHz / 134.2 kHz and 13.56 MHz tags and/or labels.
Elatec's TWN4 MultiTech / TWN4 MultiTech M is a contactless RFID reader/writer and a direct enhancement of the TWN3 with the same mechanical dimensions (OEM PCB and Desktop Housing). The TWN4 MultiTech family of transponder readers and writers allows users to read and write to almost any 125 kHz / 134.2 kHz and 13.56 MHz tags and/or labels. TWN4 MultiTech also supports all major transponders from various suppliers like ATMEL, EM, ST, NXP, TI, HID, LEGIC, and ISO standards like ISO14443A/B (T=CL), ISO15692 and ISO18092/ECMA-340 (NFC).
This reader is a multi-frequency reader that nearly supports all types of transponders in one reader. This is very useful to reduce stock or to handle companies that migrate from one to another RFID technology or have different RFID systems at different locations.
Features
- Powerful SDK for writing apps which are executed directly on the reader
- Firmware update in the field possible
- On-board 18 kB flash storage, e.g. for storing user accessible non-volatile data
- Direct chip-commands support
- Two on-board SAM sockets (Secure Access Module)
- CCID and PC/SC 2.01
- Dedicated expansion bus for connection of LCD, mass storage, etc.
- 2 GPIOs
- Supports Apple VAS and ECP 2.08)
- Supports quick (re)configuration over network and over wireless interface with TWN4 CONFIG Card
- TWN4 Upgrade Card for P and PI options available on request
- 3D construction data (STEP) available on request
- Available as desktop version or PCB module (OEM board)
Product Specifications
| Technical Data | |
| Frequency | 125 kHz (LF) / 13.56 MHz (HF) |
| Antenna(s) | Integrated |
| Operating Modes (USB | USB keyboard emulation USB virtual COM port CCID / PC/SC 2.01 |
| Power Supply | 4.3 V - 5.5 V via USB or RS-232; RS-232 requires 5 V external power supply; via
connector CNB 3.3 V ± 5% Limited power source according to the safety norms listed in the respective declaration of conformity, short-circuit current < 8 A |
| Current Consumption | RF field on: 120 mA typically / Sleep: 500 µA typ. / Cyclic Operation: TBD |
| MTBF | 500,000 hours |
| OS Support | Windows Embedded CE4), 7 (32-/64-bit), 8, 8.1, 10, Linux, Android4), iOS4), MAC OS X4) |
| Transmission Speed | Host: USB Full speed (12 Mbit/s), RS-232: up to 115,200 baud, Air: up to 848 kbit/s |
| Temperature Range | |
| TWN4 MultiTech | Operating -25 °C up to +70 °C (-13 °F up to +158 °F) Storage -40 °C up to +75 °C (-40 °F up to +167 °F) |
| TWN4 MultiTech M | Operating -25 °C up to +80 °C (-13 °F up to +176 °F) Storage -40 °C up to +85 °C (-40 °F up to +185 °F) |
| Relative Humidity | 5% to 95% non-condensing |
| Read / Write resistance | Up to 100 mm / 4 inch, depending on environment and transponder |
| Physical Data | |
| TWN4 MultiTech | Dimension 88 mm x 56 mm x 18 mm / 3.5 inch x 2.2 inch x 0.7 inch Weight approx. 117 g / 4.13 oz (with cable) |
| TWN4 MultiTech M | Dimension 76 mm x 49 mm x 14 mm / 3.0 inch x 1.9 inch x 0.6 inch Weight approx. 12 g / 0.43 oz (no cable) |
| Peripheral Interface | USB, RS-232, TTL serial (logic level 3.3 V, CMOS, 5 V tolerant), I²C, 2 GPIOs, Clock/Data, Wiegand |
| Others | |
| Certification name | TWN4 MultiTech
TWN4 MultiTech M |
| Certifications | TWN4 MultiTech: ACMA, CE/RED, FCC, IC, Apple VAS and ECP 2.0 certified, and many more |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| T4DT-FB2BEL-P | TWN4 Desktop RFID Reader. 13.56/NFC Multi reader, Black, USB interface | $CALL |
| Model | Description | Prices From | |
|---|---|---|---|
| Elatec TWN4 Reader Snap-In Holder | Snap-In Holder black Snap-In holder with double sided adhesive pads for easy fixation of TWN3 / TWN4 desktop readers. | $61.88 | View Product |
| Elatec TWN4 MultiTech 2 Panels Housing w/ LED Holes | Plastic housing for external installation of RFID readers. | $57.75 | View Product |
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
| Filename | Size | ||
|---|---|---|---|
 |
TWN4 MultiTech User Manual | 1MB | Download |
|
TWN4 MultiTech M User Manual | 443KB | Download |
|
RFID Product Overview 2014 | 3MB | Download |
|
RFID Brochure 2014 | 3MB | Download |
|
Elatec TWN4 MultiTech M Spec Sheet | 221KB | Download |
|
TWN3-TWN4 Supported Transponders Firmware | 385KB | Download |
