Elatec TWN4 Slim
POSMarket SKU: Z13951

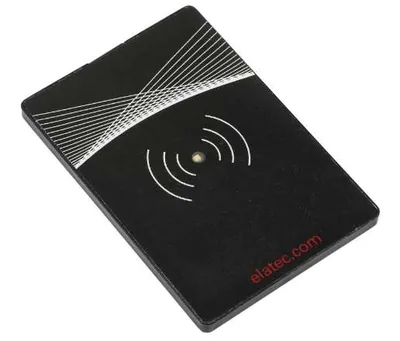

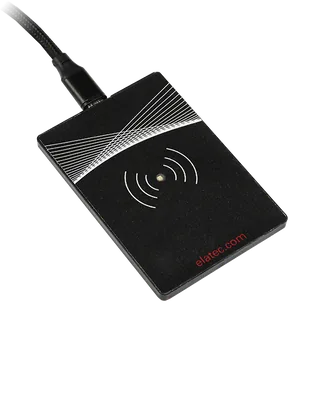

The TWN4 Slim is Elatec's smallest, compact and flat RFID Reader, being smaller than an ID-1 card. It supports a huge range or LF and HF technologies and also supports NFC and Bluetooth Low Energy, with the option to operate as a stand alone unit or connected via a micro-USB to a PC or other device
Product Overview
TWN4 Slim is perfectly suited to embed it into machines and devices, and especially MFP printers with optional clip-on snap-in
cover.
Features:
- Standalone operation and flush-mount integration into printers and other industrial applications

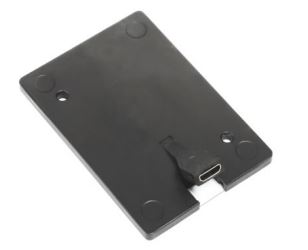

- Mounting holes for easy and fast installation
- Integrated LF and HF antennas
- One socket for Secure Access Modules (SAM) cards, ID-000 form factor
- Flexible cable with micro USB connector
- Supported USB stacks: keyboard emulation, virtual comport and CCID/PCSC
- Integrated BLE module 2.4 GHz for data communication and authentication, BLE v4.2, upgradable
- Supports quick (re)configuration over network and over wireless interface with TWN4 CONFIG Card
- Direct chip-commands support
- Powerful SDK for writing apps which are executed directly on the reader
- On-board 18 kB flash storage, e.g. for storing user accessible non-volatile data
- TWN4 Upgrade Card for P and PI options available on request
- Customizable design inlay
- 3D construction data (STEP) available on request
Product Specifications
| Frequency | 125 kHz (LF) / 13.56 MHz (HF) / 2.4 GHz (BLE) |
| Antenna | Integrated |
| Dimensions | 65.5 mm (L) x 45.5 mm (W) x 4.0 mm (H) |
| Read/Write Distance | LF and HF: Up to 80mm, depending on environment and transponder |
| Operating Modes (USB) | USB keyboard emulation USB virtual COM port CCID / PC/SC 2.01 |
| Bluetooth Low Energy | Bluetooth v4.2, software upgradable Standards as GAP, SM, L2CAP, ATT Predefined GATT structure AES128 supported |
| MTBF | 500,000 hours |
| Weight | Approx. 18 g |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| T4QK-FC02ELB7-P | TWN4 Slim Kit (Option-P). LF+HF+BLE, Slim in housing, Inlay Slim with holes, Slim mounting frame, Adhesive pads, USB-A male 120cm cable | $CALL |
Product Accessories
| Filename | Size | ||
|---|---|---|---|
 |
Elatec TWN4 Slim Brochure | 238KB | Download |
