Honeywell IF2B
POSMarket SKU: Z8848
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.
Advanced automated RFID performance in a compact & cost-effective design. The IF2B makes deployment of complex passive UHF asset tracking easier, and is the ideal reader for inventory management applications.
Product Overview
Packaged in a small and lightweight, yet durable enclosure, the IF2B is suited for nearly any environment, including industrial warehouse and manufacturing operations and enterprise environments for asset and inventory management applications.
Built to enable scalable low-cost deployments for improved return on investment, the IF2B network reader supports:
- Power over Ethernet
- Four mono- or bi-static RF ports
- Built-in, powered general purpose input output (GPIO) control
- Both standards-based LLRP and our easy to use Basic Reader Interface (BRI) application interfaces
The IF2B network reader's radio frequency (RF) platform offers best-in-class read performance and includes support for Honeywell's exclusive Advanced RFID Extensions (ARX) that help you achieve a new level of visibility in identifying RFID tags for greater tag reading accuracy compared to readers utilizing less-versatile, commodity chipsets.
Product Specifications
| IF2B RFID reader | |
| Length | 18.85 cm (7.42 in) |
| Length w/splash guard | 19.9 cm (7.87 in) |
| Width | 16.31 cm (6.42 in) |
| Height | 4.32 cm (1.70 in) |
| Weight | 1.0 kg (2.2 lbs) |
| LED Status Indicators | RFID service power PoE Ethernet tag detection and antenna port connection status |
| Enclosure | IP53 sealing Die cast magnesium base Lexan plastic cover |
| Communications | 10/100 BaseT Ethernet RS-232, USB for configuration |
| Input Power | PoE (802.3at compliant) DC power input (12 VDC +/-5%, 30W) sealed/locking connection Requires optional Honeywell 100/240 VAC converter |
| Antenna Connections | Four reverse-polarity (RP) TNC ports configurable for mono- or bi- static operation Antenna fault detection and auto tuning for best performance |
| Output Power | 1 to 30 dBm configurable in 1 dB steps (calibrated above 9 dBm) |
| Frequency Ranges | FCC (902-928 MHz) and ETSI (865-868 MHz) factory configured |
| Passive UHF Tag Protocols | ISO 18000-6B ISO 18000-6C EPCglobal UHF Class 1 Gen 2 |
| Tag Features | NXP G2X Impinj Monza 4QT extensions High memory tags (Fujitsu, Tego, ATA) |
| Security | FIPS 140-2 compliance for HTTPS, LLRP-secure, and Web Services (DCWS)-secure RADIUS client support SSL Certificate support |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| IF2B010020 | IF2b RFID Fixed Reader. 920 - 926MHz, AU | $1,606.55 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Honeywell IF2 Edge Service | With such a span of offerings, it can be difficult to choose the elements that are critical to your business. | $581.90 | View Product |
| Honeywell IF2 12V 30W AC Power Supply | Honeywell - 851-810-001 - Intermec AC Adapter - 30 W Output Power | $164.45 | View Product |
| Honeywell EDGE SERVICE GOLD IF2 | IF2, Edge Service, Gold | $145.48 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
Honeywell IF2 Quick User Guide | 4MB | Download |
|
Honeywell IF2 Quick Start Guide | 684KB | Download |
|
Honeywell IF2B-RFID brochure | 595KB | Download |
Product Videos
Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.
Contact our Team
Warehouse Locations
NSW
- Huntingwood 2148
- Rosehill 2142
- Rydalmere 2116
QLD
- Acacia Ridge 4110
- Tingalpa 4173
VIC
- Box Hill 3128
WA
- Burswood 6100
Related Products
Axeze AX-KEP
Data Capture > RFID Readers

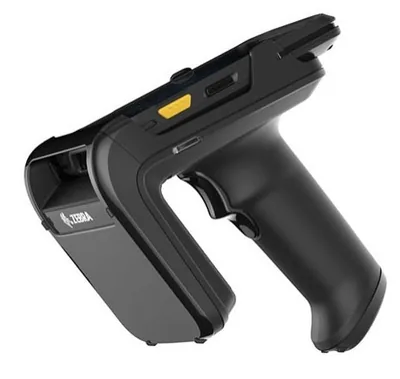

Zebra RFD2000
Data Capture > RFID Readers

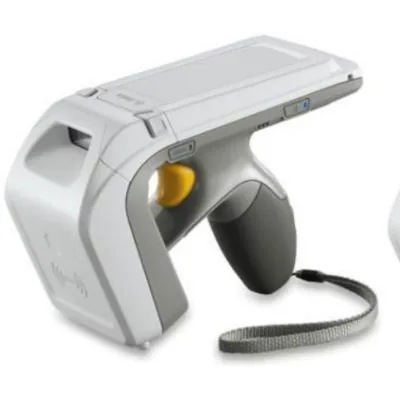

Zebra RFD8500
