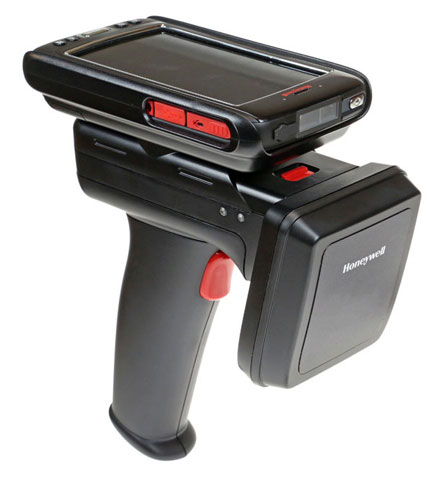

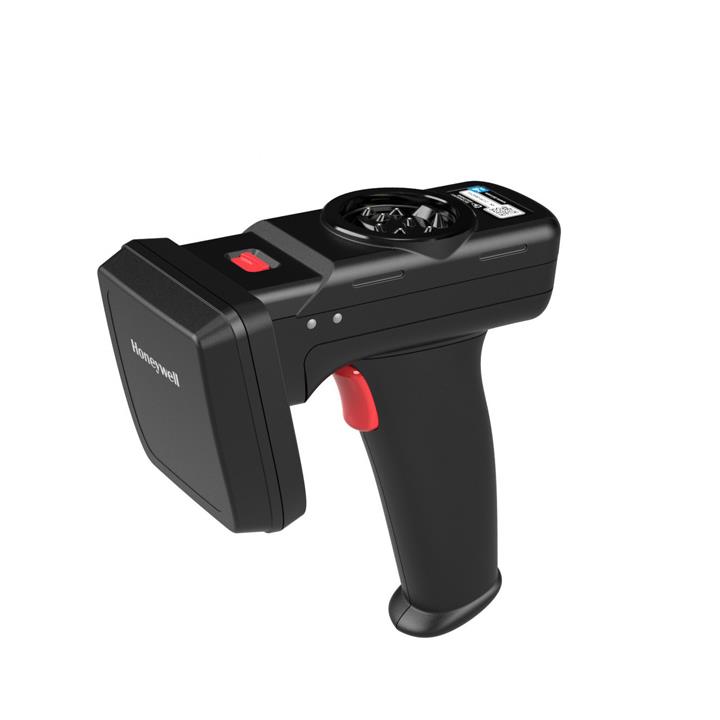

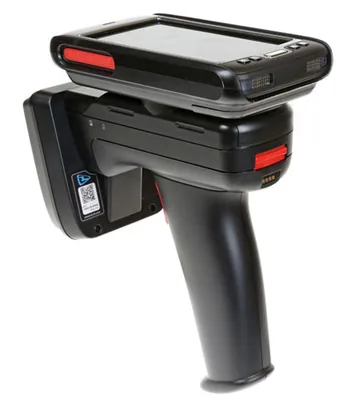

Honeywell IH21
POSMarket SKU: Z7371
The Honeywell IH21 is a compact, lightweight, semi-rugged RFID reader designed for use with the Honeywell mobile computer range. It is the perfect device for high performance RFID reading.
Product Overview
The IH21 UHF RFID reader has a unique, patented ePop-Loq snap-on connector integrated on the top surface, which enables a direct data and charge connection between the UHF reader and handheld mobile computer unit. The ePop-Loq snap-on system allows the user to quickly and easily connect one of Honeywell's popular mobile computers, such as the Dolphin 75e, Dolphin CT40, Dolphin CT50, Dolphin CT60, or ScanPal EDA50 series to the IH21 unit. The advanced antenna design also allows the IH21 unit to read most common supply chain RFID tags in front of the antenna, to eliminate bad reading results.
Users simply point, aim, and press the trigger - enabling all items within range to be read nearly simultaneously, significantly reducing cycle count time and speeding up the inventory process up to 20 times faster than using barcodes.
Connection to the mobile computer can be done either via USB or Bluetooth with the ePop-Loq. Once connected, the IH21 RFID reader and the mobile computer battery can be simultaneously charged in the docking station, ensuring users that the combined unit is always ready to go.
Product Specifications
| Bluetooth | V.4.2, +12 dBm SPP Profile, HID Profile, iAP2 Bluetooth Classic and Low Energy (BLE) |
| Bluetooth Range | 10 m (32 ft) |
| Bluetooth Pairing | PIN Simple Secure Pairing NFC OOB Pairing |
| USB | Communicates with select mobile computers via ePop-Loq case |
| RFID Standards | EPC Global Class 1 Gen 2 |
| RFID Antenna | Right hand circular polarized |
| RFID Frequency Ranges | EU: 865-868 MHz US: 902-928 MHz |
| RFID Nominal Read Range | 6 m (20 ft) |
| RFID Nominal Write Range | 3 m (10 ft) |
| RFID Output Power | 10 mW - 1 W, 10 dBm - 30 dBm |
| Optional Flash Memory Card | Up to 32 GB MicroSD/SDHC |
| Compatible Handheld Computers | Dolphin 75e Dolphin CT50 Dolphin CT60 ScanPal EDA50 |
| Battery Pack | Removable, rechargeable 4.2 V Lithium Polymer 2200 mAh, 8.4 watt hours |
| Drop Spec | Multiple 1.2 m (4 ft) drops to concrete at ambient temperature 0.9 m (3 ft) drops across the temperature range |
| Tumble | 500 tumbles at 0.5 m (1.6 ft) at ambient temperature |
| Environmental Sealing | IP54 |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| IH21A0020 | IH21 RFID Reader, AU | $CALL |
| Model | Description | Prices From | |
|---|---|---|---|
| Honeywell IH21 Battery 3.7V/23100mAh | Spare Battery, for IH21 RFID reader, 3.7V / 2300 mAh | $CALL | |
| Honeywell IH21 Charging Dock | IH21 Docking Cradle with World traveler PSU and Mini USB Lead. | $CALL | |
| Honeywell OPINTEL Service Management Pilot | OPINTEL Service Management Pilot Max 100 devices and 60 days. | $1.27 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
IH21 RFID Reader brochure | 498KB | Download |
