TSL 1062
POSMarket SKU: Z7160
This product has been replaced by the TSL 2173. If you need this particular model rather than the replacement please contact one of our sales team on 1300 737 998.
This compact Bluetooth dual technology HF RFID and laser barcode scanner is battery-operated and communicates wirelessly with a host computer via a standard Bluetooth interface. The Hand Scanner is compatible with devices running Windows Mobile 56 Windows CE and Windows XPVista7. The Bluetooth interface enables the operator to use the scanner up to 100m from the host computer. The scanner has audible visual and vibrator indication of a read. The design incorporates a 1D laser scanner for reading barcodes. The combination dual technology scanner also provides the ability to read and write to ISO15693 13.56MHz high frequency smart label transponders.
Product Overview

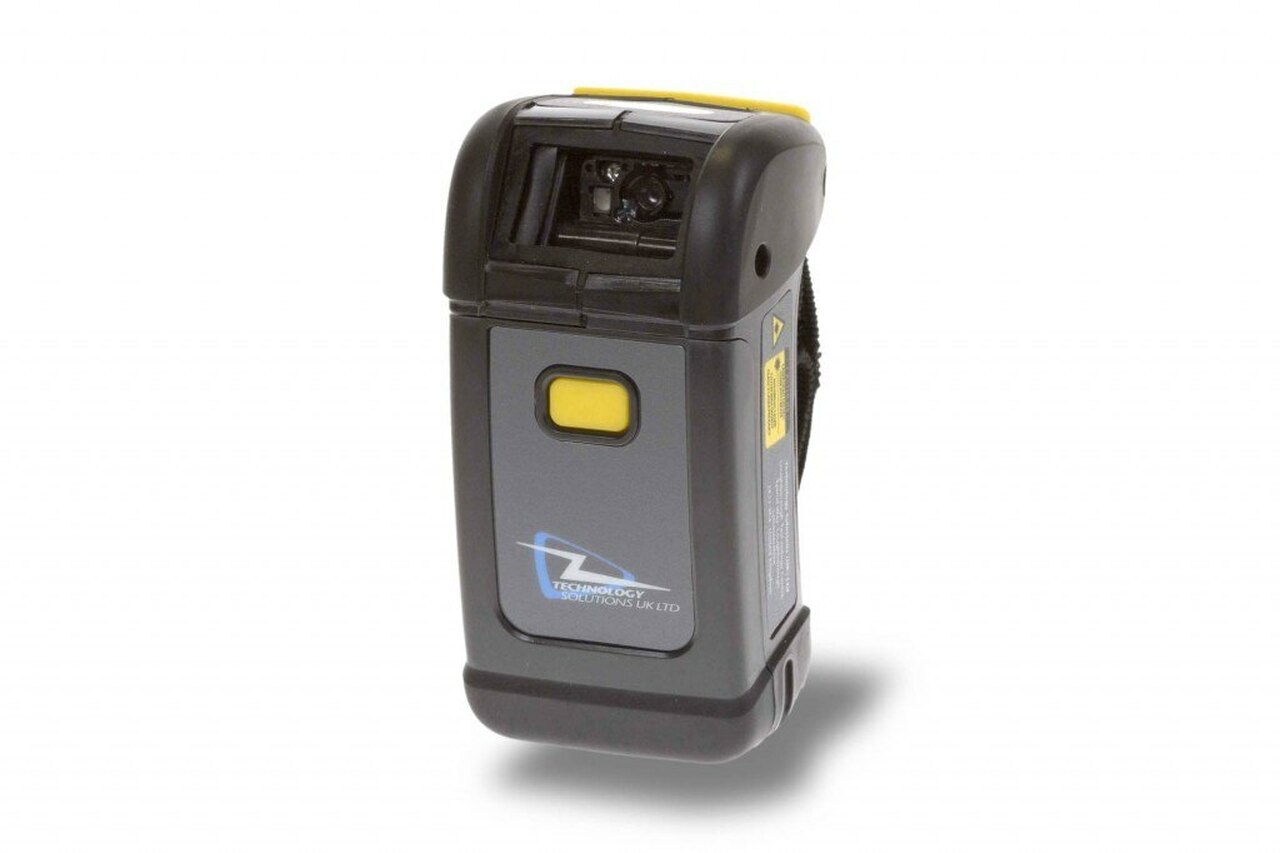

This compact, dual technology HF RFID and laser bar code scanner is battery operated and communicates wirelessly with a host computer via a standard Bluetooth wireless technology interface.
The hand scanner is compatible with devices running Android, Windows XP/Vista/7/8, Windows CE, or Windows Mobile 5/6/6.5 (the host device must have Bluetooth functionality). The Bluetooth® wireless technology interface enables the operator to use the scanner up to 100m from the host computer. The lightweight construction and ergonomic design of the 1062 Bluetooth® HF RFID & Barcode Hand Scanner allows dexterity to be maintained in challenging environments, whilst the rugged design of the scanner means that it can withstand multiple drops to concrete of up to 1.5m (5ft).
Dual Scanning Technology
The design incorporates a 1D laser scanner for reading barcodes. The combination dual technology scanner also provides the ability to read and write to ISO15693 13.56MHz high frequency smart label transponders.
The charge cradle provides charging for a spare battery pack as well as the main device, and also provides serial communications with a host PC for firmware up-grades and downloading of batch collected data.
The combination scanner is available initially as an Explorer kit which contains the combination scanner, sample ISO15693 13.56 MHz RFID tags, demonstration application, source code and full documentation. SmartWedge software for mobile devices enables easy integration with form based applications supporting most of the commonly used Control characters.
Product Specifications
| Physical Characteristics | |
| Dimensions: | 92x48x50 mm (3.6x1.9x2.0 inches) |
| Weight: | 92g (3.25 oz) |
| Enclosure material: | PC/TPR |
| Colour: | Grey/black |
| Material finish: | Sparked surface with moulded shock protectors |
| Battery Capacity: | 1350mAh |
| HF RFID Reader | |
| Frequency: | 13.56MHz |
| Read Distance: | Max 5cm (2 inches) using ISO7810 size credit card format transponders |
| HF Transponder type supported: | ISO15693 compliant tags |
| Scanner | |
| Bar code engine : | 1D Laser scanner |
| Operational time per single battery charge: | Approx 20 hrs laser scanning every 15s (at ambient temp) |
| Environmental | |
| Operating Temp: | -20C to +50C |
| Storage Temp: | -30C to +60C |
| Charging Temp: | 0C to +45C |
| Humidity: | 5% to 90% Relative humidity Non Condensing |
| Drop Spec: | Multiple drops to concrete from 5ft |
| Sealing: | IP54 |
| EMI/RFI: | EN 300 330, EN 301 489, CE, FCC |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| 1062-01-BT-HSCAN-SET | 1062 Bluetooth HF RFID Reader with 1D Laser Barcode Scanner. Includes Cradle, Serial Cable, PSU, Line cord, 1000mAh Li-Poly battery | $1,258.13 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| TSL Standard Battery for TSL 1062 | Spare battery for TSL 1062. | $140.25 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
TSL 1062-BT Scanner DS | 625KB | Download |
