TSL 1166
POSMarket SKU: Z8854

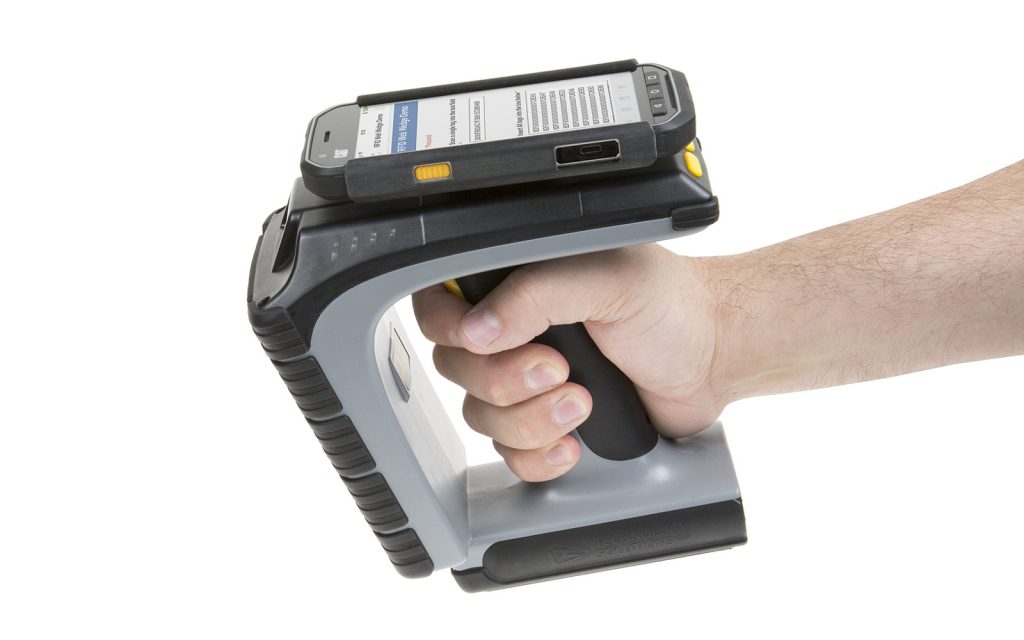

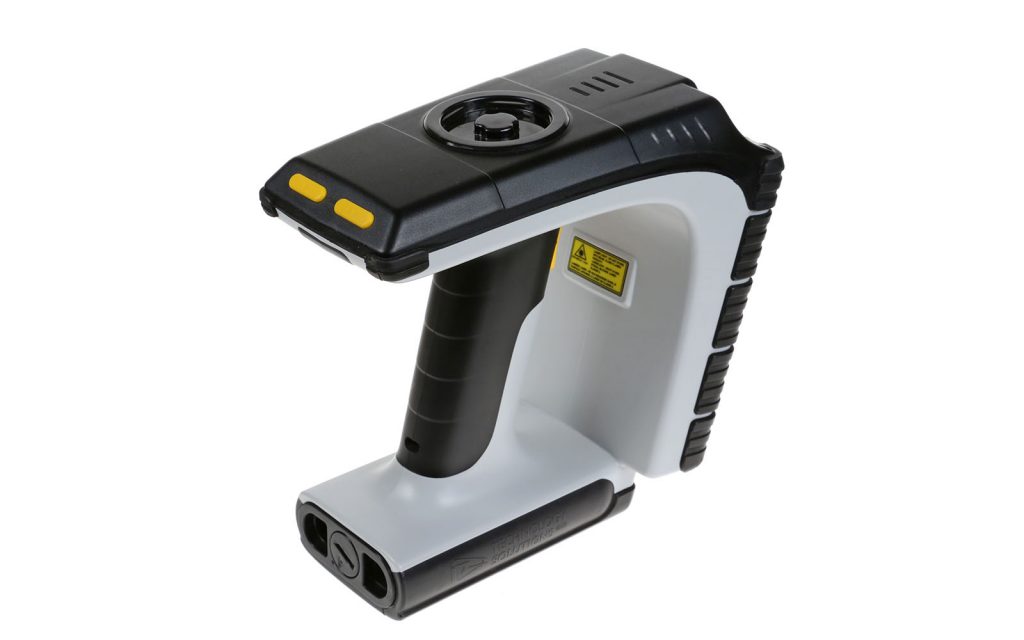

The 1166 is TSL's ultra-rugged handheld Bluetooth RFID reader. It is highly resistant to water, dust, and drops. You can pair any Bluetooth smartphone, tablet, or enterprise mobile device to the 1166 and the optional mounts allow you to combine the reader and device to create an "all-in-one" solution. If barcode scanning is required, choose the model with integrated 2D scanner.
Product Overview
Ultra Rugged Design
Highly resistant to water, dust and mechanical trauma.
Choose your Barcode Imager
A range of optional barcode engines can be specified to provide 2D data capture at distances of up to 15m.
Batch Mode Operation
The 1166 can store over 40 million transponder EPCs - date and time stamped by the on-board Real Time Clock. The internal storage can be directly mounted in a Windows environment using the 1166 Docking Station Kit (separate purchase).
All Day Scanning
A high capacity battery enables non-stop operation of the reader over the full working day.
Attach Smartphones or Handhelds

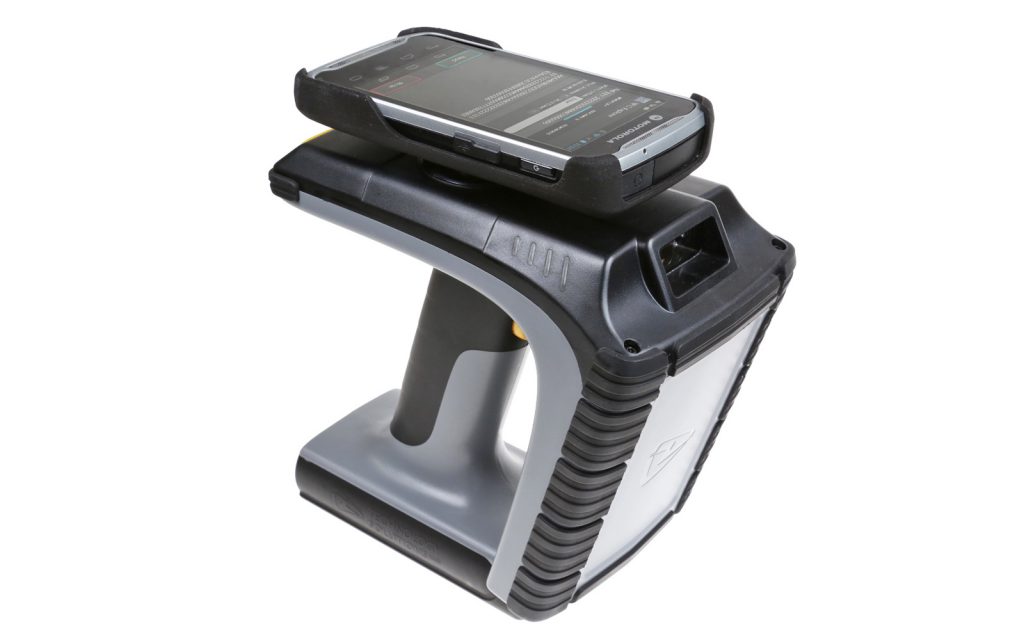

Use standalone or devices can be mounted on top of the reader using an easy press-lock adapter to provide a one-piece solution.
OS Independence
Operates with Android, iOS and Windows.
Docking Station
Docking Station (separate purchase) provides charging of the 1166 Reader and direct USB data connectivity with the embedded NAND storage card.
Product Specifications
| RFID engine | TSL custom module with embedded Impinj R2000 |
| Communication protocols | TSL ASCII 2 Protocol (Parameterised ASCII command set) Impinj binary |
| Memory | Embedded 4GB internal NAND storage |
| Compatible Host devices (Bluetooth) | Serial Port Profile (SPP) Human Interface Device (HID) profile (Android, iOS, Linux, Mac, Windows) |
| Dimensions | 177mm (h) x 94mm (w) x 170mm (h) |
| Weight | 860g (inc. battery) |
| User input | Single stage trigger |
| User feedback | Speaker Vibration motor LEDs |
| RFID Standards supported | EPC Class 1 Gen 2 and EPC C1G2 (TBD) |
| Nominal read range | Up to 6m |
| Antenna | Circularly Polarized |
| Frequency Range | EU: 865-868MHz US: 902-928MHz |
| 2D Imager options | Motorola SE4500 Intermec EX25 Honeywell EA31 |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| MCTS1166AX1 | TSL 1166 Bluetooth Rugged UHF RFID Reader. No Scanner, FCC/North America/Australia | $3,664.38 | Add to Cart |
Product Accessories
| Filename | Size | ||
|---|---|---|---|
 |
TSL 1166 User Guide | 2MB | Download |
|
TSL 1166 brochure | 864KB | Download |
