Zebra FX7500
POSMarket SKU: Z4327
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

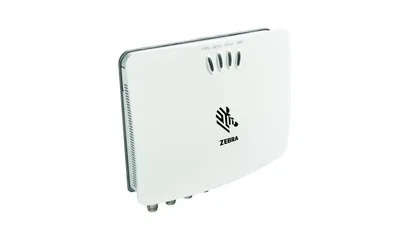

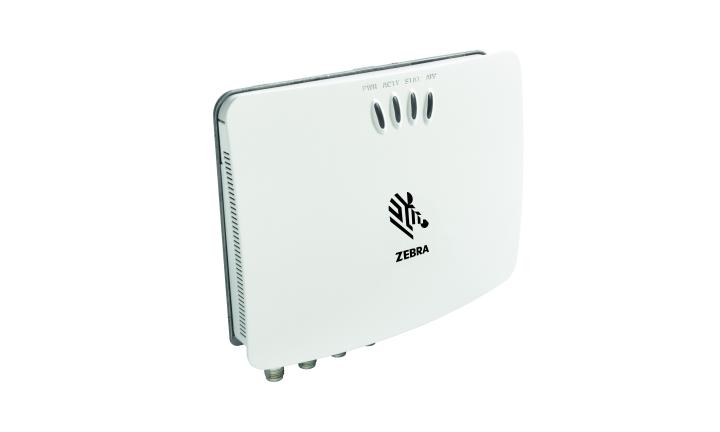

Introducing the FX7500 Fixed RFID reader, the latest innovation from Zebra. This cutting-edge reader incorporates Zebra's meticulously designed RFID radio technology, delivering unmatched performance in terms of speed, accuracy, and reliability, even in demanding environments.
Product Overview
The FX7500 combines an appealing design with a compact and low-profile form factor, making it a perfect fit for various business environments. Its sleek appearance blends seamlessly into any setting. Not only does it enhance the aesthetics, but it also proves advantageous on your balance sheet. Packed with a comprehensive set of integrated features and functionality, the FX7500 offers exceptional value for your business-class applications. It not only delivers outstanding performance but also ensures a strong return on investment, making it a smart choice for your enterprise needs.
Product Specifications
| ELECTRICAL | |
| Air Interface Protocol: | EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C) |
| Operating Frequency: | FCC (902-928 MHz) |
| Transmit Power: | +31.5 dBm |
| Max Receive Sensitivity: | -82 dBm |
| Max Read Distance: | Not Published |
| Max Read Rate: | Not Published |
| Data Interface: | Ethernet with POE support |
| GPIO: | 2 inputs, 3 outputs, optically isolated |
| Power Source: | Power supply if selected or POE |
| MECHANICAL | |
| Antenna Ports: | 4 monostatic ports (RP-TNC female) (connects to RP-TNC male) |
| Dimensions: | 195.6 x 149.9 x 43.2 mm (7.7 x 5.9 x 1.7 in) |
| Weight: | 0.86 kg (1.9 lbs) |
| ENVIRONMENT | |
| IP Rating: | IP 53 |
| Operating Temperature: | -20 Degrees to +55 C (-4 Degrees to +131 F) |
| APPLICATION INTERFACE | |
| Host API: | C, .NET |
| Demo Software: | PowerSession |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| FX7500-42325A50-WR | FX7500 Fixed RFID Reader. Gen-2, 4 Port, Power over Ethernet, WW | $1,625.53 | Add to Cart | |
| FX7500-22325A50-WR | FX7500 Fixed RFID Reader. Gen-2, 2 Port, Power over Ethernet, WW | $1,499.03 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Zebra OneCare Select for FX7500 | Comprehensive Repair/Replace, Software & Technical Support for FX7500. | $124.48 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
fx7500 Spec Sheet | 241KB | Download |
|
FX7500 Quick Start Guide | 853KB | Download |
Product Videos
Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.
