POSMarket SKU: Z16008

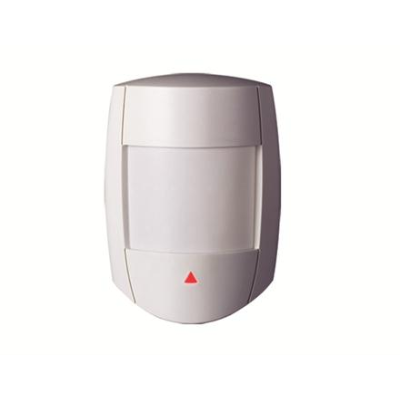

Digigard Quad Element Digital Motion Detector
| Sensor Type: | Quad element infrared |
| Sensor Geometry: | ISG (interlock) |
| Coverage: | 12m x 12m |
| Installation Height: | 2.1m to 2.7m |
| RFI / EMI Rejection: | 10V/m rejection from 10MHz to 1GHz |
| Voltage Input (typical): | - 11 to 16Vdc |
| Current Consumption: | 15mA max / 6mA min (LED disabled) |
| Anti-Tamper Switch: | 150mA / 28Vdc, N.C. |
| Lens: | 2nd generation Fresnel lens, LODIFF, segments |
| Detection Speed: | 0.2m/s to 3.5m/s ingress |
| Operating Temperature: | -20degC to 50degC, UL/ULC Tested to 0degC to 49degC |
| Environmental standards | somplies with EN 50131 security grade 2 / environmental class I |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| :PDX-DG65 | Digigard Quad Element Digital Motion Detector | $52.25 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
PDX-DG65 Installation Guide | 617KB | Download |
|
DG Detector Brochure | 1MB | Download |
