Paradox Analogue PIR
POSMarket SKU: Z16009

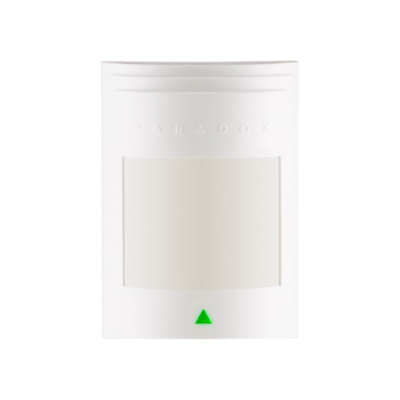

Paradox Analogue PIR
Product Overview
- Extremely high EMI and RFI rejection
- PCB uses only surface mount components
- Solid-state relay
- 11m x 11m, 110deg viewing angle
- Can be used with the PDX-SB469 swivel mount bracket
Product Specifications
| Sensor Type: | Quad element infrared |
| Sensor Geometry: | ISG (interlock) |
| Coverage: | 12m x 12m |
| Installation Height: | 2.1m to 2.7m |
| RFI / EMI Rejection: | 10V/m rejection from 10MHz to 1GHz |
| Voltage Input (typical): | - 11 to 16Vdc |
| Current Consumption: | 15mA max / 6mA min (LED disabled) |
| Anti-Tamper Switch: | 150mA / 28Vdc, N.C. |
| Lens: | 2nd generation Fresnel lens, LODIFF, segments |
| Detection Speed: | 0.2m/s to 3.5m/s ingress |
| Operating Temperature: | -20degC to 50degC, UL/ULC Tested to 0degC to 49degC |
| Environmental standards | somplies with EN 50131 security grade 2 / environmental class I |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| PDX-476 | Paradox Analogue PIR | $27.50 | Add to Cart |
Product Accessories
| Filename | Size | ||
|---|---|---|---|
 |
PDX-476 Installation Guide | 128KB | Download |
Product Videos
Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.
