Cherry SPOS G86-615xx

from $233.82 (incl. GST)

POSMarket SKU: Z2146

This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

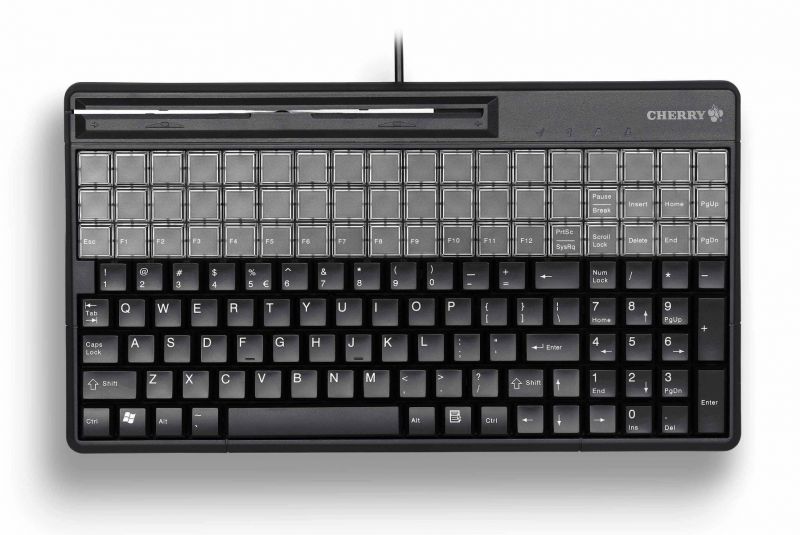

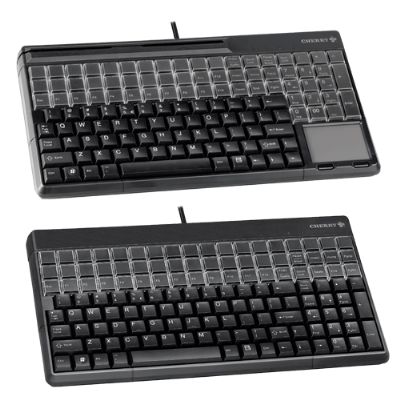

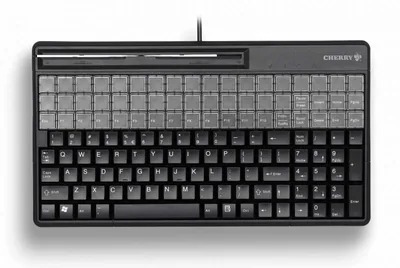

Freely programmable USB-keyboard with magnetic card reader (with encryption) and optional touchpad, mouse keys. The height of professionalism in both look and function. This fully programmable keyboard with extended alphanumeric layout and replaceable keys is designed first and foremost for commercial use at the POS. The model is extremely slim with its compact design and can also be inserted in recesses in the table. Multifunctional, Encryptable, Compact USB Keyboards with Enhanced Key Layout and optional Magnetic Card Reader & Touchpad for POS and Commercial Applications, the QWERTY Layout is Enhanced for Point of Sale Ease of Use

Product Rating
Product Overview
  • Full QWERTY Key Layout in Compact 14" Form Factor Combines Maximal Space Efficiency with Uncompromised Alphanumeric Data Entry
  • Enhanced US International 135/123 Position Key Layout
  • Robust Product Design with IP 54 Spill and Dust Resistant Key Field for Harsh Environments
  • Plug & Play Configuration for all common POS Features
  • Unique Function Enhancement with CHERRY ToolsVirtual Programming
  • Fully Programmable Keyboard with 54/60 Relegendable Keys for Easy Layout Configuration and Quick Function Calls
  • Option for Unlimited Programmability of all Keys in up to 3 Layers Provides Convenient Data Access
  • Moving of Keys' Allows for Easy Key Position Exchange Including Modifier Functions
  • High Performance encryptable 3-Track Magnetic Stripe Reader with Freely Programmable Headers and Terminators for Each Track
  • Dual Insertion for Bidirectional Swipe of Magnetic Stripe Card
  • Audible and Visual Indication of MSR Good Read
  • Powerful CHERRY ToolsConfiguration Software Allows for Quick Product Set
Product Specifications
KeyboardsKey technology: ATK Technology
Service life, standard key: > 20 million key operations
Inscription technology: Laser
IP54 spill and dust resistant
Number of Keys:
Without Touchpad: 135 Keys of which 54 relegenable
With touch: 123 Keys of which 64 relegenable
Model dependent:
Touchpad: 1000 dpi resolution, 2 key-activated mouse buttons
I/O Devices (Intergrated)Model Dependent
Magnetic card tracks: Track 1, 2 and 3
Tripple Data Encryption Algorithm (Triple DES) with Derived Unique Key per Transaction (DUKPT) key management
Magnetic card standards: ISO 7811/-12, JIS 1/2, AAMVA, Others on request. PCI DSS 3.0 compliant
Magnetic card reading speed: 10 - 152 cm/s
Magnetic card swipe direction: Bi-directional
InterfacesUSB 2.0
Cable Lenghtapprox. 1.85 m
Current Consumptiontyp. 72 mA
Operating Environment0 C to 50 C
Storage Environment-20 C to 60 C
External Dimensions (WxDxH)approx. 360 x 198 x 38 mm
Weight1.4 Kg
ReliabilityKeyswitch Lifetime: 25 mill. operations
MSR: Durability 1 mill. cycles
Product ComplianceC-tick, C-tick, cURus, CE, FCC, VCCI, RoHS, WHQL
ModelDescriptionPriceStock
G86-61511EUADAA SPOS 61511 QWERTY Keyboard, MSR, Touchpad, USB, Black $273.01
Call
 Add to Cart
G86-61510EUADAA SPOS 61510 QWERTY Keyboard, MSR, USB, Black $233.82
Call
 Add to Cart
ModelDescriptionPrices From
Cherry M-5400 Comfortable Plug & Play Mouse, suitable for left and right handed use. $8.94 View Product
Cherry Keycaps for G86XX Keycaps for Cherry programmable keyboards $2.23 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document G86 615xx Encrypted Data Sheet 111KB Download
