Tipro Free Range KMQ-128A
POSMarket SKU: Z2160
This model is available in 3 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

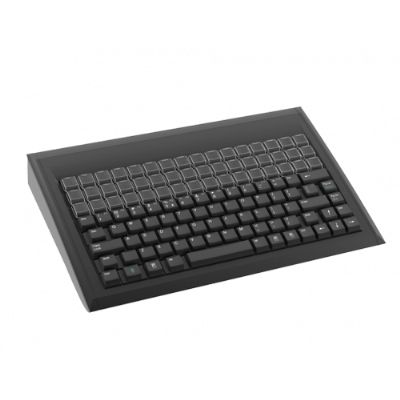

Tipro QWERTY Key keyboard module for the Free range products.
Product Overview
- Programmable keyboard
- QWERTY Section 5 Bottom Rows
- 48 free programmable clear capped keys on upper 3 rows
- Easy to use software utility
- Power Consumption typical 15mA
- Available with PS2/RS232 or USB Controller or without controller to connect to other Free range keyboard with a controller.
- Available in Black or other range of colours by special order only
- 329mm (W) x 222mm (D) x 42mm (H)
Product Specifications
| Keyboards | Key technology: Cherry MX Technology Service life, standard key: > 25 million key operations Number of Keys: 128 Keys QWERTY Layout on 5 Bottom Rows 48 Free Programmable Keys on Top Rows |
| I/O Devices (Intergrated) | Optional Module Available |
| Interfaces | Optional Modules: USB 2.0 PS2 and RS232 |
| Cable Lenght | approx. 1.85 m if Interface module fitted |
| Current Consumption | Typical 15mA for module without interface Typical 80mA (one keyboard module with integrated USB controller) Plus typical 15mA for any added modules |
| Operating Environment | 0 C to 40 C Relative humidity range: 20% to 80% (non-condensing) |
| Storage Environment | -10 C to 50 C |
| External Dimensions (WxDxH) | approx. 329 x 222 x 42 mm |
| Weight | Approx 1.2Kg |
| Reliability | Keyswitch Lifetime: 25 mill. operations |
| Product Compliance | C-tick, CE, RoHs |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| 42777 | QWERTY Keyboard, 48 Free Programmable keys on upper 3 rows, No controller, Black | $336.88 | Add to Cart | |
| 27416 | QWERTY Keyboard, 48 Free Programmable keys on upper 3 rows, USB, Black | $467.50 | Add to Cart | |
| 28954 | QWERTY Keyboard, 48 Free Programmable keys on upper 3 rows, PS2/RS232, Black | $438.63 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Tipro i-Button reader Module | FREE range TIPRO right end cover with i-Button Reader. | $149.88 | View Product |
| Tipro Track Ball Module | Tipro Track Ball module for the Free range products. | $191.13 | View Product |
| Tipro MSR Module | Tipro MSR module for the Free range products. | $165.00 | View Product |
| Tipro Double Keybody/ cover for Free Range | Double Horizontal Key cover for Free Range | $1.73 | View Product |
| Tipro Horizontal Keybody for Free Range | Free Range Double Horizontal key body that comes in different colors. | $1.73 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
KMQ-128A Technical Specifications | 4MB | Download |
