Tipro Free Range TM-KMX-032A
POSMarket SKU: Z2151
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

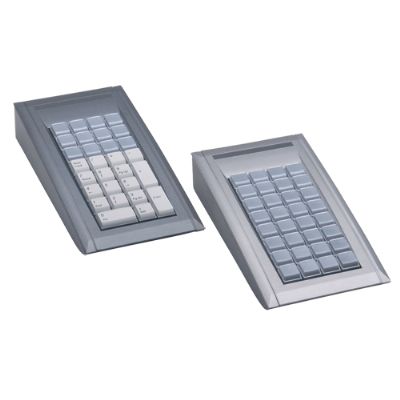

Tipro 32 Key Keyboard module for the free range products.
Product Overview
- Programmable keyboard
- 32 Key Matrix with Clear keycaps or pre-programmed numeric plus 12 key matrix
- Power Consumption typical 15mA
- Available with PS2/RS232 or USB Controller or without controller to connect to other Free range keyboard with a controller.
- Available in Black or other range of colours by special order only
Product Specifications
| Keyboards | Key technology: Cherry MX Technology Service life, standard key: > 25 million key operations Number of Keys: 32 Keys Available in Matrix Version or Numeric Key Layout |
| I/O Devices (Intergrated) | Optional Module Available |
| Interfaces | Optional Modules: USB 2.0 |
| Cable Lenght | approx. 1.85 m if Interface module fitted |
| Current Consumption | Typical 15mA for module without interface Typical 80mA (one keyboard module with integrated USB controller) Plus typical 15mA for any added modules |
| Operating Environment | 0°C to 40°C Relative humidity range: 20% to 80% (non-condensing) |
| Storage Environment | -10°C to 50°C |
| External Dimensions (WxDxH) | approx. 100 x 222 x 42 mm |
| Weight | Approx 350g |
| Reliability | Keyswitch Lifetime: 25 mill. operations |
| Product Compliance | C-tick, CE, RoHs |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| 42781 | Free Range Keyboard, Pre Programmed Numeric keys in lower 5 rows, 12 Programmable keys in top 3 rows. No Controller. Black | $178.75 | Add to Cart | |
| 27380 | Free Range keyboard, 32 Programmable keys. No Controller. Black | $171.88 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Tipro i-Button reader Module | FREE range TIPRO right end cover with i-Button Reader. | $149.88 | View Product |
| Tipro Track Ball Module | Tipro Track Ball module for the Free range products. | $191.13 | View Product |
| Tipro MSR Module | Tipro MSR module for the Free range products. | $165.00 | View Product |
| Tipro Double Keybody/ cover for Free Range | Double Horizontal Key cover for Free Range | $1.73 | View Product |
| Tipro Horizontal Keybody for Free Range | Free Range Double Horizontal key body that comes in different colors. | $1.73 | View Product |
| Tipro Vertical Double Keybody for free range | Free Range Double Vertical key body that comes in different colors. | $1.73 | View Product |
