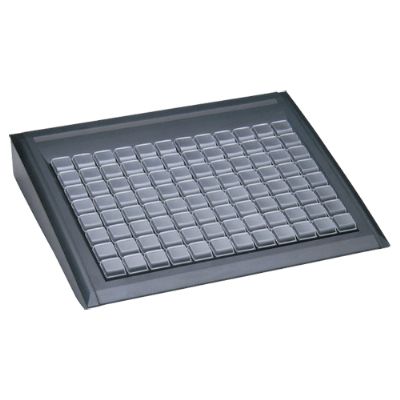

Tipro Free Range TM-KMX-096A
POSMarket SKU: Z2153
This model is available in 3 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.
Multifunctional, fully programmable modular keyboard with 12 x 8 Matrix Key layout keyboard module for professional commercial use, e.g. in Point-of-Service (POS).
Product Overview
- Programmable keyboard
- 96 Key Matrix with Clear keycaps
- Mechanical keys (Cherry MX) with ergonomic tactile feedback for frequent/intensive type
- Different keycap sizes available (single, double horizontal, double vertical, quadruple, blind)
- Two-part keycap structure: body & cover
- Various colours of keycap bodies and keycap covers available
- Available with PS2/RS232 or USB Controller or without controller to connect to other Free range keyboard with a controller.
- Programmable key contents/codes (e.g. Ctrl+Shift+F5) emulating standard keyboard entry
- Up to four different contents (layers) per key
- All key contents permanently stored in internal non-volatile memory of the Tipro controller
- Keyboards can be Customized with pad-printed key inscriptions on keycap bodies and/or covers
- Available in Black or other range of colours by special order only
- 253mm (W) x 222mm (D) x 42mm (H)
- Minimum order quantities apply for customized keyboard layouts
Product Specifications
| Keyboards | Key technology: Cherry MX Technology Service life, standard key: > 25 million key operations Number of Keys: 96 Keys |
| I/O Devices (Intergrated) | Optional Module Available |
| Interfaces | Optional Modules: USB 2.0 PS2 & RS232 |
| Cable Lenght | approx. 1.85 m if Interface module fitted |
| Current Consumption | Typical 15mA for module without interface Typical 80mA (one keyboard module with integrated USB controller) Plus typical 15mA for any added modules |
| Operating Environment | 0 C to 40 C Relative humidity range: 20% to 80% (non-condensing) |
| Storage Environment | -10 C to 50 C |
| External Dimensions (WxDxH) | approx. 329 x 222 x 42 mm |
| Weight | Approx 900g |
| Reliability | Keyswitch Lifetime: 25 mill. operations |
| Product Compliance | C-tick, CE, RoHs |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| 42928 | Free Range Keyboard, 96 Programmable keys, PS2/RS232, Black | $411.13 | Add to Cart | |
| 44981 | Free Range Keyboard, 96 Programmable keys, USB, Black | $383.63 | Add to Cart | |
| 27410 | Free Range Keyboard, 96 Programmable keys, No Controller, Black | $253.00 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Tipro i-Button reader Module | FREE range TIPRO right end cover with i-Button Reader. | $149.88 | View Product |
| Tipro Track Ball Module | Tipro Track Ball module for the Free range products. | $191.13 | View Product |
| Tipro MSR Module | Tipro MSR module for the Free range products. | $165.00 | View Product |
| Tipro Free range hand cover | Free range Wide Left, Right hand Cover, Black | $10.40 | View Product |
| Tipro Hand narrow cover | Left hand narrow cover for Free Range keyboards Titanium | $10.73 | View Product |
| Tipro Double Keybody/ cover for Free Range | Double Horizontal Key cover for Free Range | $1.73 | View Product |
| Tipro Horizontal Keybody for Free Range | Free Range Double Horizontal key body that comes in different colors. | $1.73 | View Product |
| Tipro Vertical Double Keybody for free range | Free Range Double Vertical key body that comes in different colors. | $1.73 | View Product |
| Tipro Free Range Keyboard controller | Free Range Controller for keyboard module and USB | $163.35 | View Product |
