Bixolon XD5-40
from $451.00 (incl. GST)
POSMarket SKU: Z8970
This model is available in 9 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

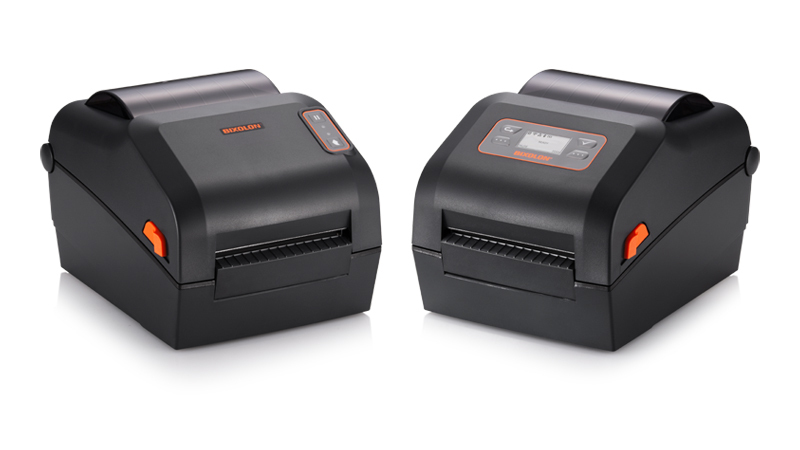

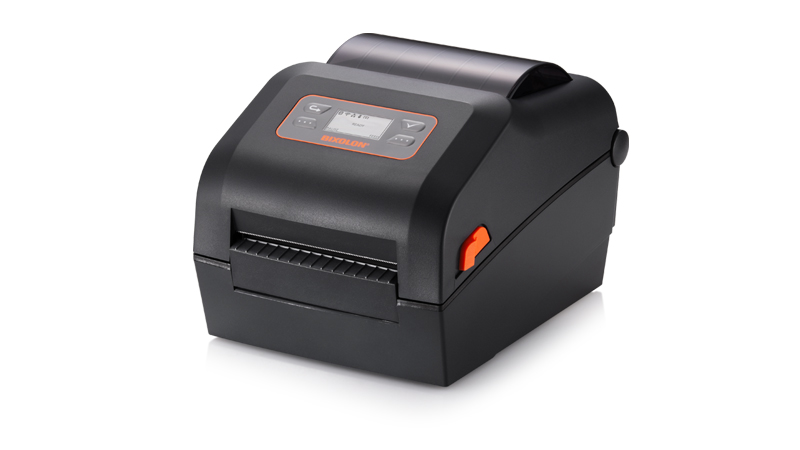

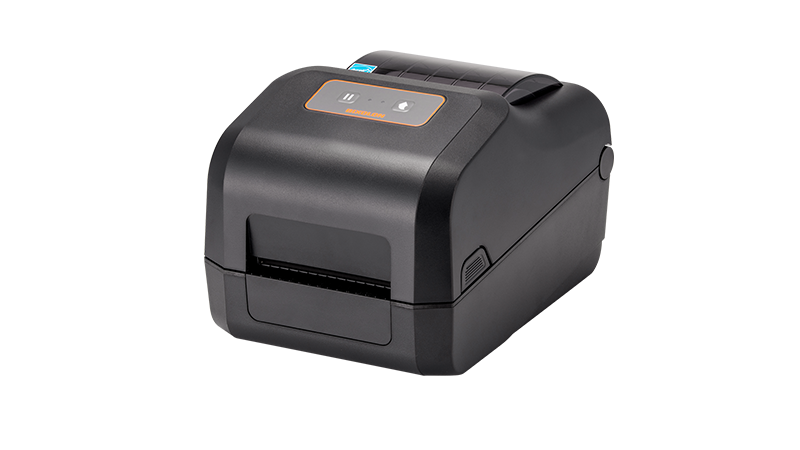

The Bixolon XD5-40 series is an exceptional desktop label printer available in Direct Thermal (XD5-40D) and Thermal Transfer (XD5-40T). The XD5-43 model also adds crips & clear 300dpi printing. It's one of the only desktop printers with WIFI interface as standard, so it's perfect for easy network connectivity.
Product Overview
The XD5 series printers are available in Direct Thermal or Thermal Transfer models. They are fully compatible with the market-leading programming languages such as SLCS, BPL-Z and BPL-E. They also support Smart Switch Programming Language, so will automatically switch languages and continue to print if a different label format is sent.
The XD5 series allows you to easily install, integrate, operate and maintain with exceptional print quality at 203dpi (XD5-40) or 300 dpi (XD5-43). The XD5 series can also connect to a wired or wireless network, with10/100 Ethernet or WLAN 802.11a/b/g/n options available.

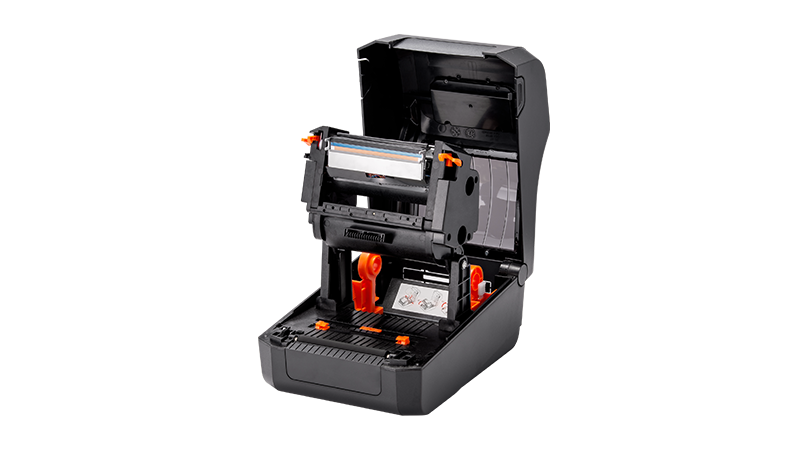

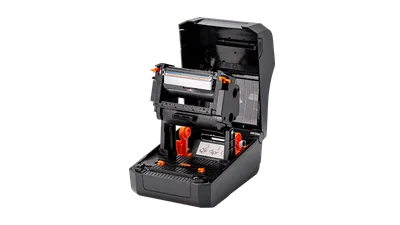

The XD5 series are incredibly easy to use and setup, and offers easy media loading with it's compact clamshell design with adjustable sensors and real-time calibration across a range of receipt, labels, tag or wristband media. It's long lasting print head, auto-cutter and tool-less removable platen rollers, minimise operation and maintenance costs.
The XD5 series offers easy integration with the availability of Windows, OPOS, Linux and MAC drivers, making it the ideal label printing solution for logistics and retail. Whether you want to print shipping labels, product labels, wristbands, tags or all of the above, the XD5 series is the ideal choice.
Features
The XD5 series allows you to easily install, integrate, operate and maintain with exceptional print quality at 203dpi (XD5-40) or 300 dpi (XD5-43). The XD5 series can also connect to a wired or wireless network, with10/100 Ethernet or WLAN 802.11a/b/g/n options available.
The XD5 series are incredibly easy to use and setup, and offers easy media loading with it's compact clamshell design with adjustable sensors and real-time calibration across a range of receipt, labels, tag or wristband media. It's long lasting print head, auto-cutter and tool-less removable platen rollers, minimise operation and maintenance costs.
The XD5 series offers easy integration with the availability of Windows, OPOS, Linux and MAC drivers, making it the ideal label printing solution for logistics and retail. Whether you want to print shipping labels, product labels, wristbands, tags or all of the above, the XD5 series is the ideal choice.
Features
- Fast processing and print speeds of up to 7 ips (XD5-40d), 6 ips (XD5-40t)
- Optional 300 dpi high resolution choice for fine print quality
- Dual-band WLAN (5 GHz and 2.4 GHz)
- Dual-mode Bluetooth V4.1 Classic and LE
- Extended memory space up to 256MB SDRAM, 256MB Flash
- A suite of SDKs for major operating systems

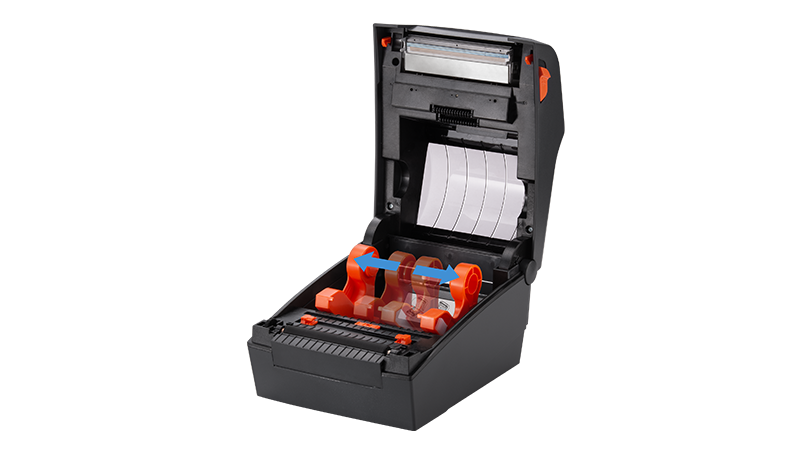

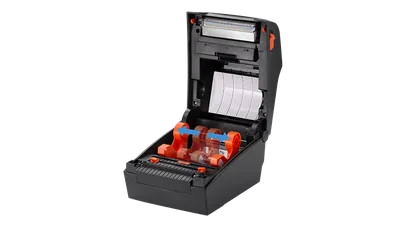

- Adjustable media guide and a holder

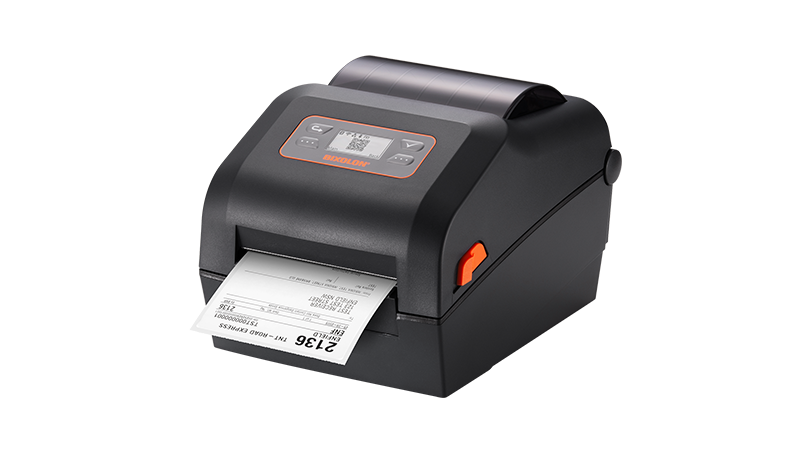

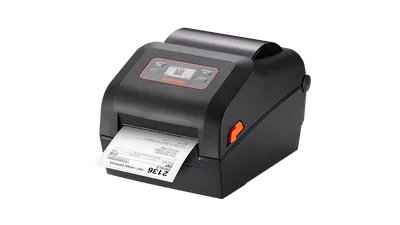

- Compact clamshell design with intuitive menu buttons and optional LCD Display
- Suitable for both 1/2-inch and 1-inch core ribbon (74 m and 300 m)
- Field-installable Peeler and Auto Cutter
- Compatible with label design software: BIXOLON€™s Label Artist and Seagull's BarTender
- Twin Function supported: Copy printer setting and data by USB
- SNMP enabled WLAN functionality
- XPM & XCM - Web-based printer management software and connection app
Product Specifications
| Print Method | Thermal Transfer, Direct Thermal |
| Print Speed | XD5-40d: Up to 7 ips (178 mm/sec) XD5-43d: Up to 5 ips (127 mm/sec) XD5-40t: Up to 6 ips (152 mm/sec) XD5-43t: Up to 4 ips (102 mm/sec) |
| Print Resolution | XD5-40d, 40t : 203 dpi XD5-43d, 43t : 300 dpi |
| Print Width | XD5-40t: Up to 108 mm XD5-43t: Up to 105.7 mm |
| Print Length | Up to 1,000 mm |
| Sensor | Transmissive (Fixed) Reflective (Adjustable) Head Open |
| Media Type | Gap Black Mark Notch Continuous Fan-Fold |
| Media Width | 15 - 118 mm |
| Media Roll Diameter | Up to 127 mm |
| Media Thickness | 0.06 - 0.20 mm |
| Supply Method | Easy Paper Loading |
| Inner Core | 25.4 - 38.1mm |
| Ribbon Type | Wax Wax / Resin Resin Outside |
| Ribbon Width | 33 - 110 mm |
| Ribbon Length | Up to 300 m |
| Core Inner Diameter | 25.4 mm, 12.7 mm |
| Emulation | SLCS, BPL-Z (ZPLII), BPL-E (EPL) |
| Driver / Utility | Windows Driver (Europlus / Seagull) Linux / Mac CUPS Driver Virtual COM USB / Ethernet Driver Utility Program OPOS/JPOS Driver Bartender Ultralite for BIXOLON Label Artist-II SAP Device Driver |
| Application | Label Artist Mobile (Android, iOS) mPrint App (Android, iOS) mPrint Server (Windows, iOS, aOS) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| XD5-40DDEK | XD5-40D Direct Thermal 4" Label Printer, 203dpi, USB, USB Host, RS232 & Ethernet interfaces, Peeler | $617.38 | Add to Cart | |
| XD5-40TOEWK | XD5-40T. Thermal Transfer Label printer, 203dpi, 4" print width, LCD display, USB, Serial, Ethernet & WIFI interfaces | $870.51 | Add to Cart | |
| XD5-43TOEWK | XD5-43T. Thermal Transfer Label printer, 300dpi, 4" print width, LCD display, USB , Serial, Ethernet & WIFI interfaces | $954.25 | Add to Cart | |
| XD5-40DCEWK | XD5-40D. Direct Thermal Label printer, 203dpi, 4" print width, USB, Serial, Ethernet & WIFI interfaces, Cutter | $823.63 | Add to Cart | |
| XD5-40DCEBK | XD5-40D. Direct Thermal Label printer, 203dpi, 4" print width, Cutter, USB, Serial | $796.13 | Add to Cart | |
| XD5-40TEK | XD5-40T. Thermal Transfer 4" Label Printer, 203dpi, USB, USB Host, RS232 & Ethernet interfaces | $589.88 | Add to Cart | |
| XD5-40DDK | XD5-40D. Direct Thermal 4" Label Printer, 203dpi, USB, USB Host interfaces, Peeler | $515.63 | Add to Cart | |
| XD5-40DEK | XD5-40D. Direct Thermal 4" Label Printer, 203dpi, USB, USB Host, RS232 & Ethernet interfaces | $515.63 | Add to Cart | |
| XD5-40DK | XD5-40D. Direct Thermal 4" Label Printer, 203dpi, USB, USB Host interfaces | $451.00 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| POSMarket Label Rolls | Various label rolls to suit thermal and ink roller printers. | $3.73 | View Product |
| POSMarket Label Printer Ribbons | POS Market has a wide range of quality products designed and manufactured to meet Australian specifications including Label printer Ribbons. | $2.37 | View Product |
| POSMarket Printer Cable USB A/B 3M | Generic Printer Cable USB A/B 3M | $CALL | |
| Bixolon XD3, XD5 PEELER | Peel Off Module To Suit Bixolon XD3/XD5 Series | $74.25 | View Product |
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
| Filename | Size | ||
|---|---|---|---|
 |
Bixolon XD5-40 brochure | 2MB | Download |
