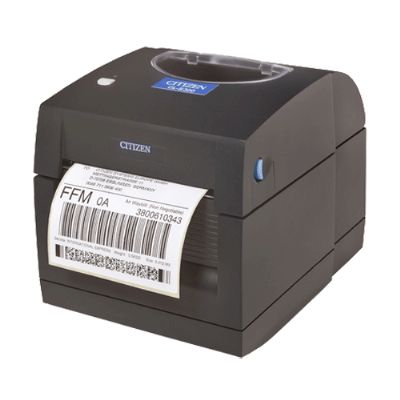

Citizen CL-S300

POSMarket SKU: Z1842

This product has been replaced by the Citizen CL-E300. If you need this particular model rather than the replacement please contact one of our sales team on 1300 737 998.

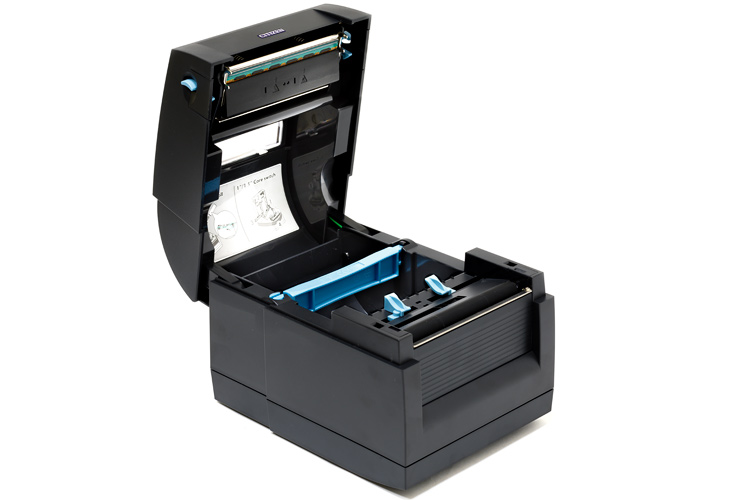

The CL-S300 packs all the essential features required for regular, medium volume label printing into a compact, robust case. The Windows Graphical Device Interface offers simple plug and play printing from any Windows application, while Citizens Hi-Open case enables easier media loading without increasing the units footprint.

Product Rating
Product Overview
  • Direct Thermal Label Printer
  • Easy set-up and media loading
  • Integrated power supply
  • Label dispenser for easy print, peel and apply as option
  • Front exit - prevents damage from moisture or foreign objects
  • Variable paper width - 1 inch (25.4 mm) - 4.6 inches (118.1 mm)
  • Quick and easy media changing - drop-in paper loading
  • Paper thickness up to 0.200mm
  • Fast print out - 4 inches per second (100 mm per second)
  • Large media capacity - holds rolls up to 5 inches (127 mm)
  • Low space requirement - integrated power supply enables clean work station
Product Specifications
Printing WidthMax. 4.25 inches, 108 mm
Printing LengthMin. 38.1 mm
Dot Pitch8 x 8 dots / mm (203 dpi)
Printing Speed (Max.)Max. 102 mm/sec
FontResident Bitmap Fonts:
6, 8, 10, 12, 14, 18, 24, 30, 16x26 & OCR A&B
Bitmap fonts 90, 180 and 270° rotatable, Single Characters 90, 180 and 270 Degree rotatable
Bitmap fonts 8 times expandable in horizontal and vertical directions
Scalable fonts: 90, 180 and 270 rotatable
Character Table/Code PagesCODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257
Unicode UTF8, UTF16
Bar-code TypeN/A, uses Windows Graphical Interface,
Barcodes need to be printed from windows driven application
Paper feed methodFriction Feed
Media TypeContinues Form, Gap Labels, Black Mark Sensing and punch hole sensing
Label length set by auto sensing or programming
Media widthMin. 25.4 mm to Max. 118 mm
Paper Roll DiameterMax 127 mm with 25.4/38.1mm Core
Media ThicknessMin. 0.06 mm to Max. 0.2 mm
Auto CutterN/A
Indicators/Controlsone Tri-Colour LED
Function key: FEED
Emulation
CPU32 Bit RISC CPU
MemoryRAM (Standard Memory) 16.0 KB Total
Flash (Non-Volatile Memory) 64.0 KB Total, 4.0 KB available to user
SensorsFixed transmissive sensor
Reflective sensor, Central Aligned
Label gap and Black Mark
InterfacesUSB Device
Driver availableWIN 8, WIN 7, WIN 2000, WIN Vista, WIN XP, WIN Server 2003/2008/2012
DLL: WIN 2000, XP & Vista
Software UtilitiesBartender Ultralite
Power SupplyAuto Switching 100-240V 50/60Hz.
Power ConsumptionMax 1.6A
External Dimensions (WxDxH)168 x 222 x 178 mm
Weight2.0 Kg
Operating EnvironmentTemperature: 5 to 40 Degree C
Humidity: 30 to 85% (non-condensing)
Storage EnvironmentTemperature: -20 to 50 Degree C
Humidity: 10 to 90% (non-condensing)
EMC/Safety StandardsCE(EMC), FCC Class A, CB and CCC, UL, c-UL, C-tick
ModelDescriptionPriceStock
KP12-UEDGXX CL-S300 Direct Thermal Label Printer, USB Interface, Black $429.76
Call
 Add to Cart
ModelDescriptionPrices From
Goodson CAB-PRUSB USB 2.0 USB 2.0 A to B Cable $6.34 View Product
Goodson IEC-C13 Appliance Lead 2m (Kettlecord) Goodson IEC-C13 Appliance Lead 2m (Kettlecord) $12.38 View Product
Seagull Scientific BARTENDER AUTO With BarTender, you get improved design quality, reduced label maintenance, maximized printing performance and the ability to remain compliant with changing standards. $5.59 View Product
Seagull Scientific BARTENDER ENT - APP BarTender Enterprise - Application $1.80 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document Citizen CLS300 Datasheet 132KB Download
PDF Document Citizen CLS300 Users Manaul 2MB Download
