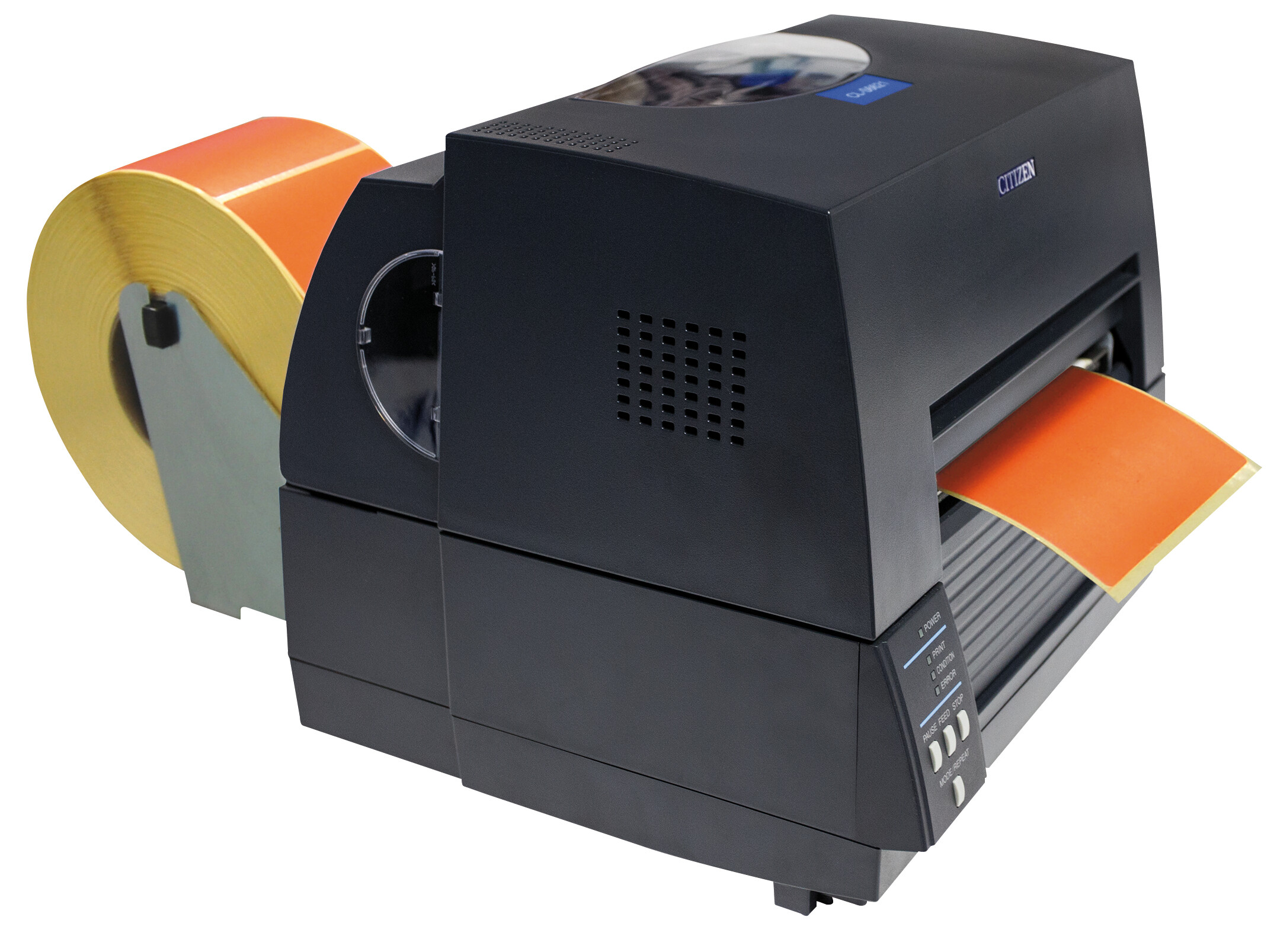

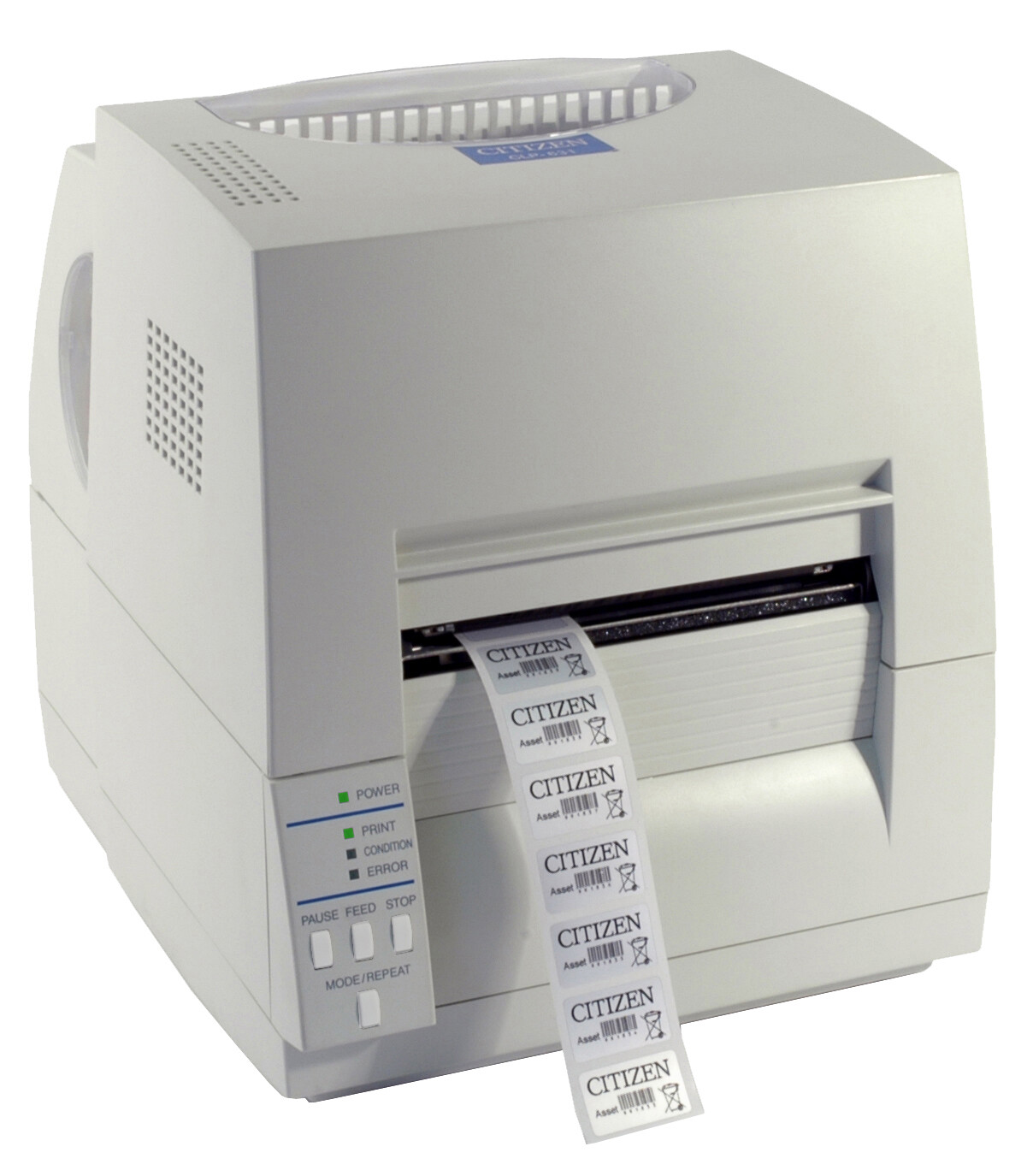

Citizen CL-S621
POSMarket SKU: Z1846
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.
The CL-S621 is a precision engineered, fast and easy-to-use unit that includes all the capabilities of the CL-S521 plus the option to print in both direct thermal and thermal transfer modes. The printer also features Citizens Hi-Lift metal mechanism and the innovative ARCP anti-wrinkle and automatic tensioning system.
Product Overview
- Thermal Transfer Technology
- Zebra and Datamax auto-sensing emulation detection
- Powerful 32-Bit RISC processor
- Thermal transfer or direct thermal printing
- CLS621: 203 dpi CLS631: 300 dpi
- 360-meter ribbon
- Standard and paediatric medical wristband capable
- Metal Hi-Lift print mechanism
- Standard internal parallel, serial and USB interfaces
- Optional internal Parallel or Ethernet interfaces are available.
- Internal 5-inch (125mm) media capacity
- Ships with Windows 2000, XP, Vista, and Windows 7 drivers
- Active Ribbon Control and Positioning System (ARCP)
- Internal power supply
- Label-making software included
Product Specifications
| Printing Method | Direct Thermal and Thermal Transfer |
| Printing Width | Max. 104 mm |
| Printing Length | Max. 812.8 mm |
| Dot Pitch | 8 x 8 dots / mm (203 dpi) |
| Printing Speed (Max.) | Max. Thermal Transfer - 4ips. Max. Direct thermal - 6ips |
| Font | 9 fixed pitch, 2 proportional font. |
| Character Table/Code Pages | See User Manual |
| Bar-code Type | Code 3 of 9,UPC_A,UPC-C, Interleaved 2of5, Code 128,EAN-13,EAN-8,HIBC, CODABAR(NW-7),Plessey,Int2of5,CASE CODE,Code93,ZIP, UPC2DIG ADD, UPC5DIG ADD, UCC/EAN128(for K-MART), RandomWeight, Telepen,FIM,UPS Maxicode, PDF-417, Data Matrix, and QR code. |
| Paper feed method | Friction Feed |
| Media Type | Roll, fanfold (Continuous media, die-cuts media,) |
| Media width | Min. 19.5 mm to Max. 118 mm |
| Paper Roll Diameter | Max 127 mm with 25.4 to 76 mm Core |
| Media Tickness | Min. 0.0635 mm to Max. 0.254 mm |
| Auto Cutter | Optional Cutter |
| Indicators/Controls | Power/Error LED (Green/Red) Function keys: FEED, STOP, PAUSE, Buzzer Power Switch |
| Emulation | Datamax I-Class & DMX400 Programming language Zebra programming language ZPL-II Auto detect |
| CPU | 32 Bit RISC CPU |
| Memory | RAM 16MB total, 1.0 MB available for use FLASH 4MB total, 1.0MB available for use |
| Sensors | Transparent sensor, Reflective sensor& Label peeling sensor (if optional Peeler is used) |
| Interfaces | Standard with USB 1.1 (Full speed) & RS-232C interface Optional Ethernet or Paralllel IEEE1284 (compatible, Nibble, ECP mode) or Wireless Lan. |
| Driver available | Drivers by Seagull |
| Software Utilities | Bartender Ultralite |
| Power Supply | Internal 200-240V 1.5A 50/60Hz |
| Power Consumption | Max. 1.5A |
| External Dimensions (WxDxH) | 231 x 289 x 270 mm |
| Weight | 4.5 Kg approx. |
| Operating Environment | Temperature: 0 to 40 °C Humidity: 30 to 80% (non-condensing) |
| Storage Environment | Temperature: -20 to 60 °C Humidity: 5 to 85% (non-condensing) |
| EMC/Safety Standards | UL, C-UL, FCC: CLASS A, CE, C-Tick/RCM |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| JM40-221BX | CL-S621 Thermal Transfer Label Printer, USB & Serial interface, Black | $858.00 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| POSMarket Label Rolls | Various label rolls to suit thermal and ink roller printers. | $3.73 | View Product |
| POSMarket Label Printer Ribbons | POS Market has a wide range of quality products designed and manufactured to meet Australian specifications including Label printer Ribbons. | $2.37 | View Product |
| Goodson CAB-PRUSB USB 2.0 | USB 2.0 A to B Cable | $6.34 | View Product |
| Zebra Software License Printer Enterprise | Software License Printer Enterprise | $1,313.07 | View Product |
| Goodson IEC-C13 Appliance Lead 2m (Kettlecord) | Goodson IEC-C13 Appliance Lead 2m (Kettlecord) | $12.38 | View Product |
| POSMarket Serial Printer Cable | RS232 serial Printer Cable | $19.80 | View Product |
| Seagull Scientific BARTENDER AUTO | With BarTender, you get improved design quality, reduced label maintenance, maximized printing performance and the ability to remain compliant with changing standards. | $3.47 | View Product |
| Seagull Scientific BARTENDER ENT - APP | BarTender Enterprise - Application | $1.80 | View Product |
| Citizen Peeler CSP/ CLS series | Peeler for the CLP/CLS 521/621/631; CL-S700/703 series printer | $405.90 | View Product |
| Citizen Autocutter CLS5xx/ 6xx | Autocutter for the CLS5xx/ 6xx | $420.75 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
CLS521 621 datasheet | 132KB | Download |
|
CLS621 631 Users Manual | 3MB | Download |
